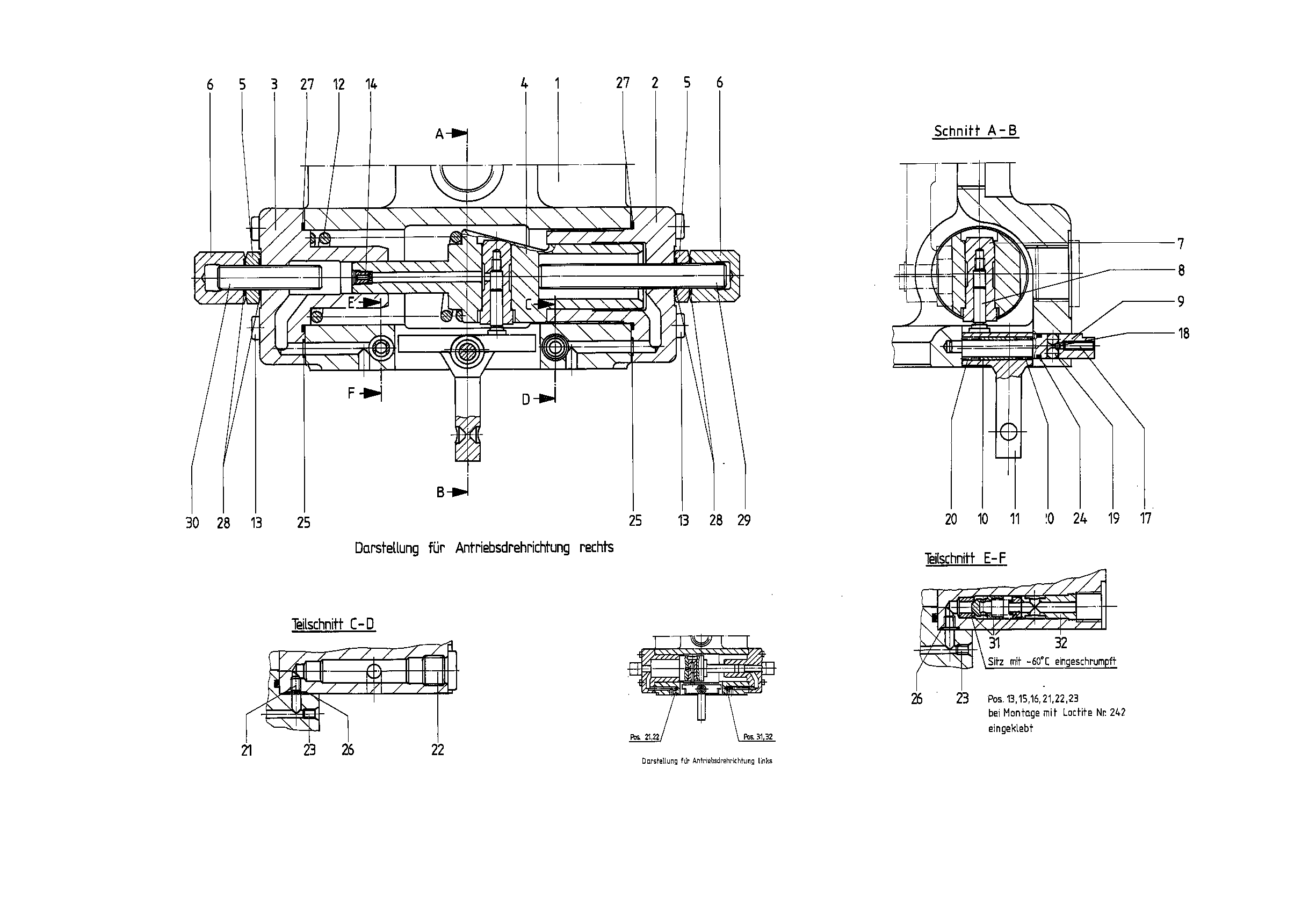

Assembly
ADJUSTING PIECER910908000
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910908003 | PUMP HOUSING | 1 | ||
| R910945978 | PISTON HOUSING | 1 | ||
| R910945951 | PISTON HOUSING | 1 | ||
| R902531055 | ADJUSTING PISTON | 1 | ||
| R910903390 | NUT | 2 | ||
| R910903349 | CAP NUT | 2 | ||
| R910903146 | BUSHING | 1 | ||
| R902541214 | PISTON PAD | 1 | ||
| R910903144 | ECCENTRIC PIN | 1 | ||
| R910903147 | SPACER SLEEVE | 1 | ||
| R910905244 | LEVER | 1 | ||
| R910943109 | COMPRESSION SPRING | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 8 | ||
| R910836761 | NOZZLE | 1 | ||
| R910977212 | SETSCREW | 1 | ||
| R910199001 | BALL | 1 | ||
| R910150282 | BALL | 2 | ||
| R910903156 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| R910678899 | SETSCREW | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910514543 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 2 | ||
| R910942134 | R-RINGD | 2 | ||
| R910800379 | O-RINGD | 2 | ||
| R910515124 | O-RINGD | 4 | ||
| R902519566 | STUD BOLT | 1 | ||
| R902519539 | STUD BOLT | 1 | ||
| R910906577 | CHECK VALVE INSERT | 1 | ||
| R910906687 | BUSHING | 1 |
