Assembly

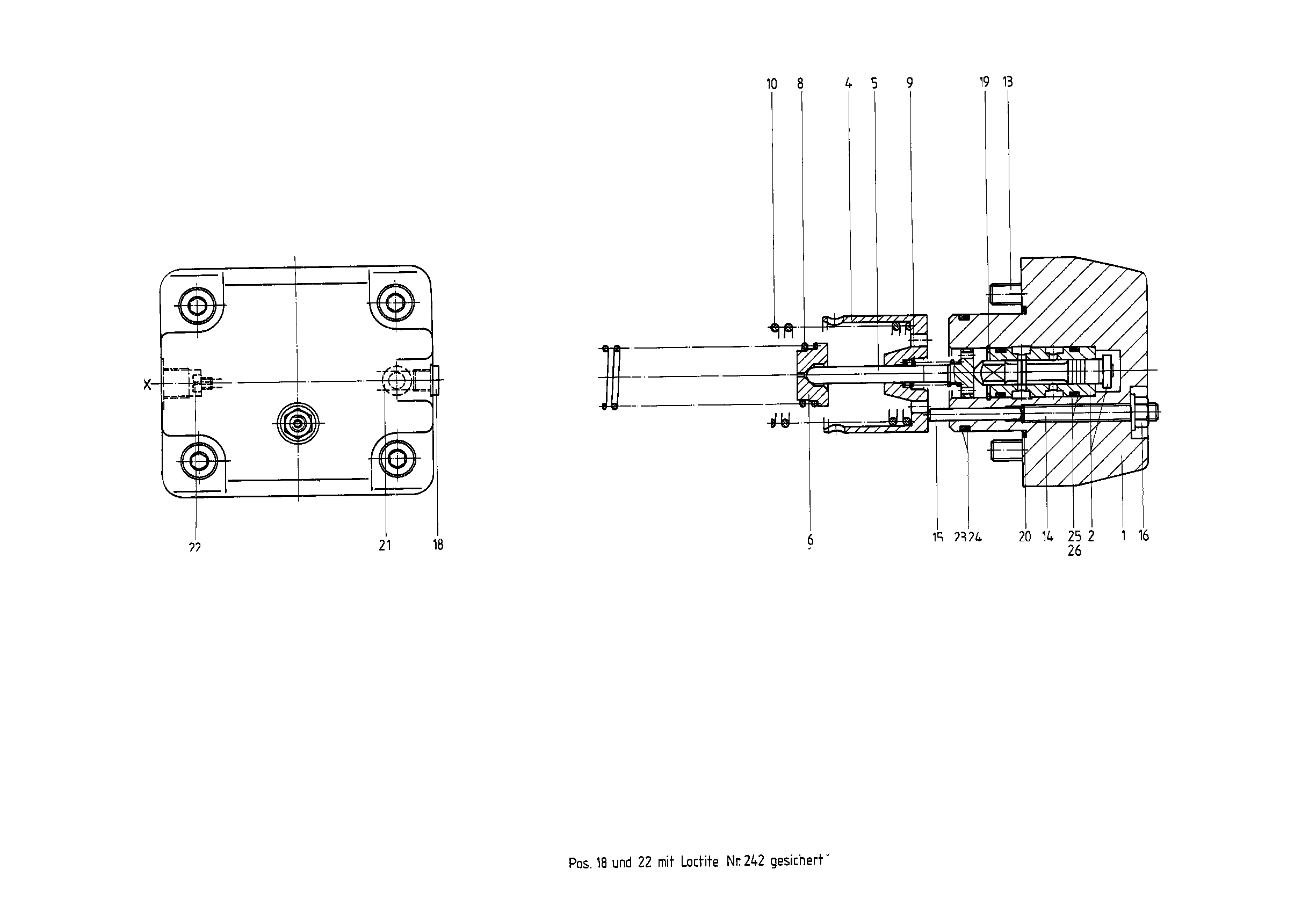

CONTROL PARTR910908642
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910908557 | CONTROL HOUSING | 1 | ||
| R910900213 | CONTROL PISTON | 1 | ||
| R910900221 | ADJUSTING BUSHING | 1 | ||
| R910908493 | SPRING BOLT | 1 | ||
| R910908494 | SPRING DISK | 1 | ||
| R910908496 | COMPRESSION SPRING | 1 | ||
| R910900224 | COMPRESSION SPRING | 1 | ||
| R910900226 | COMPRESSION SPRING | 1 | ||
| R910120308 | SOCKET HEAD CAP SCREW | 4 | ||
| R910663808 | SETSCREW | 1 | ||
| R910900227 | STRAIGHT PIN | 1 | ||
| R910516082 | DUMMYD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R910908498 | RETAINING RING | 1 | ||
| R910513598 | O-RINGD | 1 | ||
| R910513458 | O-RINGD | 1 | ||
| R910100579 | NOZZLE | 1 | ||
| R910534528 | O-RINGD | 1 | ||
| R910907777 | BACKUP RINGD | 1 | ||
| R910149624 | O-RINGD | 2 | ||
| R910907778 | DUMMYD | 2 |
