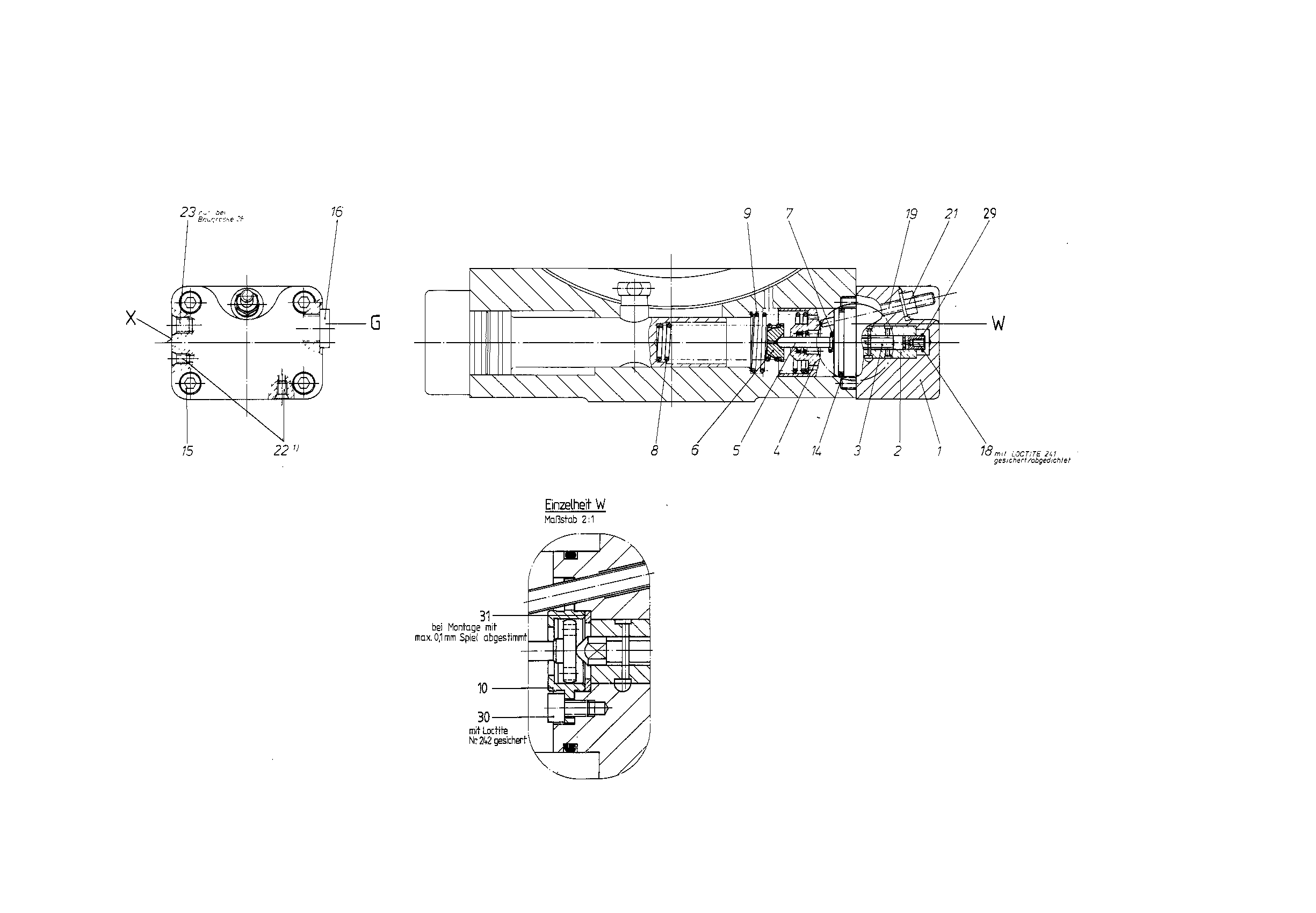

Assembly
CONTROL PARTR910909015
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910801750 | CONTROL HOUSING | 1 | ||
| R910909018 | CONTROL SLEEVE | 1 | ||
| R910909019 | CONTROL PISTON | 1 | ||
| R910909020 | ADJUSTING BUSHING | 1 | ||
| R909418761 | SPRING BOLT | 1 | ||
| R910909021 | SPRING DISK | 1 | ||
| R910909022 | COMPRESSION SPRING | 1 | ||
| 8 | R910909023 | COMPRESSION SPRING | 1 | |
| R910801627 | COMPRESSION SPRING | 1 | ||
| 10 | R910924892 | STOP BUSHING | 1 | |
| 14 | R910513571 | O-RINGD | 1 | |
| R910109509 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| 18 | R909083488 | SETSCREW | 1 | |
| R910545422 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910977232 | RETAINING RING | 1 | ||
| R910119512 | SOCKET HEAD CAP SCREW | 4 | ||
| 31 | R910489204 | SUPPORTING DISC | 1 |
