Assembly

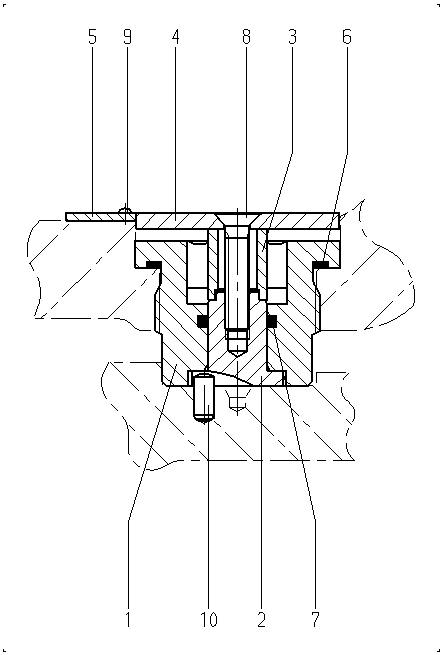

INDICATING DEVICER910909629
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902538350 | STUD BOLT | 1 | ||
| R910909556 | DRIVER PIVOT | 1 | ||
| R910909548 | DISTANCE PIPE | 1 | ||
| R910909513 | POINTER | 1 | ||
| R910908854 | DIAL | 1 | ||
| R910415286 | SEAL RINGD | 1 | ||
| R910963003 | QUAD RINGD | 1 | ||
| R910928615 | COUNTERSUNK-HEAD SCREW | 1 | ||
| R910911771 | STRAIGHT PIN | 1 |
