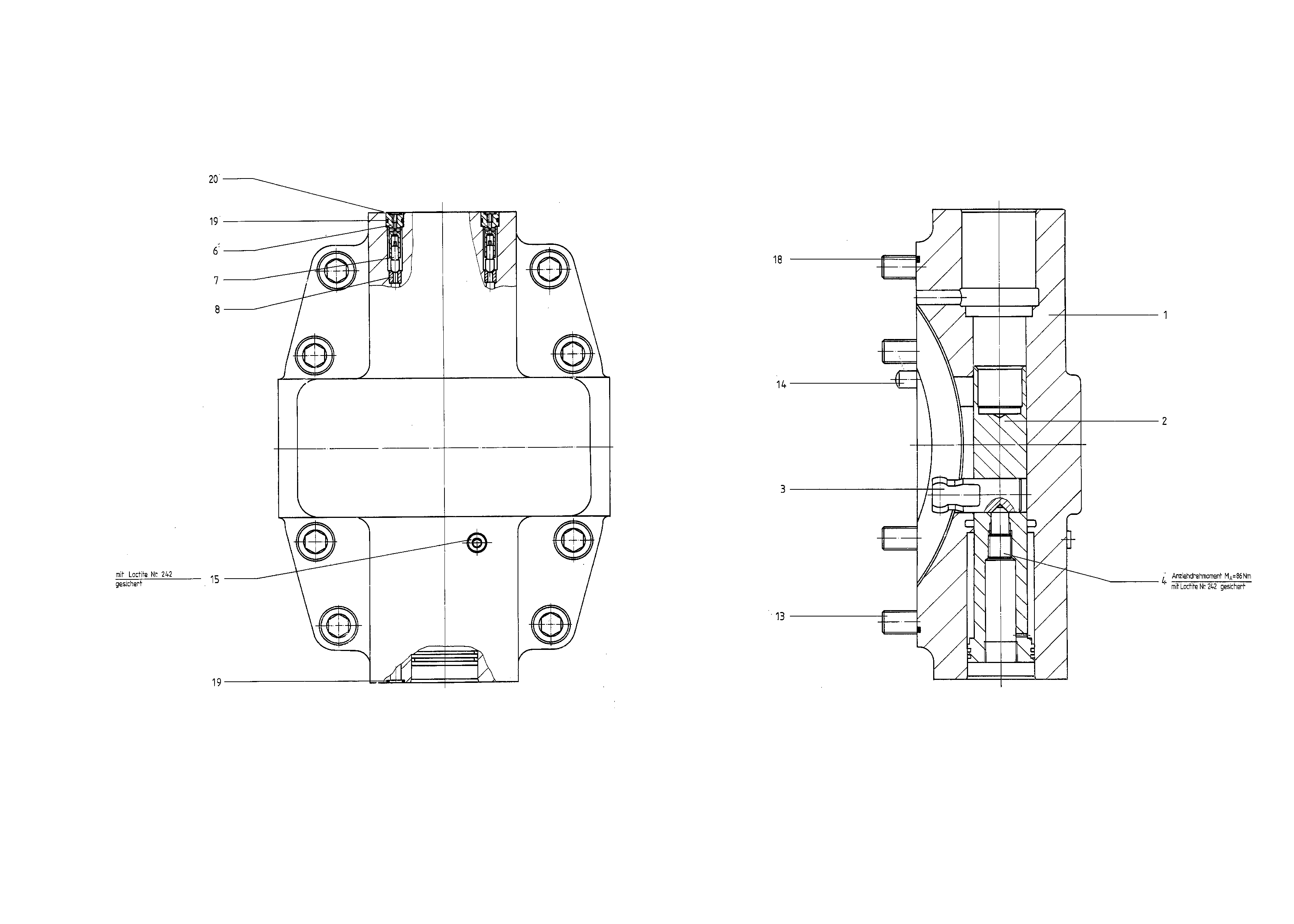

Assembly
ADJUSTING PIECER910912037
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910905252 | COVER PLATE | 1 | |
| 2 | R910912028 | POSITIONING PISTON | 1 | |
| 3 | R902413801 | POSITIONING STUD | 1 | |
| 4 | R910808989 | SETSCREW | 1 | |
| 6 | R910801624 | VALVE GUIDE | 2 | |
| 7 | R909426662 | BOLT | 2 | |
| 8 | R902209845 | BUSHING | 2 | |
| R910126411 | SOCKET HEAD CAP SCREW | 8 | ||
| R910910938 | STRAIGHT PIN | 2 | ||
| 15 | R909154024 | SCREW PLUGD | 1 | |
| R910905253 | O-RINGD | 1 | ||
| R910514543 | O-RINGD | 5 | ||
| R910977051 | O-RINGD | 2 |
