Assembly

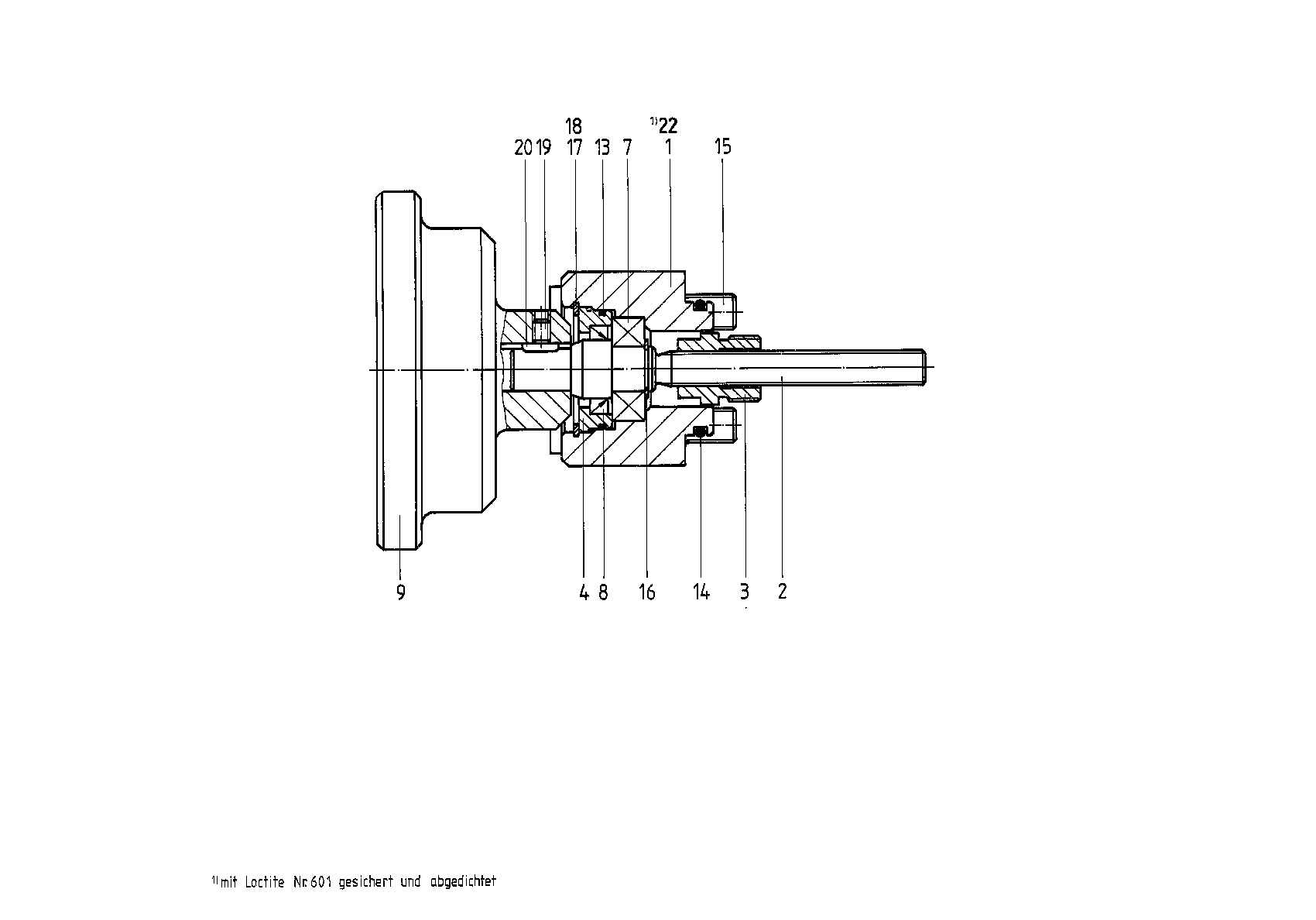

CONTROL PARTR910912038
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910912030 | CONTROL HOUSING | 1 | ||
| R910912033 | ADJUSTMENT SPINDLE | 1 | ||
| R910806692 | THREADED BUSHING | 1 | ||
| 4 | R910806706 | LOCKING RING | 1 | |
| 7 | R910806625 | DEEP-GROOVE BALL BEARING | 1 | |
| 8 | R910802765 | ROTARY SHAFT LIP SEAL | 1 | |
| 9 | R910843121 | HANDWHEEL | 1 | |
| 13 | R910513431 | O-RINGD | 1 | |
| 14 | R910103896 | O-RINGD | 1 | |
| R910120359 | SOCKET HEAD CAP SCREW | 4 | ||
| R910105759 | RETAINING RING | 1 | ||
| 17 | R910116033 | RETAINING RING | 1 | |
| 18 | R910126241 | SHIM RING | 3 | |
| 19 | R910100986 | SETSCREW | 1 | |
| 20 | R910103349 | PARALLEL KEY | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
