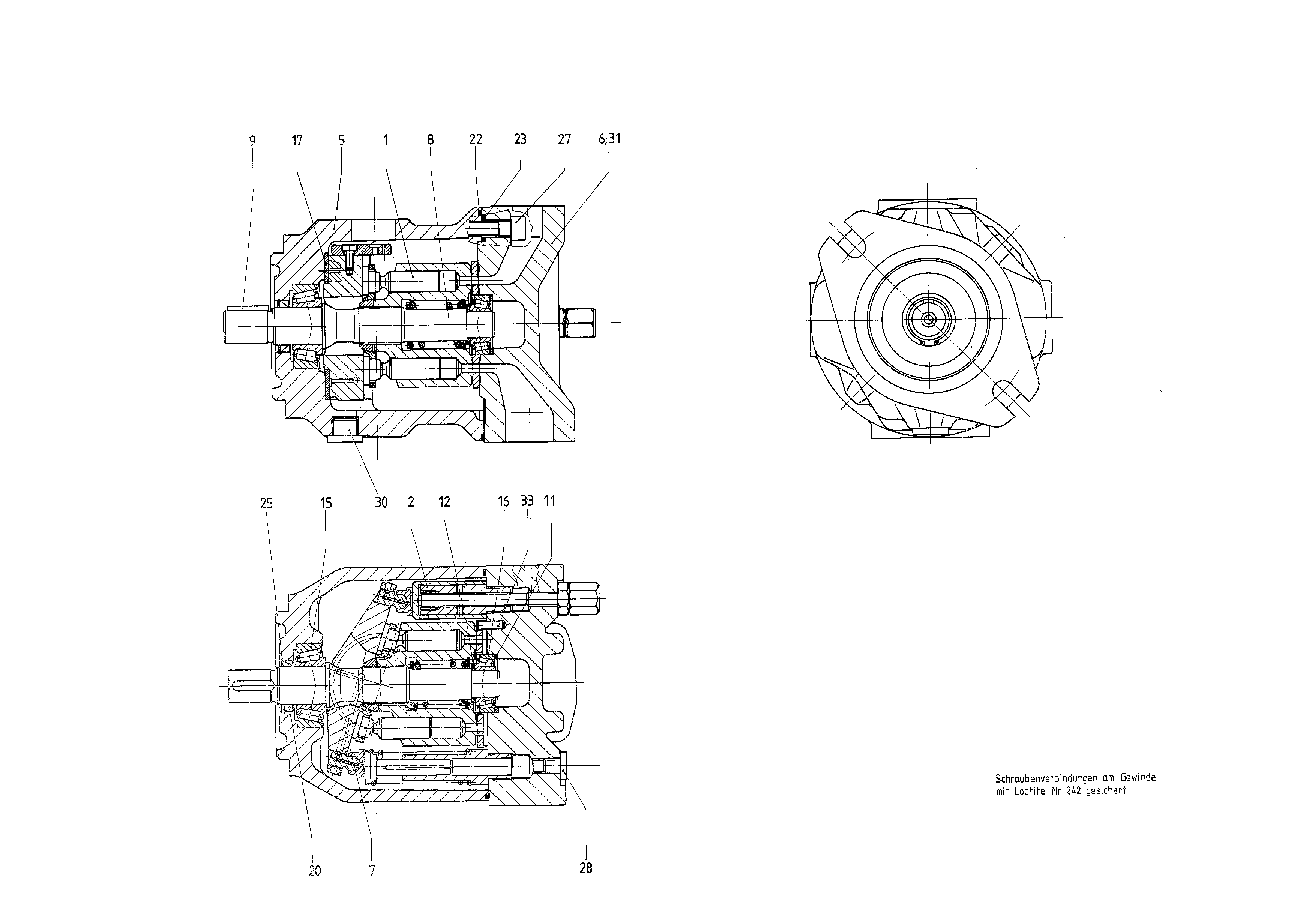

Assembly
BASE UNITR910913333
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439596 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R902538139 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| R902550219 | PUMP HOUSING | 1 | ||
| 6 | R910989771 | CONNECTION PLATE | 1 | |
| R910961003 | SWASH PLATE | 1 | ||
| 8 | R902415569 | DRIVE SHAFT | 1 | |
| 9 | R910125539 | PARALLEL KEY | 1 | |
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| 16 | R902438110 | TAPERED-ROLLER BEARING | 1 | |
| 17 | R910902778 | BEARING SHELL | 2 | |
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910730041 | O-RINGD | 1 | ||
| R913052108 | R-RINGD | 4 | ||
| 25 | R902403815 | RETAINING RING | 1 | |
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 |
