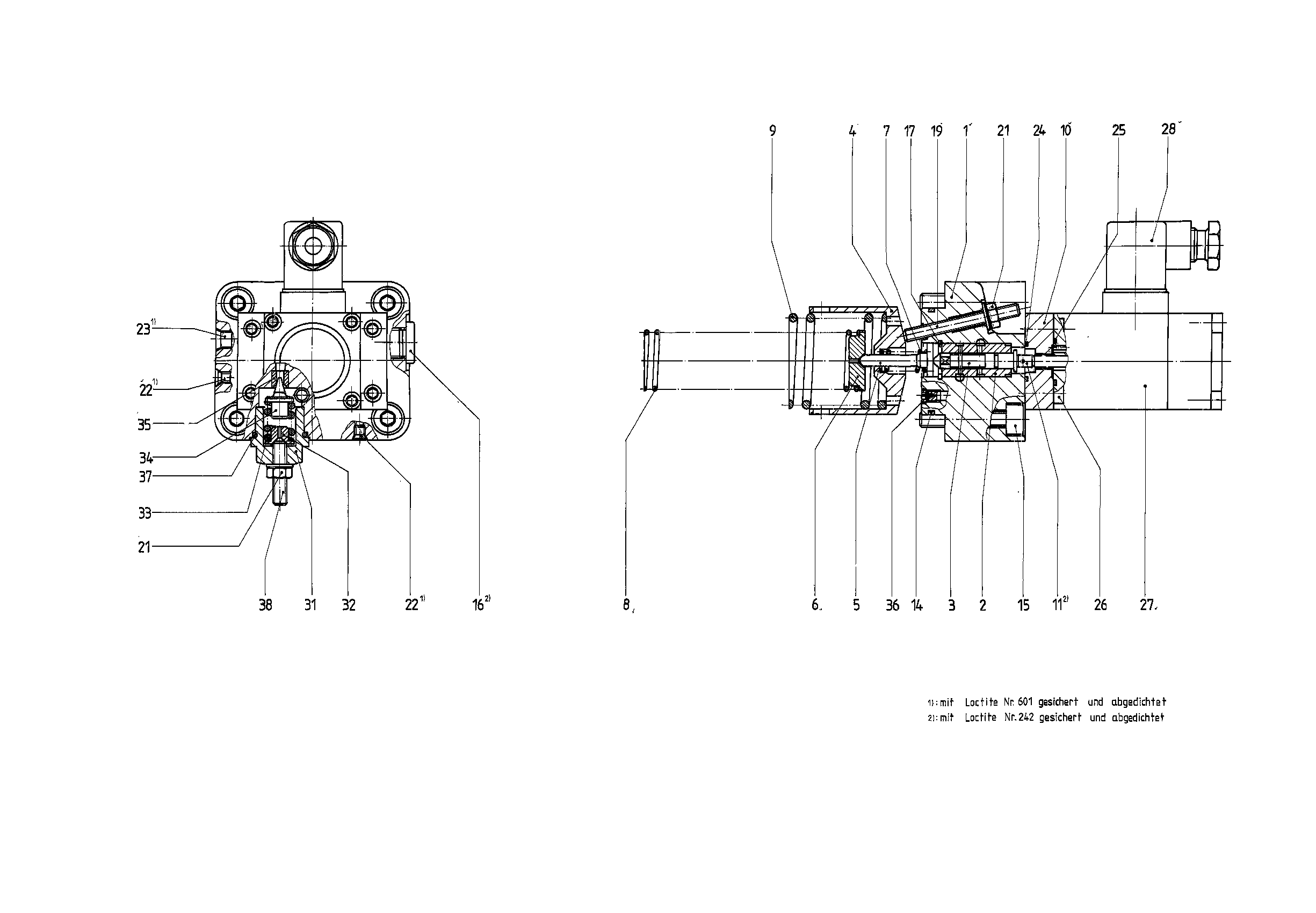

Assembly
CONTROL PARTR910914012
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910914014 | CONTROL HOUSING | 1 | ||
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909412266 | CONTROL PISTON | 1 | ||
| R910801595 | ADJUSTING BUSHING | 1 | ||
| R909418761 | SPRING BOLT | 1 | ||
| R910801587 | SPRING DISK | 1 | ||
| 7 | R910801625 | COMPRESSION SPRING | 1 | |
| 8 | R910801789 | COMPRESSION SPRING | 1 | |
| R910801627 | COMPRESSION SPRING | 1 | ||
| 10 | R910801605 | INTERMEDIATE PLATE | 1 | |
| 11 | R910801584 | STOP SCREW | 1 | |
| 14 | R910513571 | O-RINGD | 1 | |
| 15 | R910109509 | SOCKET HEAD CAP SCREW | 4 | |
| 16 | R909151979 | SCREW PLUGD | 1 | |
| 17 | R910114995 | RETAINING RING | 1 | |
| R910545422 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 2 | ||
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 24 | R910514993 | O-RINGD | 1 | |
| 25 | R910575046 | O-RINGD | 1 | |
| R910120111 | SOCKET HEAD CAP SCREW | 4 | ||
| R910803236 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R910802157 | SCREW PLUG | 1 | ||
| R910800376 | SPRING DISK | 1 | ||
| R910802164 | COMPRESSION SPRING | 1 | ||
| 34 | R910802163 | VALVE CONE | 1 | |
| 35 | R910802159 | BUSHING | 1 | |
| 36 | R910836761 | NOZZLE | 1 | |
| R910149624 | O-RINGD | 1 | ||
| R909154140 | SETSCREW | 1 |
