Assembly

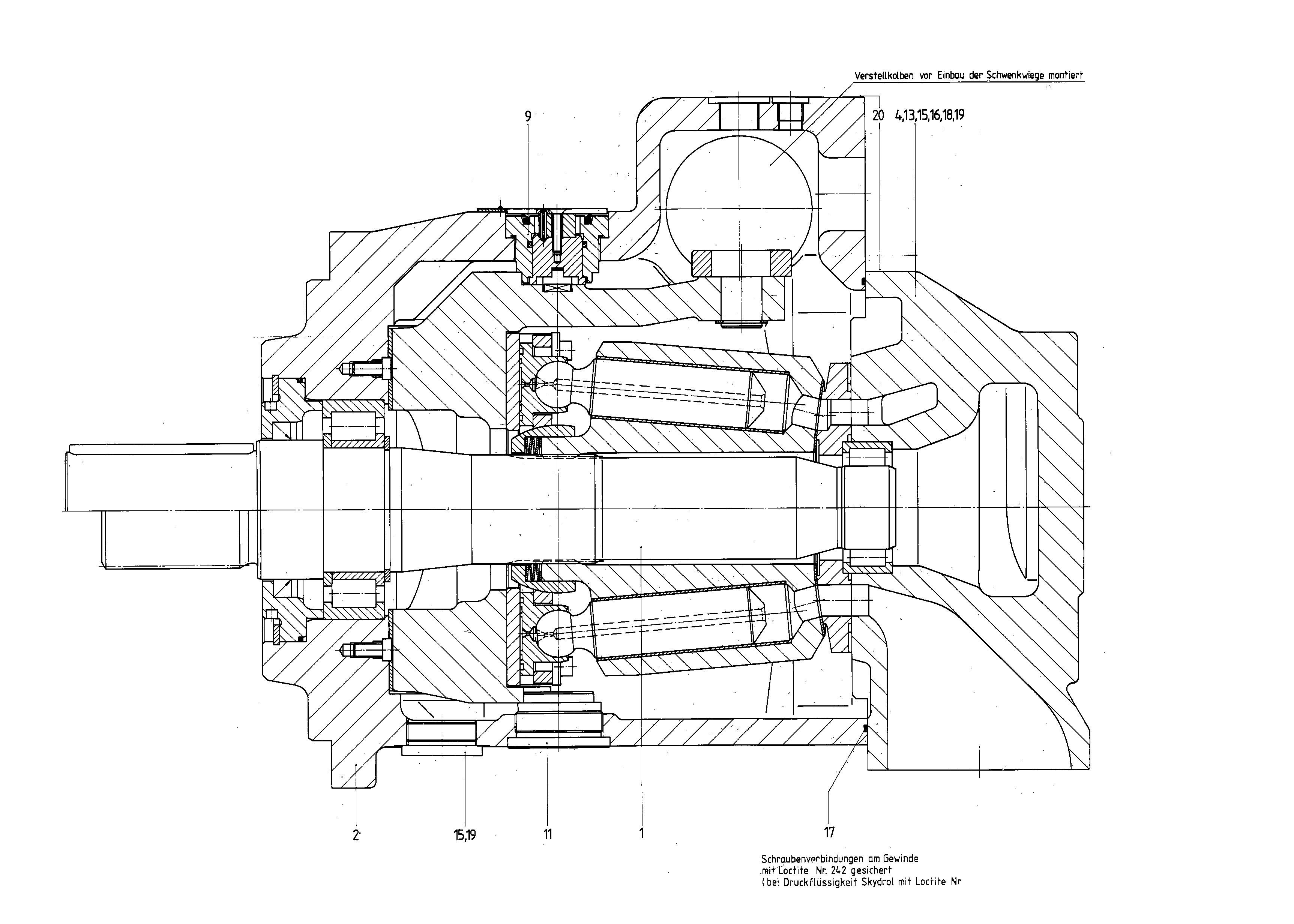

BASE UNITR910914801
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910914564 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910911860 | PUMP HOUSING | 1 | ||
| R910911597 | CONNECTION PLATE | 1 | ||
| R910919860 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R902544277 | STUD BOLT Assembly parts list →L | 1 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 8 | ||
| R902650283 | SCREW PLUG | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R910914695 | O-RINGD | 1 | ||
| R910514985 | O-RINGD | 2 | ||
| R910415375 | SEAL RINGD | 4 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 2 |
