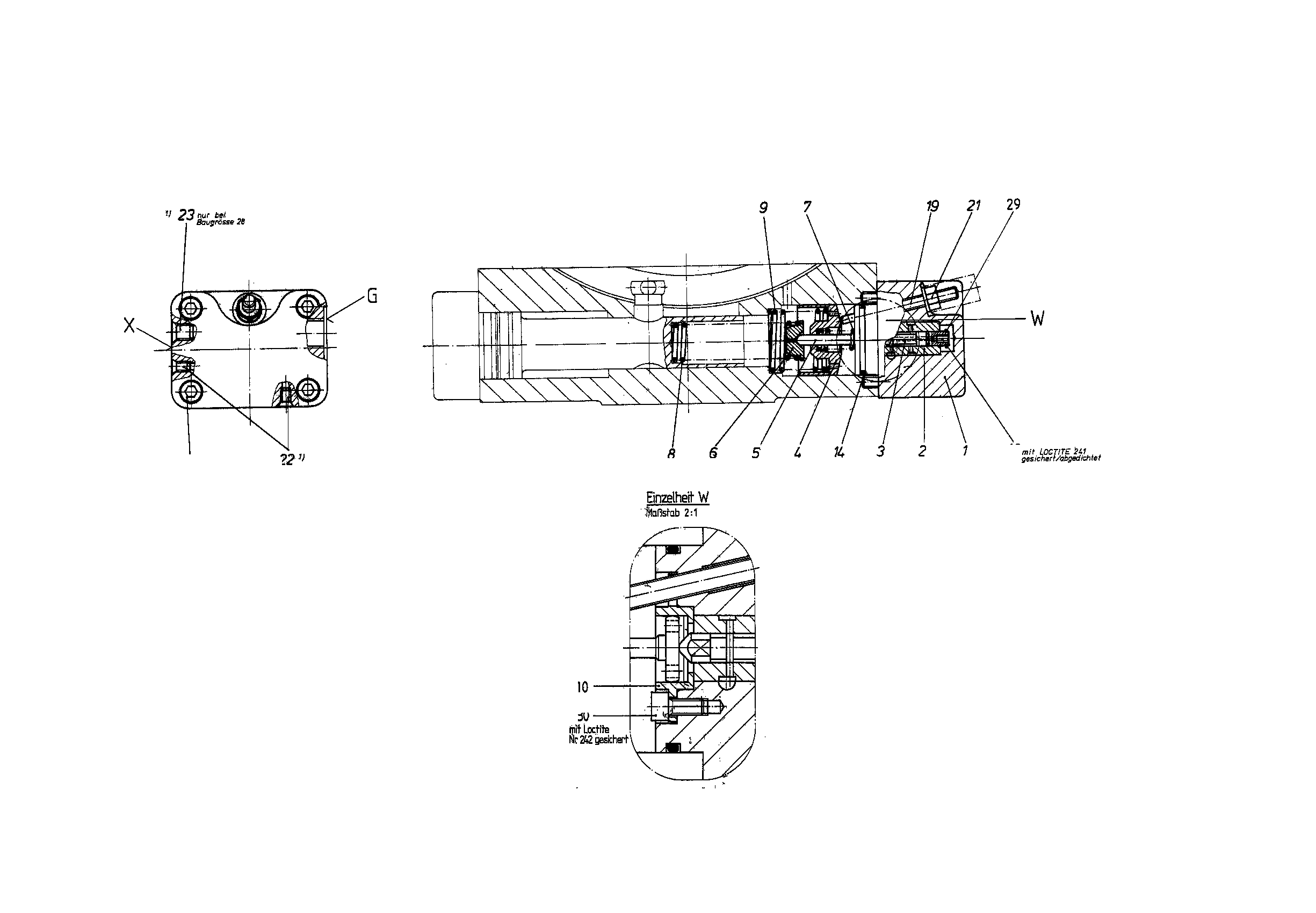

Assembly
CONTROL PARTR910915488
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910801460 | CONTROL HOUSING | 1 | |
| R910801808 | CONTROL SLEEVE | 1 | ||
| 3 | R910802216 | CONTROL PISTON | 1 | |
| R910801595 | ADJUSTING BUSHING | 1 | ||
| 5 | R909418761 | SPRING BOLT | 1 | |
| 6 | R910801592 | SPRING DISK | 1 | |
| R910801590 | COMPRESSION SPRING | 1 | ||
| 8 | R910802604 | COMPRESSION SPRING | 1 | |
| 9 | R910801627 | COMPRESSION SPRING | 1 | |
| R910924892 | STOP BUSHING | 1 | ||
| 14 | R910585238 | O-RINGD | 1 | |
| 15 | R910109509 | SOCKET HEAD CAP SCREW | 4 | |
| 18 | R909083488 | SETSCREW | 1 | |
| R910545422 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 23 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910977232 | RETAINING RING | 1 | ||
| 30 | R910119512 | SOCKET HEAD CAP SCREW | 4 |
