Assembly

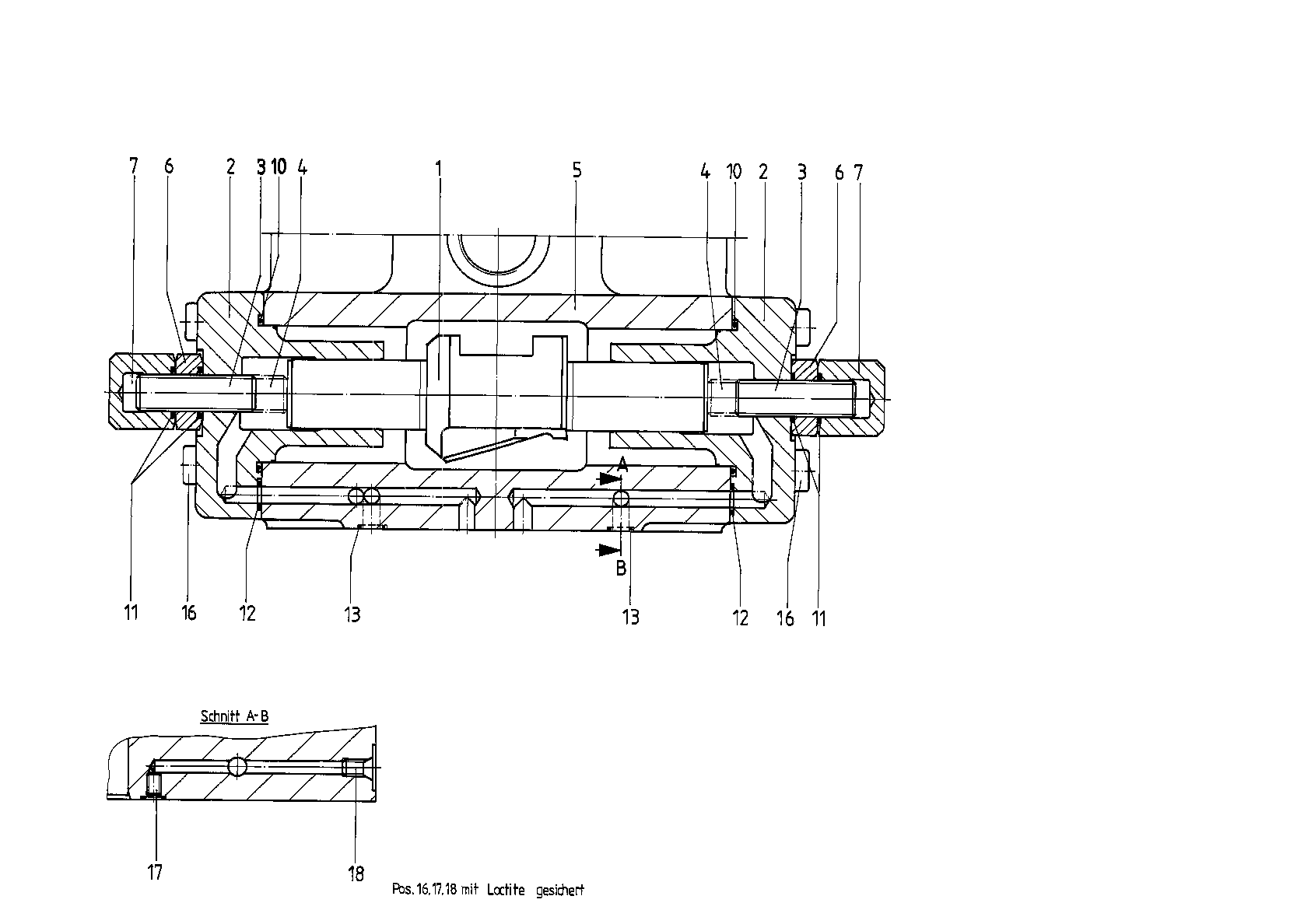

ADJUSTING PIECER910915638
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902530759 | ADJUSTING PISTON | 1 | |
| 2 | R910915228 | PISTON HOUSING | 2 | |
| 3 | R902519538 | STUD BOLT | 2 | |
| 5 | R910922438 | PUMP HOUSING | 1 | |
| R910903390 | NUT | 2 | ||
| 7 | R910903349 | CAP NUT | 2 | |
| 10 | R910800379 | O-RINGD | 2 | |
| 11 | R910515124 | O-RINGD | 4 | |
| R910942134 | R-RINGD | 2 | ||
| R910942134 | R-RINGD | 2 | ||
| 16 | R910231991 | SOCKET HEAD CAP SCREW | 8 | |
| 17 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 18 | — | DOUBLE BREAK-OFF PLUG | 1 |
