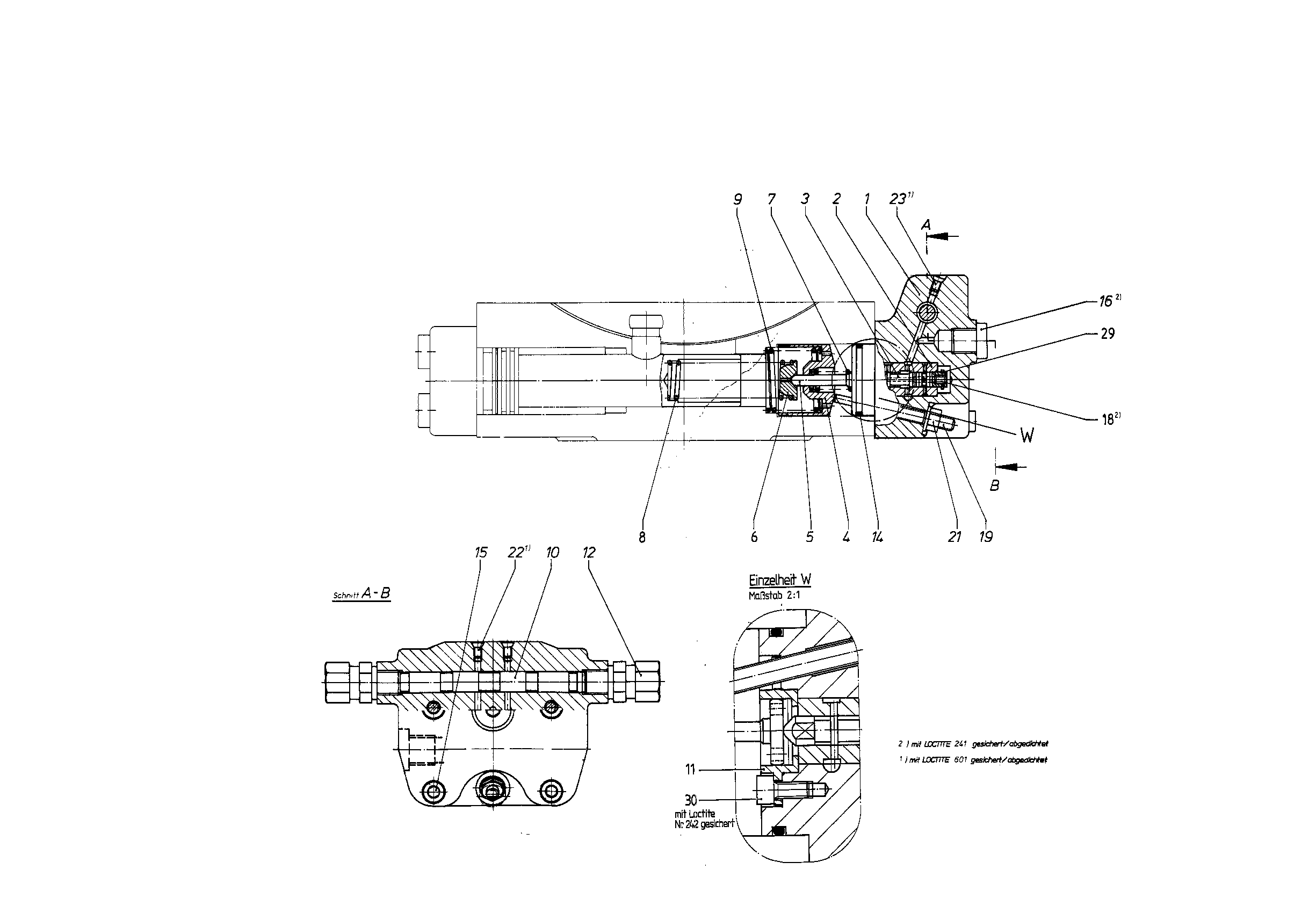

Assembly
CONTROL PARTR910917685
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910917688 | CONTROL HOUSING | 1 | ||
| 2 | R910801808 | CONTROL SLEEVE | 1 | |
| 3 | R910802216 | CONTROL PISTON | 1 | |
| R910801595 | ADJUSTING BUSHING | 1 | ||
| R909418761 | SPRING BOLT | 1 | ||
| 6 | R910801592 | SPRING DISK | 1 | |
| R910801590 | COMPRESSION SPRING | 1 | ||
| 8 | R910802604 | COMPRESSION SPRING | 1 | |
| 9 | R910801627 | COMPRESSION SPRING | 1 | |
| 10 | R910801580 | SLIDE | 1 | |
| 11 | R910924892 | STOP BUSHING | 1 | |
| 12 | R910801870 | THREADED REDUCING STUD | 2 | |
| 14 | R910585238 | O-RINGD | 1 | |
| R910109525 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157039 | SCREW PLUGD | 1 | ||
| 18 | R909083488 | SETSCREW | 1 | |
| R910801451 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 6 | |
| 23 | R900078091 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910977232 | RETAINING RING | 1 | ||
| R910119512 | SOCKET HEAD CAP SCREW | 4 |
