Assembly

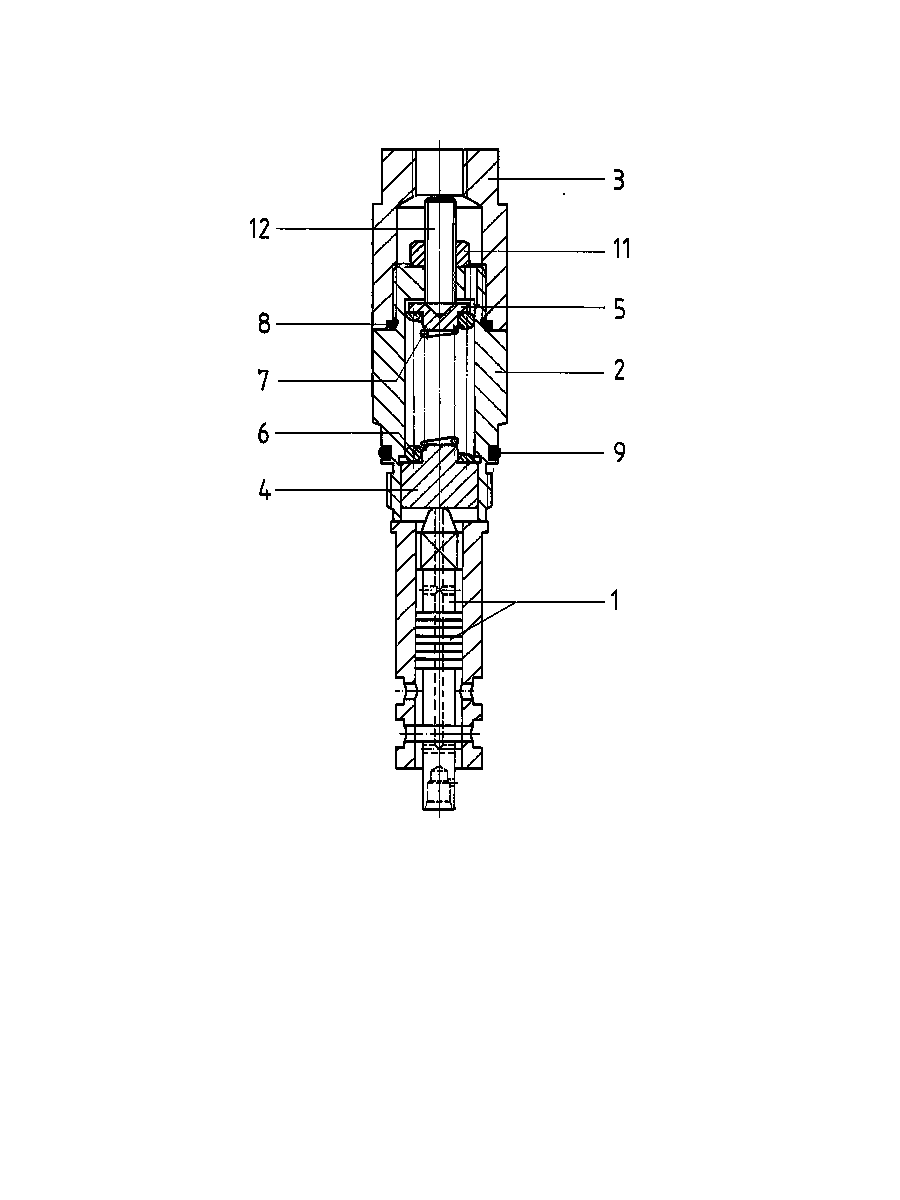

CONTROL PARTR910918565
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910918567 | CONTROL CONE | 1 | |
| 2 | R910918570 | THREADED FASTENER | 1 | |
| 3 | R910913053 | REDUCTION THREADED JOINT | 1 | |
| R910918909 | VALVE SPOOL | 1 | ||
| 5 | R902434097 | SPRING DISK | 1 | |
| 6 | R910912053 | COMPRESSION SPRING | 1 | |
| 7 | R910918622 | COMPRESSION SPRING | 1 | |
| 8 | R910515256 | O-RINGD | 1 | |
| 9 | R910513539 | O-RINGD | 1 | |
| R910933414 | HEXAGON NUT | 1 | ||
| R910925006 | SETSCREW | 1 |
