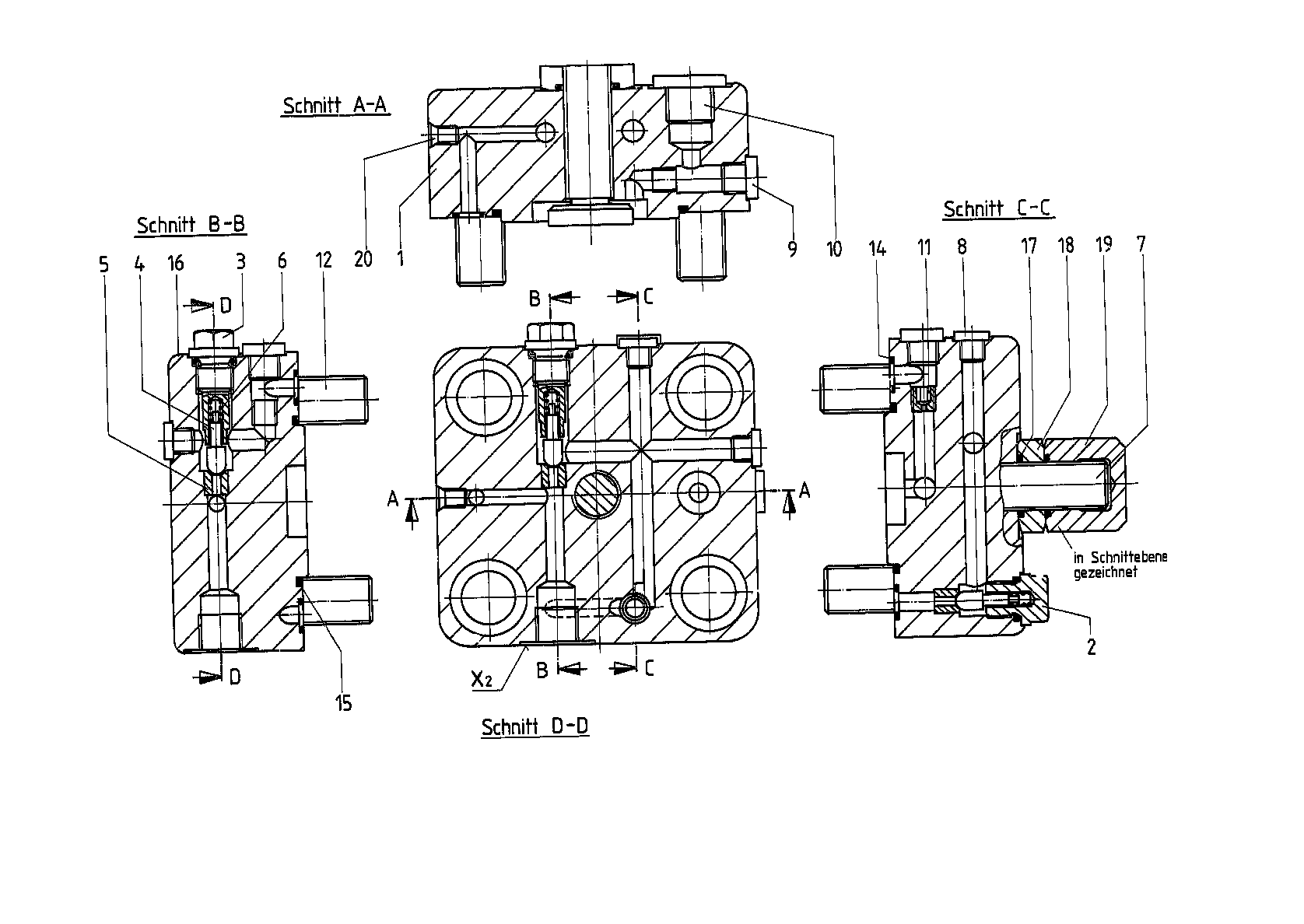

Assembly
COVERR910918594
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910918596 | COVER | 1 | |
| 2 | R910805823 | SCREW PLUG | 1 | |
| 3 | R910909488 | SCREW PLUG | 1 | |
| 4 | R909426662 | BOLT | 2 | |
| 5 | R910802973 | BUSHING | 2 | |
| 6 | R910806137 | COMPRESSION SPRING | 2 | |
| R910921036 | STOP | 1 | ||
| 8 | R909154024 | SCREW PLUGD | 3 | |
| 9 | R909153364 | SCREW PLUGD | 3 | |
| 10 | R909153816 | SCREW PLUGD | 1 | |
| 11 | R910578827 | THROTTLE SCREW | 1 | |
| 12 | R910389714 | SOCKET HEAD CAP SCREW | 4 | |
| 14 | R910514497 | O-RINGD | 5 | |
| 15 | R910342157 | O-RINGD | 1 | |
| 16 | R910513458 | O-RINGD | 2 | |
| 17 | R910827916 | O-RINGD | 2 | |
| 18 | R910903326 | NUT | 1 | |
| 19 | R910903327 | CAP NUT | 1 | |
| 20 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
