Assembly

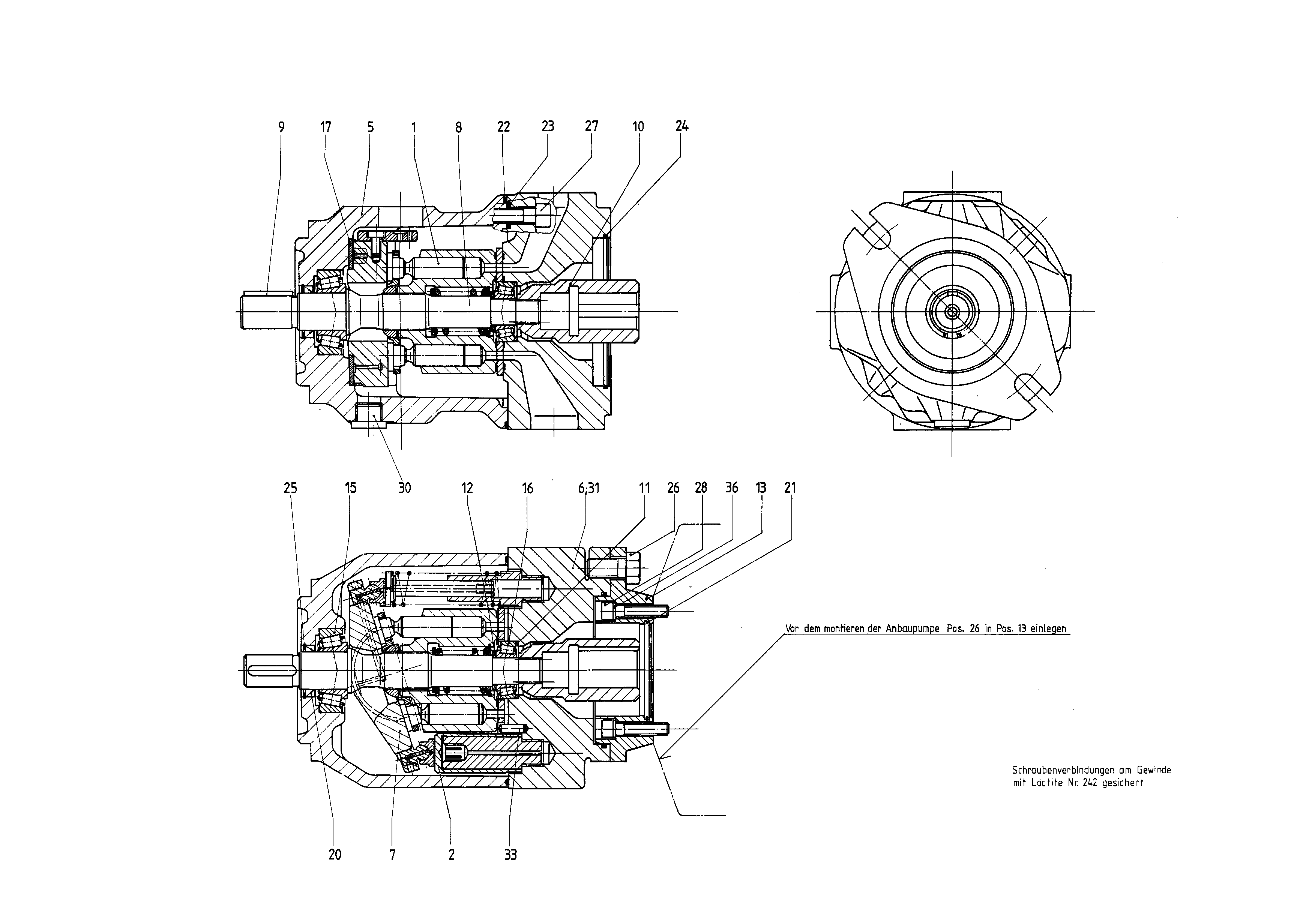

BASE UNITR910921160
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439597 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910916304 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550219 | PUMP HOUSING | 1 | ||
| 6 | R902543231 | CONNECTION PLATE | 1 | |
| R910961001 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902415913 | DRIVE SHAFT | 1 | ||
| R910125539 | PARALLEL KEY | 1 | ||
| R910901541 | HUB | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 13 | R902560728 | INTERMEDIATE FLANGE | 1 | |
| 15 | R902438109 | TAPERED-ROLLER BEARING | 1 | |
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| 21 | R909150068 | O-RINGD | 1 | |
| R910730041 | O-RINGD | 1 | ||
| R913052108 | R-RINGD | 4 | ||
| R910384259 | O-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| 26 | R910120006 | HEXAGON SCREW | 2 | |
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| 28 | R910109495 | SOCKET HEAD CAP SCREW | 4 | |
| R909153815 | SCREW PLUGD | 1 | ||
| 31 | R910942668 | BREAK-OFF PLUG | 2 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011601 | SCREW PLUG | 1 | |
| 36 | R910114774 | BONDED SEAL RINGD | 4 |
