Assembly

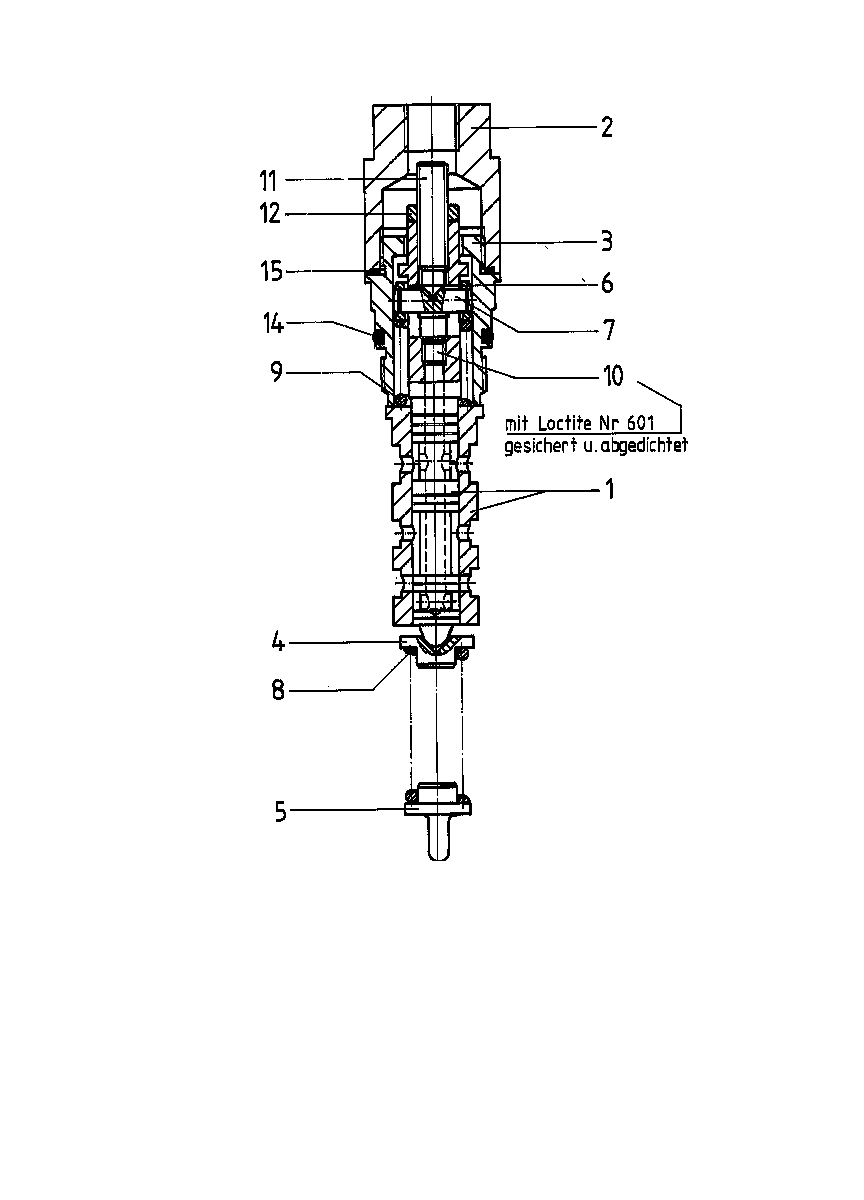

CONTROL PARTR910921342
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910909498 | CONTROL PISTON | 1 | |
| 2 | R910921330 | REDUCTION THREADED JOINT | 1 | |
| 3 | R910921326 | THREADED FASTENER | 1 | |
| R910909486 | SPRING DISK | 1 | ||
| 5 | R910909484 | SPRING DISK | 1 | |
| 6 | R910921328 | RING | 1 | |
| 7 | R910921329 | BOLT | 1 | |
| 8 | R910909216 | COMPRESSION SPRING | 1 | |
| 9 | R910921331 | COMPRESSION SPRING | 1 | |
| R910100943 | SETSCREW | 1 | ||
| 11 | R910914466 | SETSCREW | 1 | |
| R910933414 | HEXAGON NUT | 1 | ||
| R910513539 | O-RINGD | 1 | ||
| 15 | R910909942 | O-RINGD | 1 |
