Assembly

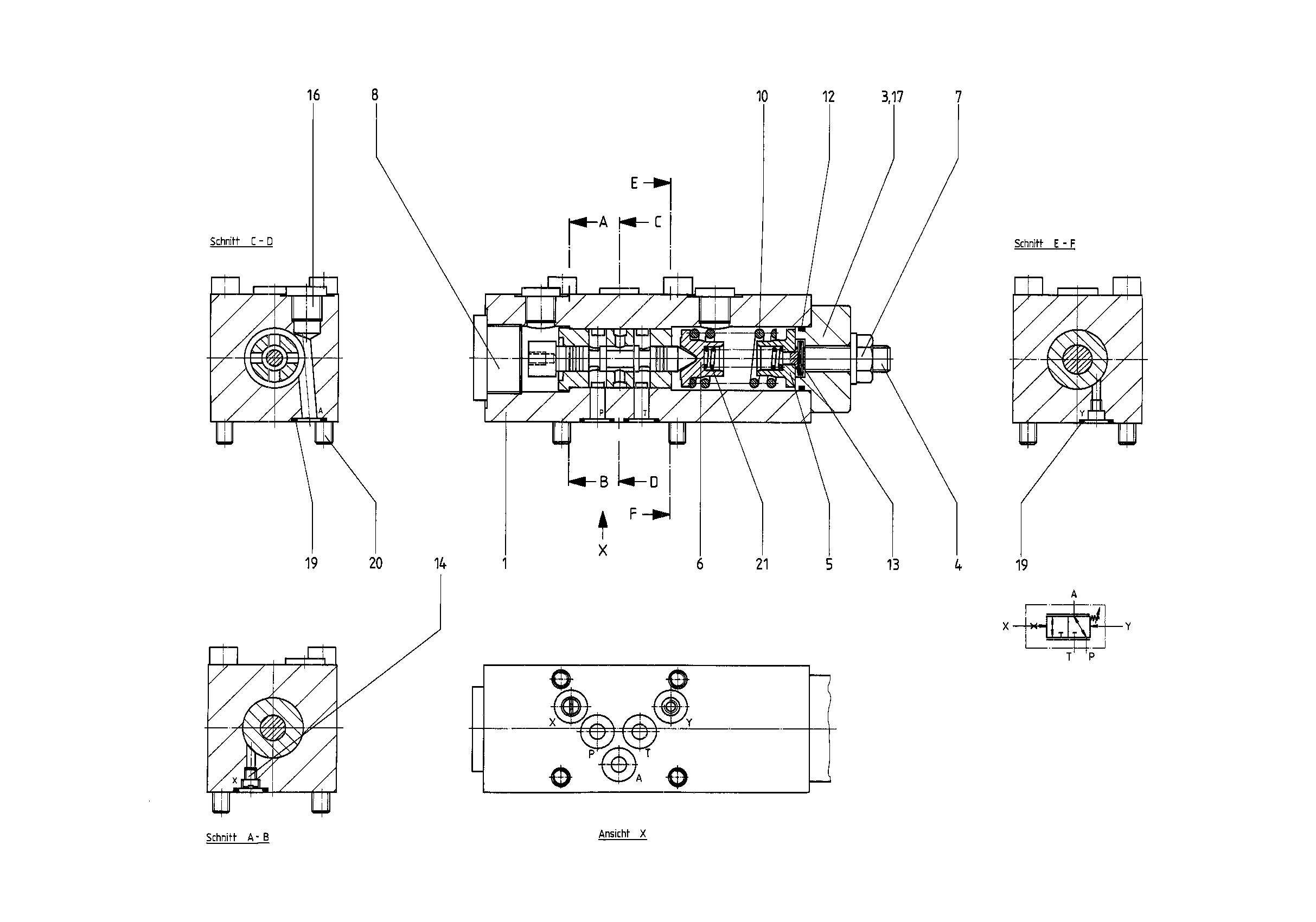

CONTROL VALVER910922889
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910926833 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R910755036 | COVER | 1 | ||
| R910755095 | ADJUSTING SCREW | 1 | ||
| R910971414 | SPRING DISK | 1 | ||
| R910971415 | SPRING DISK | 1 | ||
| R910339504 | SELF-LOCKING NUTD | 1 | ||
| R909156652 | SCREW PLUGD | 1 | ||
| R910745502 | COMPRESSION SPRING | 1 | ||
| R910470341 | O-RINGD | 1 | ||
| R910107093 | SLOTTED SPRING PIN | 1 | ||
| R910100579 | NOZZLE | 1 | ||
| R909153930 | SCREW PLUGD | 3 | ||
| R910109452 | SOCKET HEAD CAP SCREW | 4 | ||
| R910080543 | O-RINGD | 5 | ||
| R910109541 | SOCKET HEAD CAP SCREW | 4 | ||
| R910597309 | SPRING | 1 |
