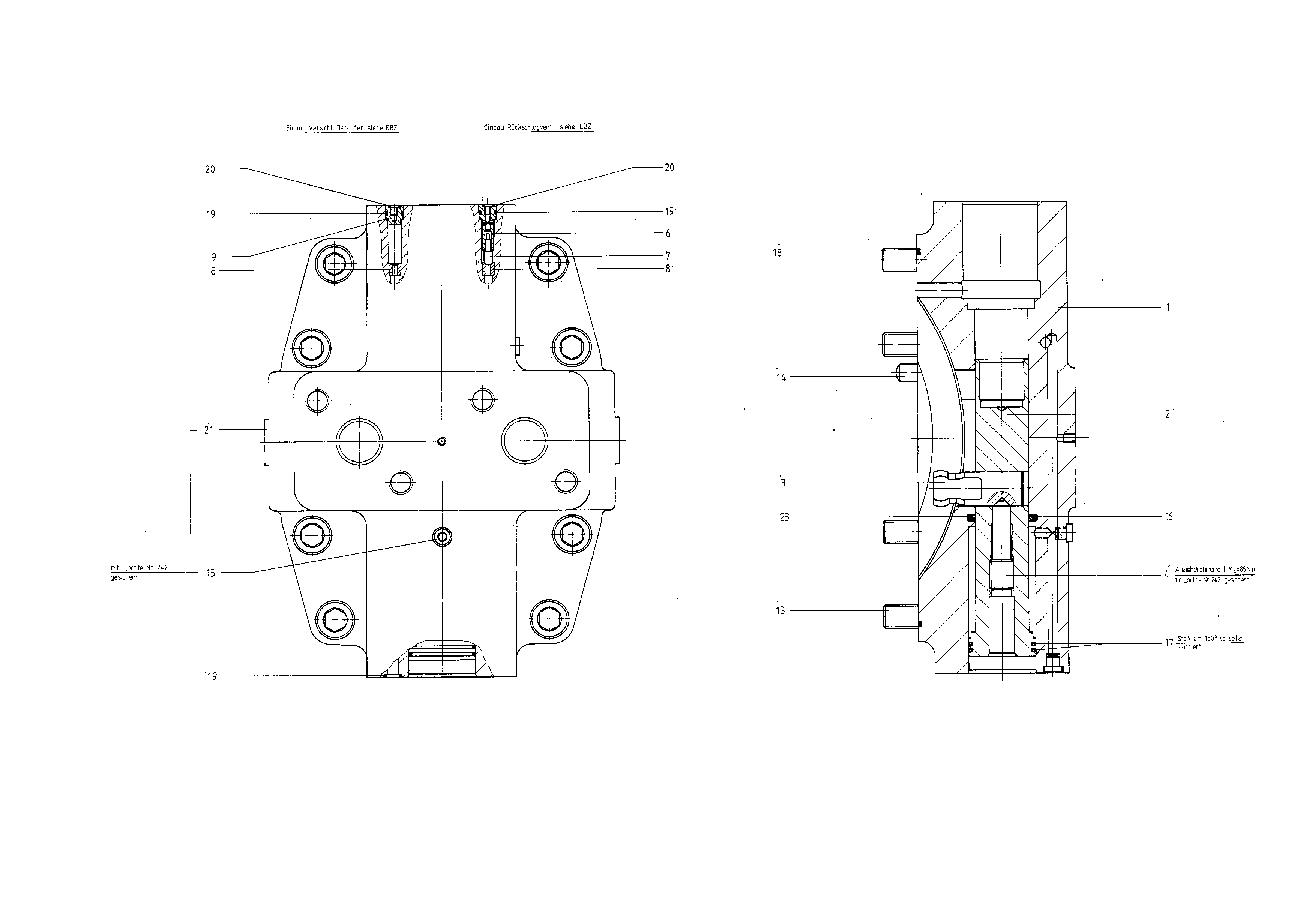

Assembly
ADJUSTING PIECER910925967
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910925441 | COVER PLATE | 1 | ||
| 2 | R902538879 | POSITIONING PISTON | 1 | |
| 3 | R902413801 | POSITIONING STUD | 1 | |
| R902475687 | SETSCREW | 1 | ||
| R910801624 | VALVE GUIDE | 1 | ||
| 7 | R909426662 | BOLT | 1 | |
| 8 | R902209845 | BUSHING | 2 | |
| 9 | R910801871 | PLUG | 1 | |
| R910126411 | SOCKET HEAD CAP SCREW | 8 | ||
| R910910938 | STRAIGHT PIN | 2 | ||
| R909154024 | SCREW PLUGD | 3 | ||
| 16 | R910911475 | ROD SEALD | 1 | |
| 17 | R910801096 | RECTANGULAR RINGD | 2 | |
| 18 | R910905253 | O-RINGD | 1 | |
| R910514543 | O-RINGD | 5 | ||
| R910977051 | O-RINGD | 2 | ||
| 21 | R909153365 | SCREW PLUGD | 2 | |
| R910977039 | O-RINGD | 1 |
