Assembly

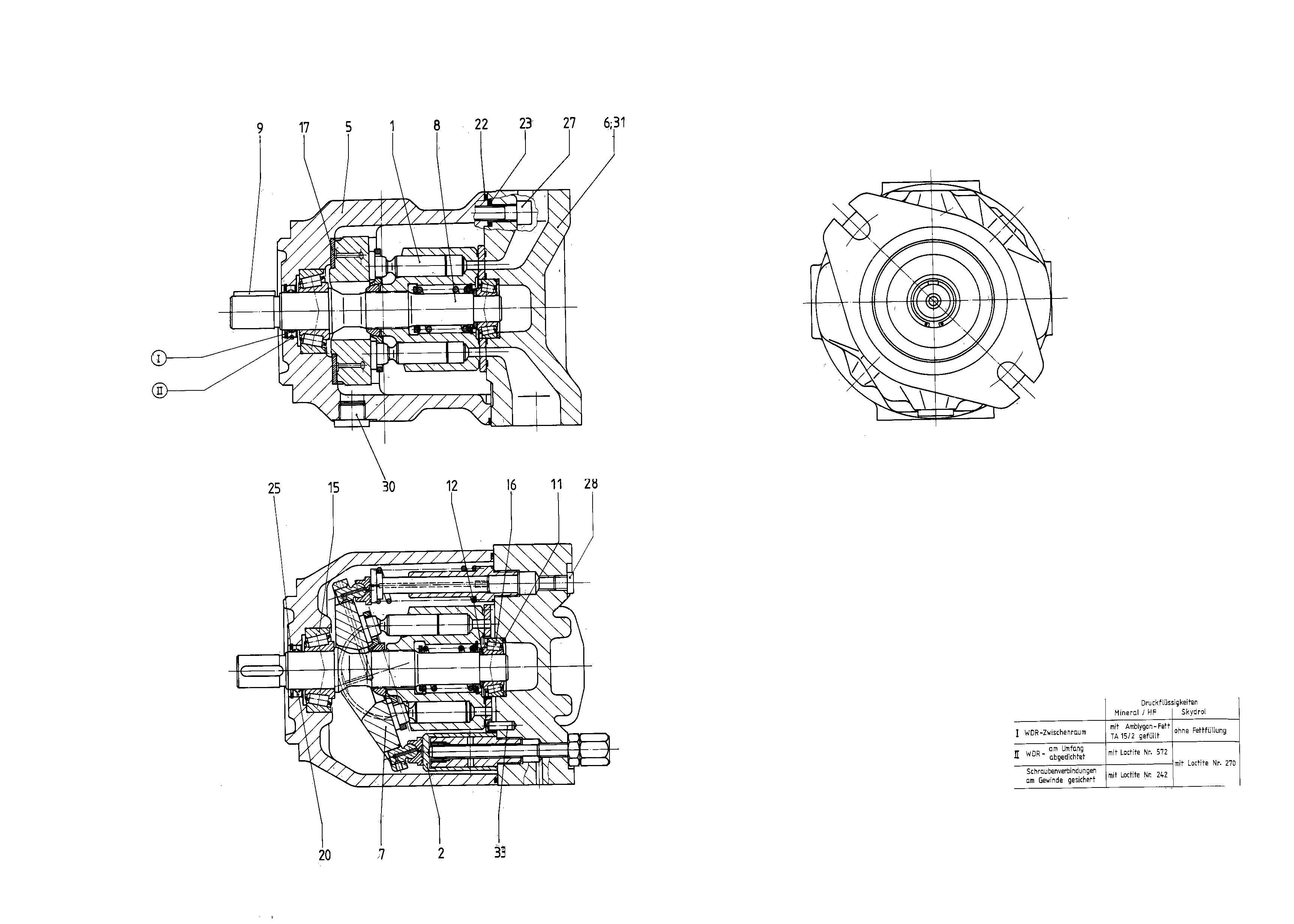

BASE UNITR910926561
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439597 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538157 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550216 | PUMP HOUSING | 1 | ||
| 6 | R910989739 | CONNECTION PLATE | 1 | |
| R910960813 | SWASH PLATE | 1 | ||
| 8 | R902415569 | DRIVE SHAFT | 1 | |
| 9 | R910125539 | PARALLEL KEY | 1 | |
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 15 | R902438109 | TAPERED-ROLLER BEARING | 1 | |
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910922516 | SHAFT SEALING RINGD | 1 | ||
| R910788139 | O-RINGD | 1 | ||
| R910788147 | O-RINGD | 4 | ||
| 25 | R902403815 | RETAINING RING | 1 | |
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R910918271 | SCREW PLUGD | 1 | ||
| R910911873 | SCREW PLUG | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
