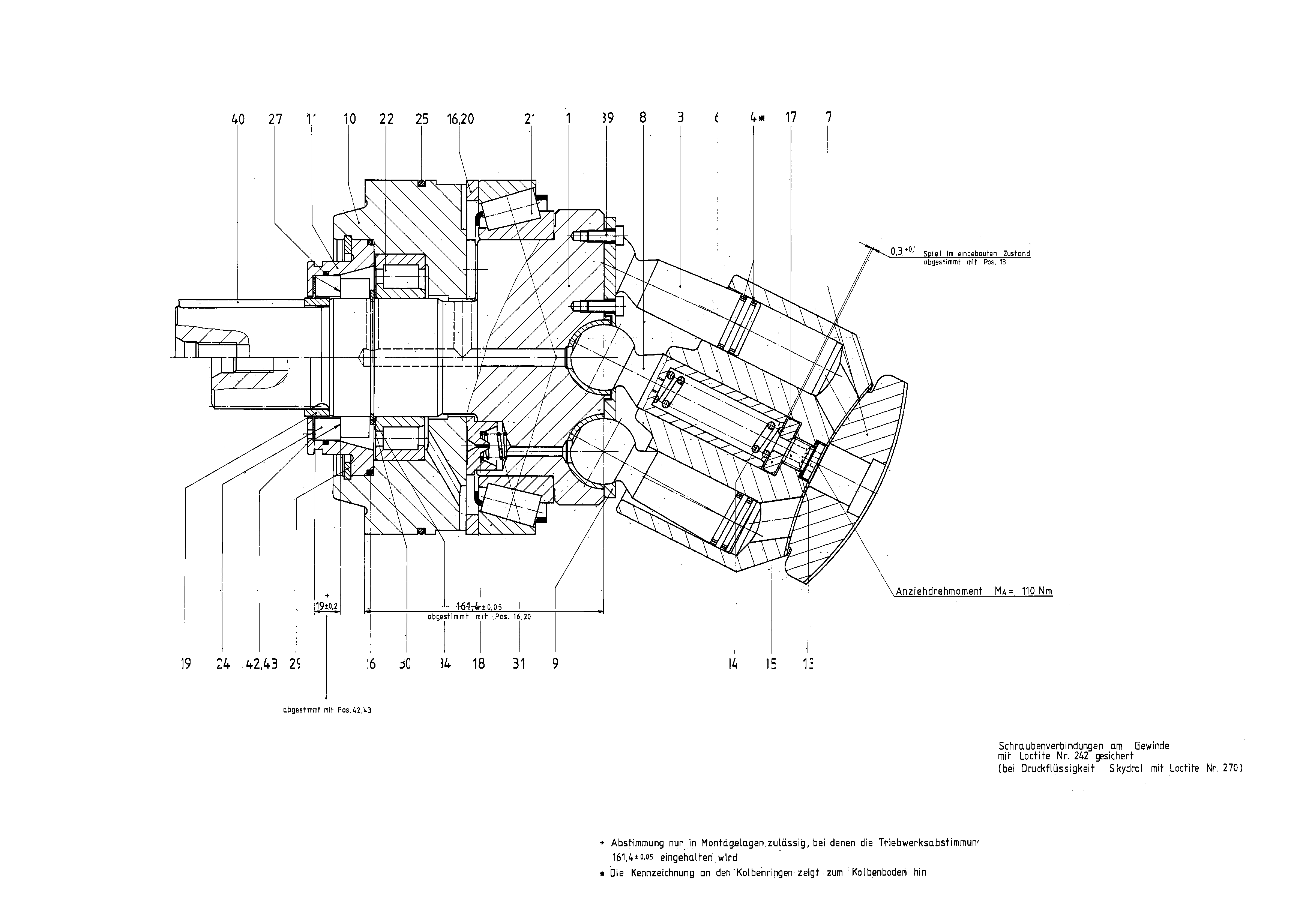

Assembly
ROTARY GROUPR910926687
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902490746 | DRIVE FLANGE | 1 | ||
| R902567198 | PISTON | 7 | ||
| R902567616 | CYLINDER | 1 | ||
| R902538786 | CONTROL LENS | 1 | ||
| R902537508 | THRUST JOURNAL | 1 | ||
| R902556372 | RETAINING PLATE | 1 | ||
| R902453220 | BEARING RING | 1 | ||
| 11 | R910926665 | SEALING FLANGE | 1 | |
| 13 | R910934208 | SHIM RING | 1 | |
| 14 | R910934496 | COMPRESSION SPRING | 1 | |
| 15 | R910934216 | WASHER | 1 | |
| 16 | R902416439 | TUNING KIT | 1 | |
| R910934224 | SPACER SCREW | 1 | ||
| R910714798 | PAD | 7 | ||
| 19 | R910926666 | SPACER RING | 1 | |
| 21 | R910926660 | TAPERED-ROLLER BEARING | 1 | |
| R910742481 | CYL. ROLLER BEARING | 1 | ||
| 24 | R910915310 | SLIDE RING SEALD | 1 | |
| 25 | R910625051 | O-RINGD | 1 | |
| 26 | R910976485 | O-RINGD | 1 | |
| R910905117 | O-RINGD | 1 | ||
| 29 | R910519138 | RETAINING RING | 1 | |
| 30 | R910188026 | RETAINING RING | 1 | |
| R910908452 | COMPRESSION SPRING | 7 | ||
| R910194468 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| 42 | R910105686 | SHIM RING | 1 | |
| 43 | R910380512 | SHIM RING | 2 |
