Assembly

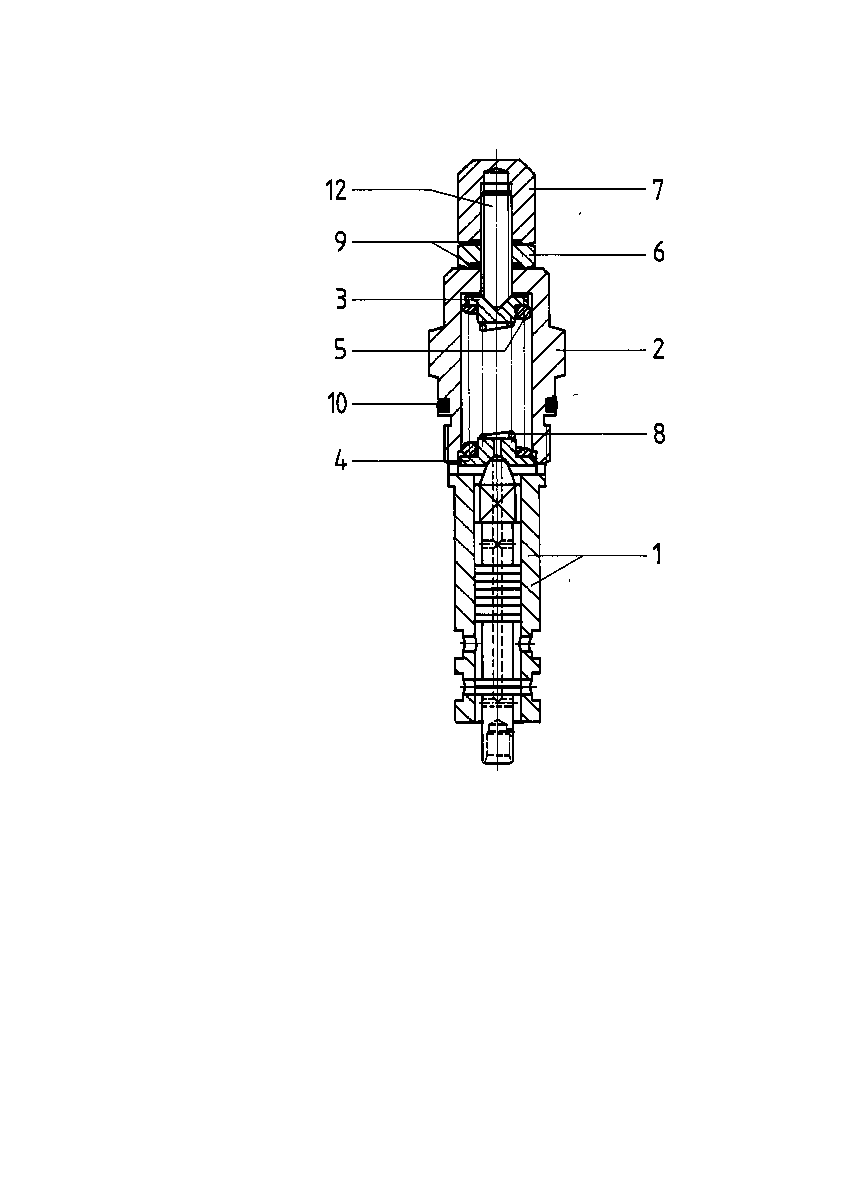

CONTROL PARTR910926791
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910918567 | CONTROL CONE | 1 | |
| 2 | R910912064 | SCREW PLUG | 1 | |
| 3 | R902434097 | SPRING DISK | 1 | |
| R902434096 | SPRING DISK | 1 | ||
| 5 | R910912053 | COMPRESSION SPRING | 1 | |
| 6 | R910913806 | NUT | 1 | |
| 7 | R910913805 | CAP NUT | 1 | |
| 8 | R910918622 | COMPRESSION SPRING | 1 | |
| 9 | R910114774 | BONDED SEAL RINGD | 2 | |
| R910513539 | O-RINGD | 1 | ||
| R910925006 | SETSCREW | 1 |
