Assembly

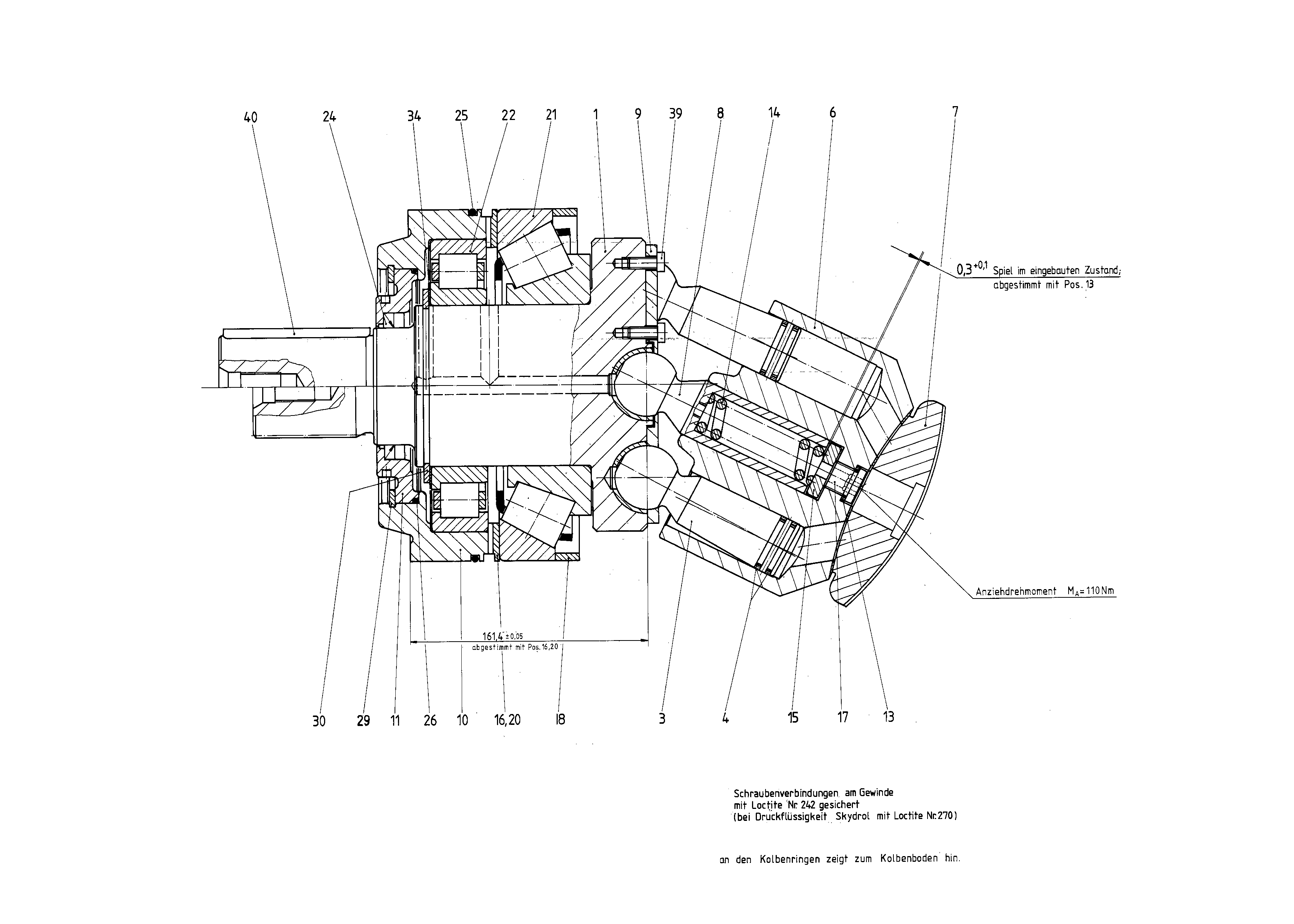

ROTARY GROUPR910927248
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902490736 | DRIVE FLANGE | 1 | ||
| R902567198 | PISTON | 7 | ||
| R902567616 | CYLINDER | 1 | ||
| R902538786 | CONTROL LENS | 1 | ||
| R902537508 | THRUST JOURNAL | 1 | ||
| R902556372 | RETAINING PLATE | 1 | ||
| R910926811 | BEARING RING | 1 | ||
| R910926808 | SEALING FLANGE | 1 | ||
| R910934208 | SHIM RING | 1 | ||
| R910934496 | COMPRESSION SPRING | 1 | ||
| R910934216 | WASHER | 1 | ||
| R910999173 | TUNING KIT | 1 | ||
| R910934224 | SPACER SCREW | 1 | ||
| R910919929 | TAPERED-ROLLER BEARING | 1 | ||
| R910784435 | CYL. ROLLER BEARING | 1 | ||
| R910983302 | SHAFT SEALING RINGD | 1 | ||
| R910103195 | O-RINGD | 1 | ||
| R910976486 | O-RINGD | 1 | ||
| R910519138 | RETAINING RING | 1 | ||
| R910105872 | RETAINING RING | 1 | ||
| R910432989 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| R910444707 | PARALLEL KEY | 1 |
