Assembly

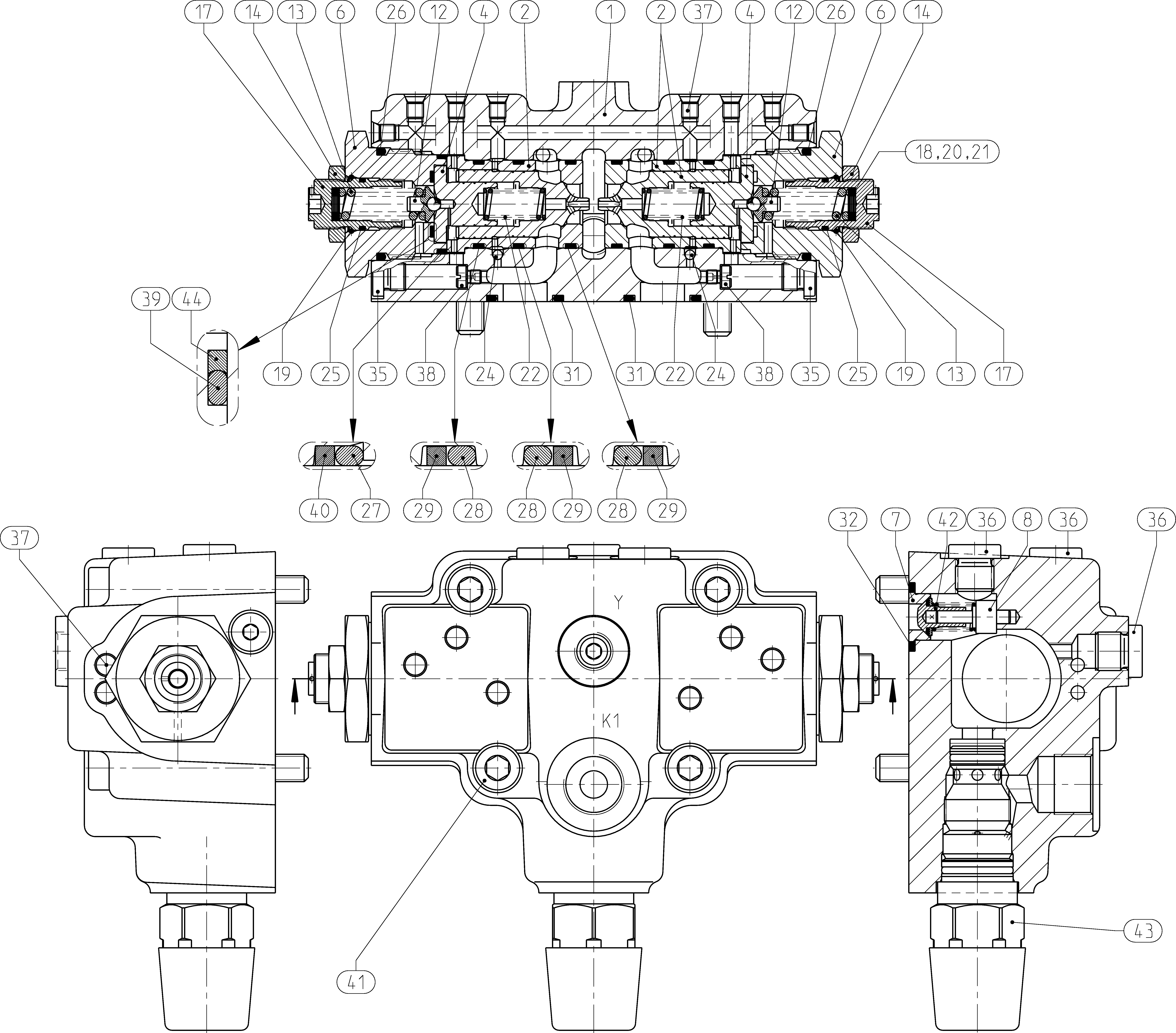

VALVE BLOCKR910927584
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910926859 | HOUSING | 1 | ||
| R902488949 | VALVE INSERT | 2 | ||
| R910754633 | SCREW PLUG | 2 | ||
| R910754668 | CONE SEAT | 1 | ||
| R910754641 | GUIDE PIN | 1 | ||
| R910754692 | DUMMY | 2 | ||
| R910754706 | COMPRESSION SPRING | 2 | ||
| 14 | R910754714 | NUT | 2 | |
| R910754722 | ADJUSTING SCREW | 2 | ||
| 18 | R910757489 | SHIM RING | 4 | |
| R910754757 | SNAP RING | 2 | ||
| 20 | R910754773 | SHIM RING | 2 | |
| 21 | R910754773 | SHIM RING | 2 | |
| R910754781 | COMPRESSION SPRING | 2 | ||
| 24 | R910754803 | BALL | 2 | |
| R910525618 | O-RINGD | 2 | ||
| R910901353 | O-RINGD | 2 | ||
| R910756598 | O-RINGD | 2 | ||
| R910756628 | O-RINGD | 6 | ||
| R910754978 | BACKUP RINGD | 6 | ||
| R910080632 | O-RINGD | 2 | ||
| R910220868 | O-RINGD | 1 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909153930 | SCREW PLUGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R910100579 | NOZZLE | 2 | ||
| R910901354 | O-RINGD | 2 | ||
| R910900613 | BACKUP RINGD | 2 | ||
| 41 | R910295396 | SOCKET HEAD CAP SCREW | 4 | |
| R910754838 | CHECK VALVE | 1 | ||
| 43 | R900422817 | PRESSURE RELIEF VALVE | 1 | |
| 44 | R910919519 | BACKUP RINGD | 2 |
