Assembly

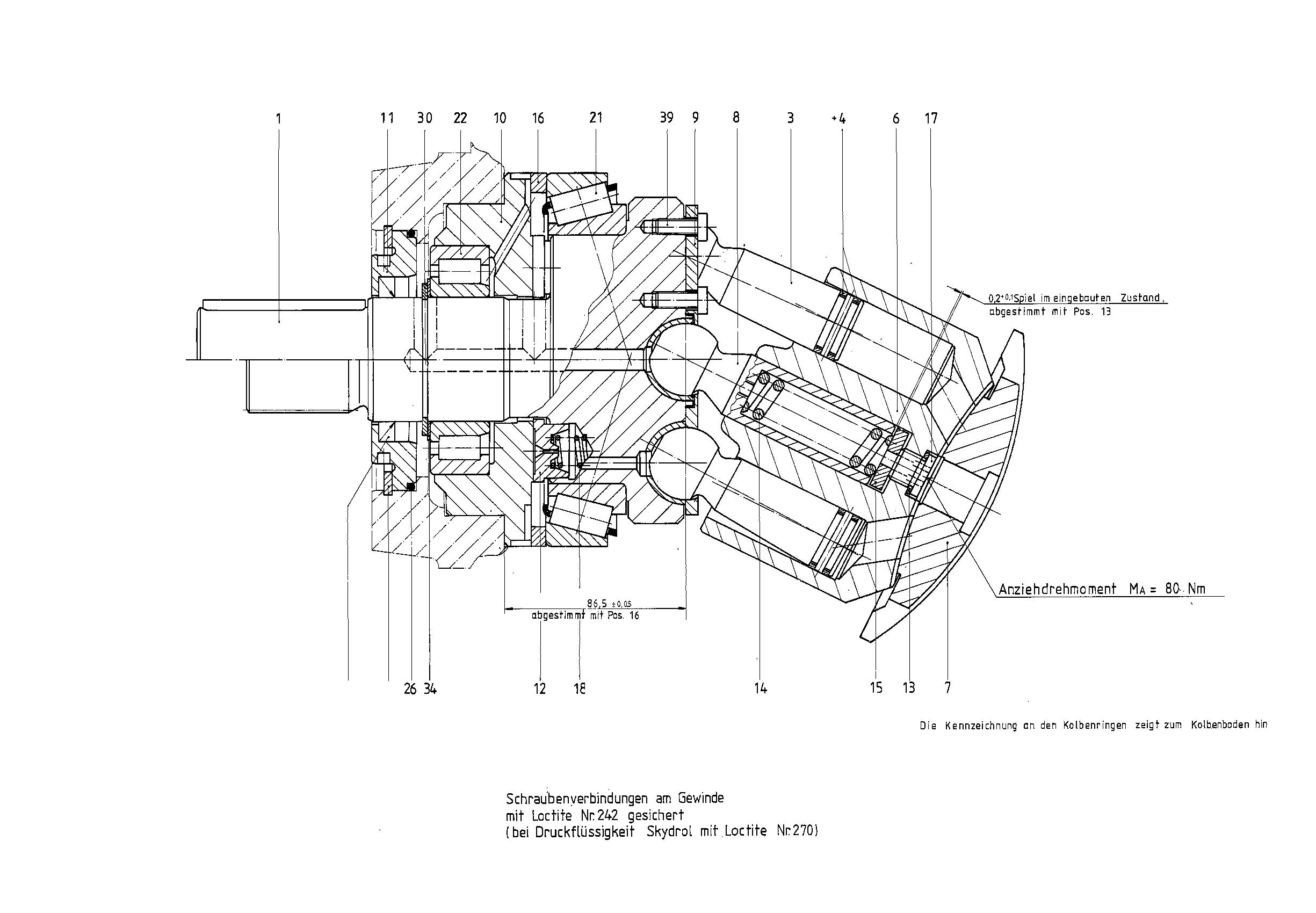

ROTARY GROUPR910927908
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902570587 | DRIVE FLANGE | 1 | ||
| 3 | R902441089 | PISTON | 7 | |
| R902493259 | CYLINDER | 1 | ||
| R910998157 | CONTROL LENS Assembly parts list →L | 1 | ||
| R902519719 | THRUST JOURNAL | 1 | ||
| 9 | R902566822 | RETAINING PLATE | 1 | |
| R902410825 | BEARING RING | 1 | ||
| 11 | R902412282 | SEALING FLANGE | 1 | |
| R910906308 | PAD | 7 | ||
| R910969915 | SHIM RING | 1 | ||
| R910900002 | COMPRESSION SPRING | 1 | ||
| R910900003 | WASHER | 1 | ||
| R902416435 | TUNING KIT | 1 | ||
| R910969893 | SPACER SCREW | 1 | ||
| 18 | R910717207 | COMPRESSION SPRING | 7 | |
| R913045638 | TAPERED-ROLLER BEARING | 1 | ||
| 22 | R910717223 | CYL. ROLLER BEARING | 1 | |
| 24 | R910381209 | SHAFT SEALING RINGD | 1 | |
| 26 | R910928968 | O-RINGD | 1 | |
| 29 | R910797448 | RETAINING RING | 1 | |
| 30 | R910082953 | RETAINING RING | 1 | |
| 34 | R910906310 | SHIM RING | 1 | |
| 39 | R902602715 | PAN-HEAD SCREW | 14 |
