Assembly

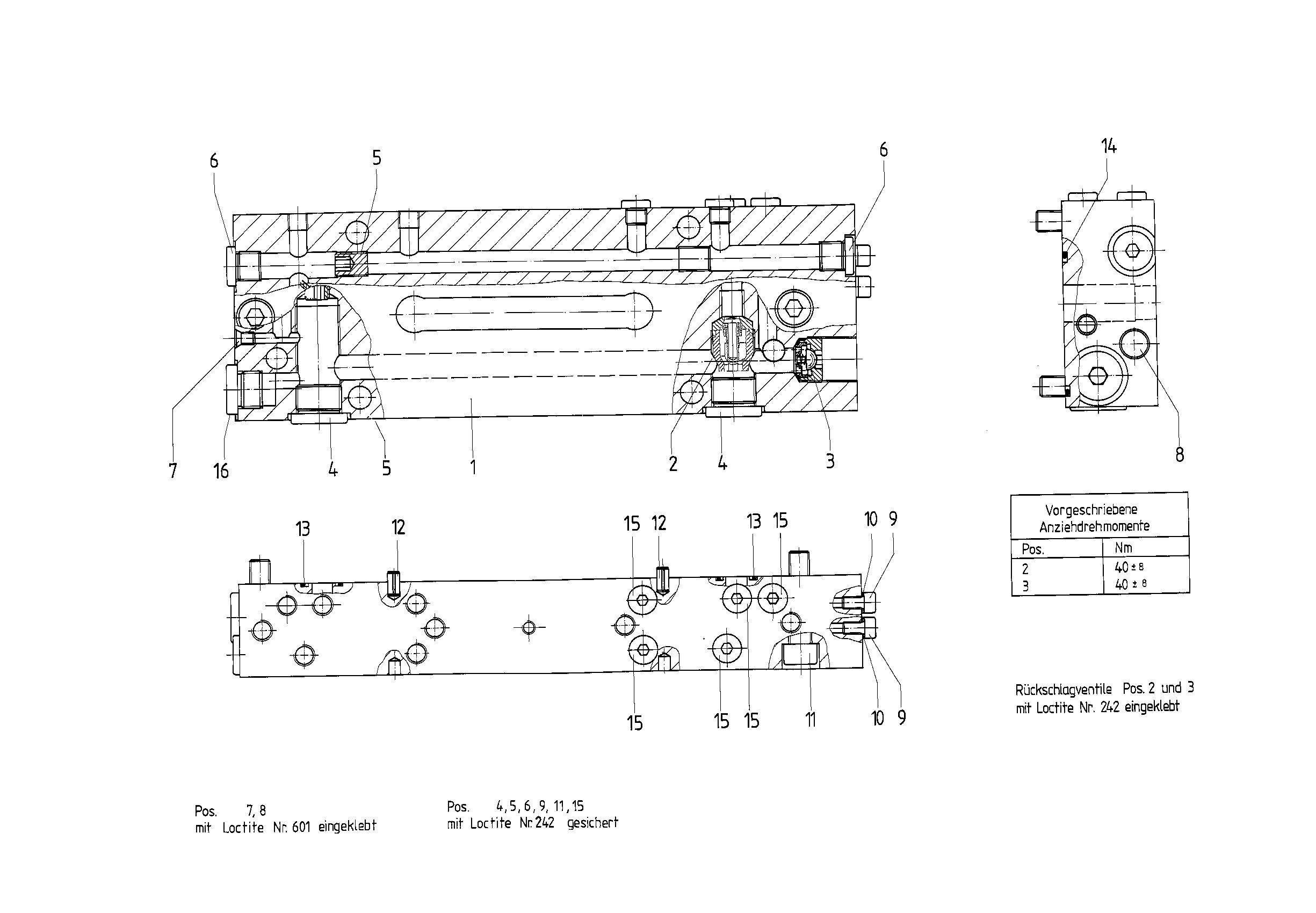

INTERMEDIATE PLATER910928160
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916363 | INTERMEDIATE PLATE | 1 | ||
| 2 | R910936757 | CHECK VALVE | 1 | |
| R910916367 | CHECK VALVE | 1 | ||
| R909156654 | SCREW PLUGD | 2 | ||
| R910538884 | SETSCREW | 2 | ||
| 6 | R909153930 | SCREW PLUGD | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 8 | R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | |
| 9 | R910109258 | SOCKET HEAD CAP SCREW | 2 | |
| 10 | R910100196 | SEAL RINGD | 2 | |
| 11 | R910120308 | SOCKET HEAD CAP SCREW | 2 | |
| R900002645 | SLOTTED SPRING PIN | 2 | ||
| 13 | R910302139 | O-RINGD | 4 | |
| R910919986 | O-RINGD | 1 | ||
| R909156649 | SCREW PLUGD | 5 | ||
| R909156651 | SCREW PLUG | 1 |
