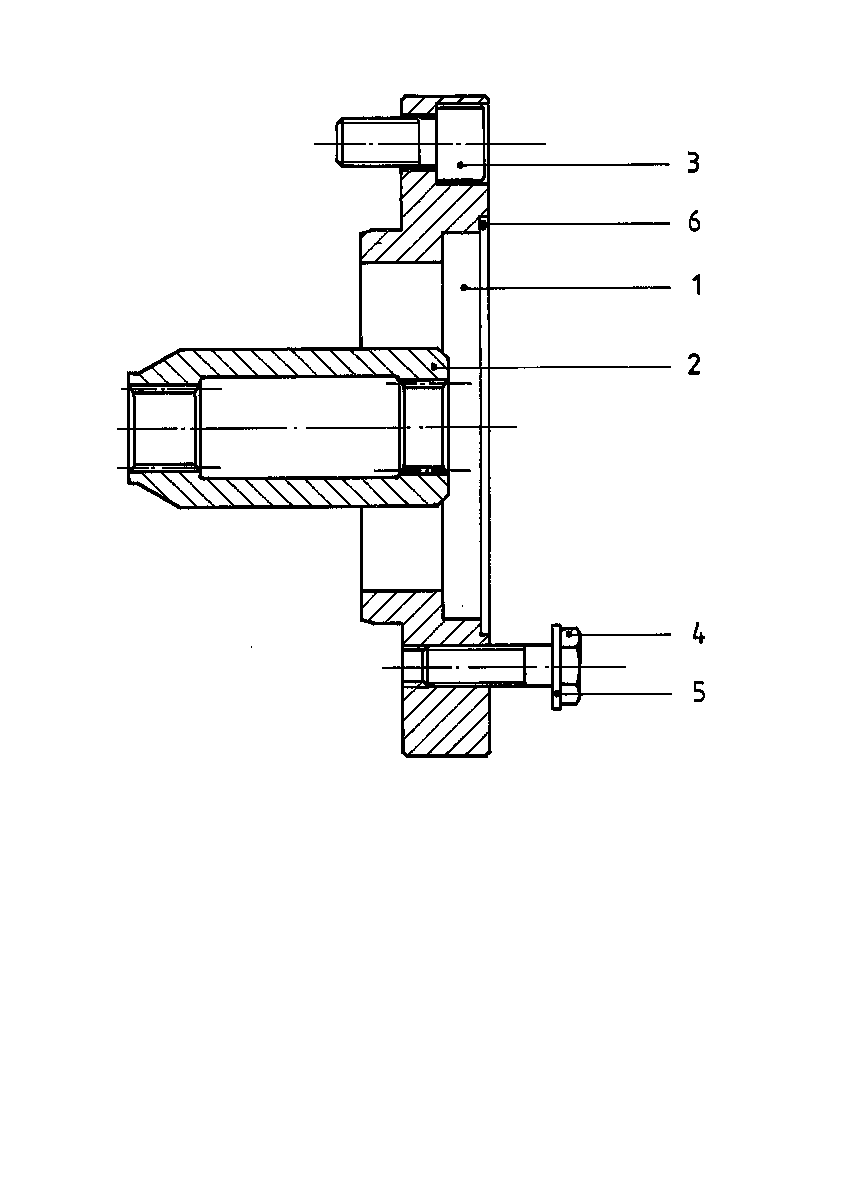

Assembly
INTERMEDIATE FLANGER910929723
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910918216 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R910944333 | SPLINED COUPLING | 1 | |
| 3 | R910109754 | SOCKET HEAD CAP SCREW | 2 | |
| R910104752 | HEXAGON SCREW | 4 | ||
| 5 | R910186724 | WASHER | 4 | |
| 6 | R910112127 | O-RINGD | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910918216 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R910944333 | SPLINED COUPLING | 1 | |
| 3 | R910109754 | SOCKET HEAD CAP SCREW | 2 | |
| R910104752 | HEXAGON SCREW | 4 | ||
| 5 | R910186724 | WASHER | 4 | |
| 6 | R910112127 | O-RINGD | 1 |
