Assembly

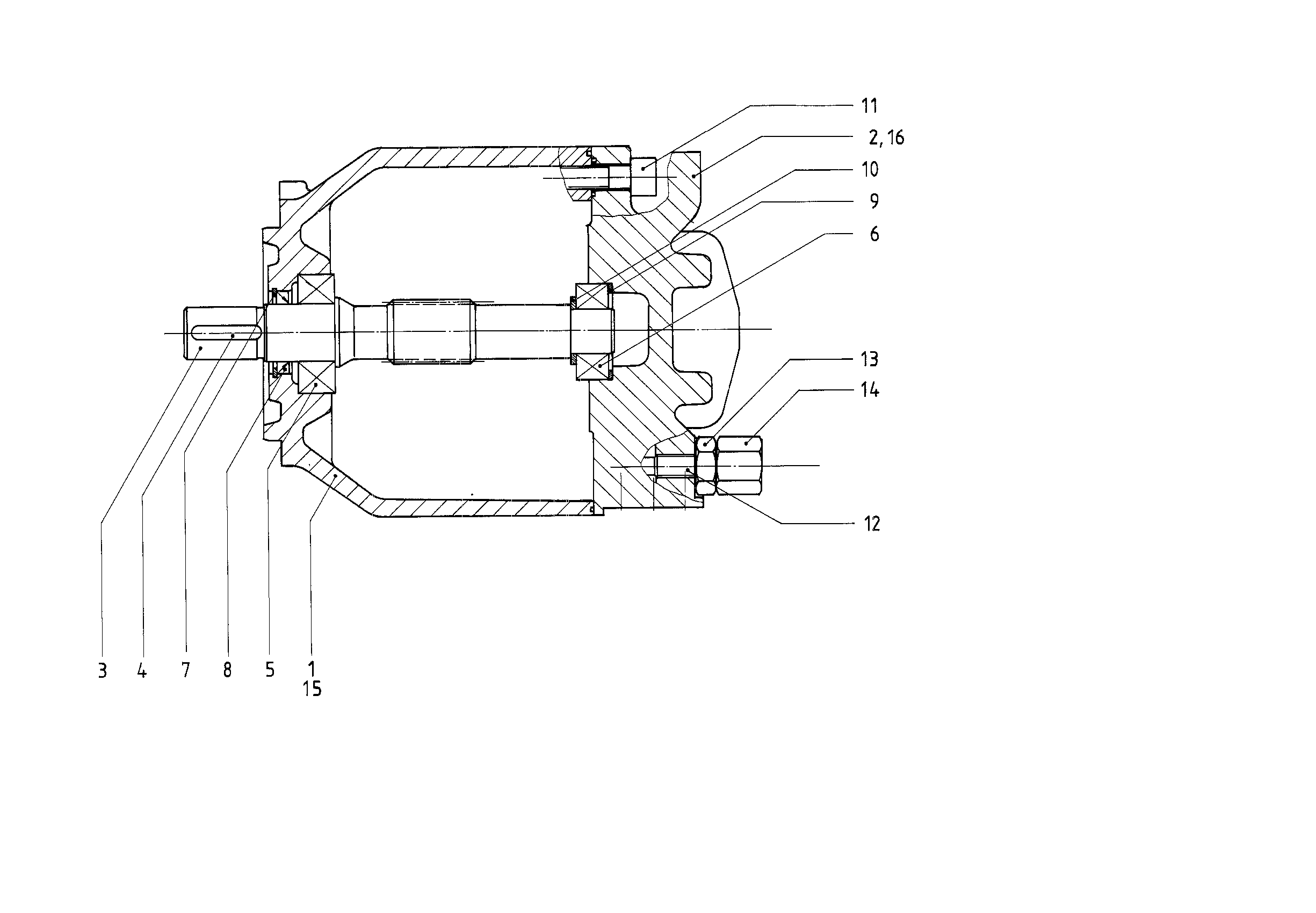

BASE UNITR910929741
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910925328 | PUMP HOUSING | 1 | |
| R910976709 | CONNECTION PLATE | 1 | ||
| 3 | R910929746 | DRIVE SHAFT | 1 | |
| R910125504 | PARALLEL KEY | 1 | ||
| 5 | R910704954 | TAPERED-ROLLER BEARING | 1 | |
| 6 | R909086994 | TAPERED-ROLLER BEARING | 1 | |
| 7 | R902403815 | RETAINING RING | 1 | |
| 8 | R910900853 | SHAFT SEALING RINGD | 1 | |
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| 11 | R910231991 | SOCKET HEAD CAP SCREW | 4 | |
| R910904676 | SETSCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910904041 | CAP NUT | 1 | ||
| 15 | R909153816 | SCREW PLUGD | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
