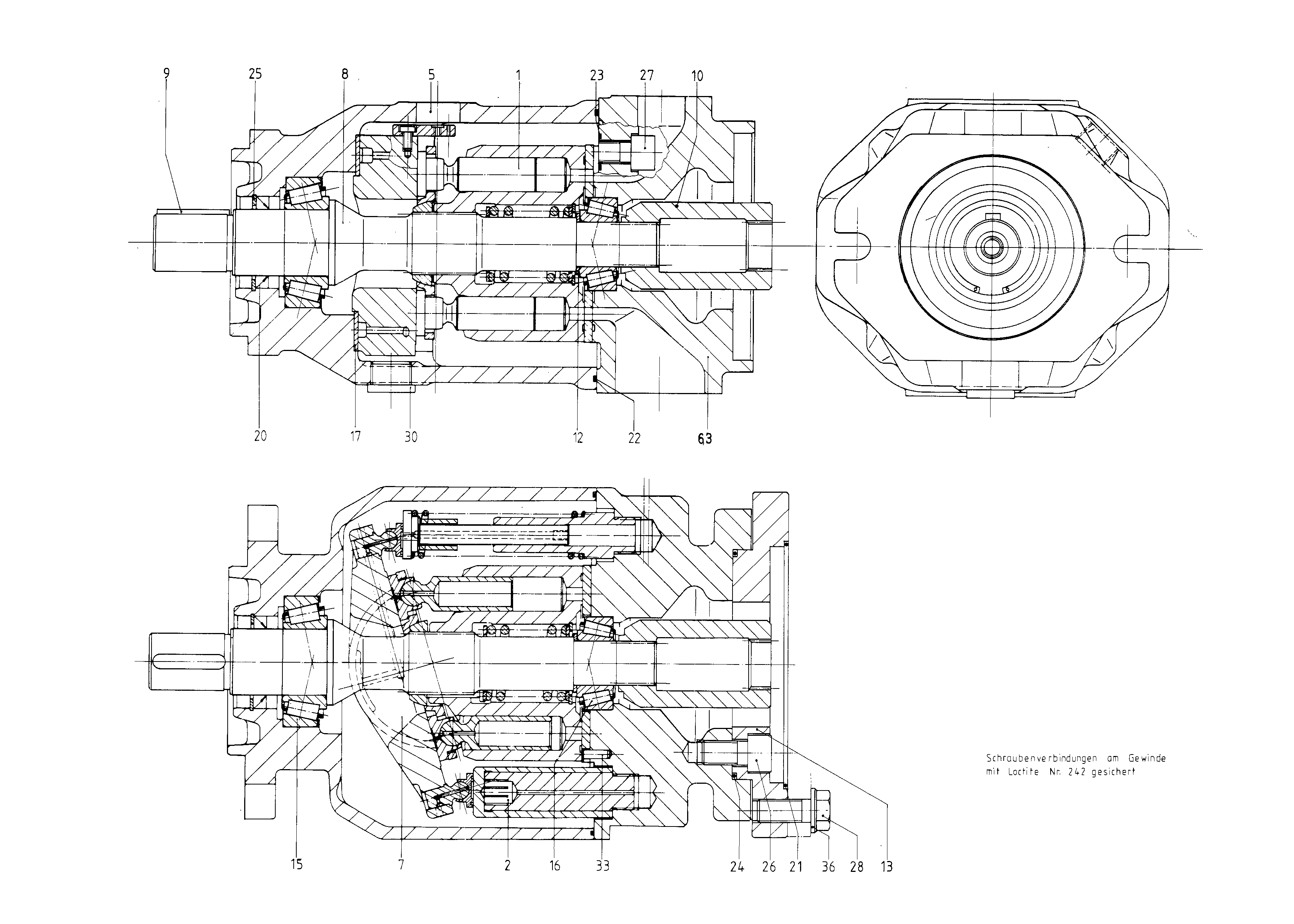

Assembly
BASE UNITR910930215
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910906871 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910913785 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910906815 | PUMP HOUSING | 1 | ||
| R910925897 | CONNECTION PLATE | 1 | ||
| R910961044 | SWASH PLATE | 1 | ||
| R910987697 | DRIVE SHAFT | 1 | ||
| R910923559 | PARALLEL KEY | 1 | ||
| R910943750 | SPLINED COUPLING | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910921994 | INTERMEDIATE FLANGE | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R910432962 | O-RINGD | 1 | ||
| R910906911 | O-RINGD | 1 | ||
| R913068283 | R-RINGD | 4 | ||
| R910103047 | O-RINGD | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910120464 | SOCKET HEAD CAP SCREW | 4 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
