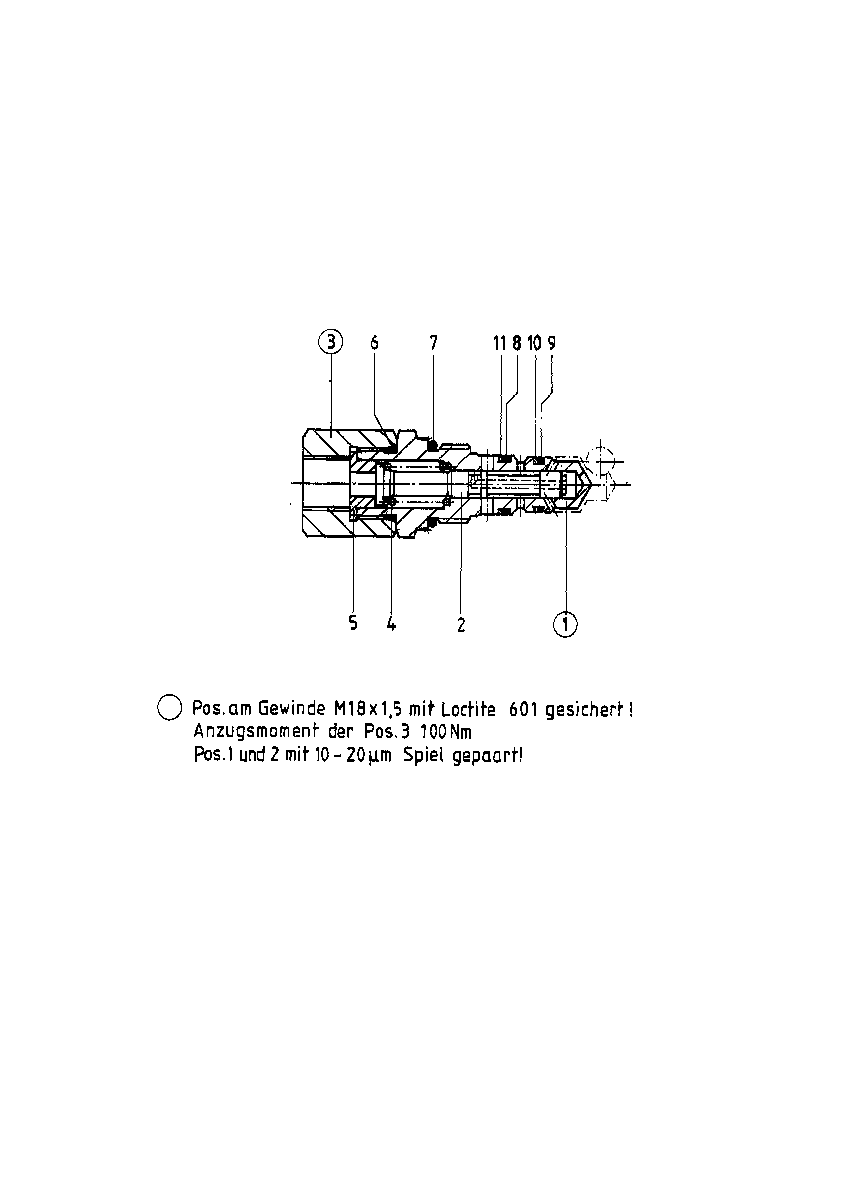

Assembly
DIRECTIONAL-CONTROL VALVER910931428
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910927436 | VALVE INSERT | 1 | |
| 2 | R910919743 | VALVE SPOOL | 1 | |
| R910931430 | UNION NUT | 1 | ||
| 4 | R910919744 | COMPRESSION SPRING | 1 | |
| 5 | R910927434 | STOP RING | 1 | |
| 6 | R910930792 | O-RINGD | 1 | |
| R910764736 | O-RINGD | 1 | ||
| 8 | R910942850 | O-RINGD | 1 | |
| 9 | R910942851 | O-RINGD | 1 | |
| 10 | R910919750 | BACKUP RINGD | 1 | |
| 11 | R910919751 | BACKUP RINGD | 1 |
