Assembly

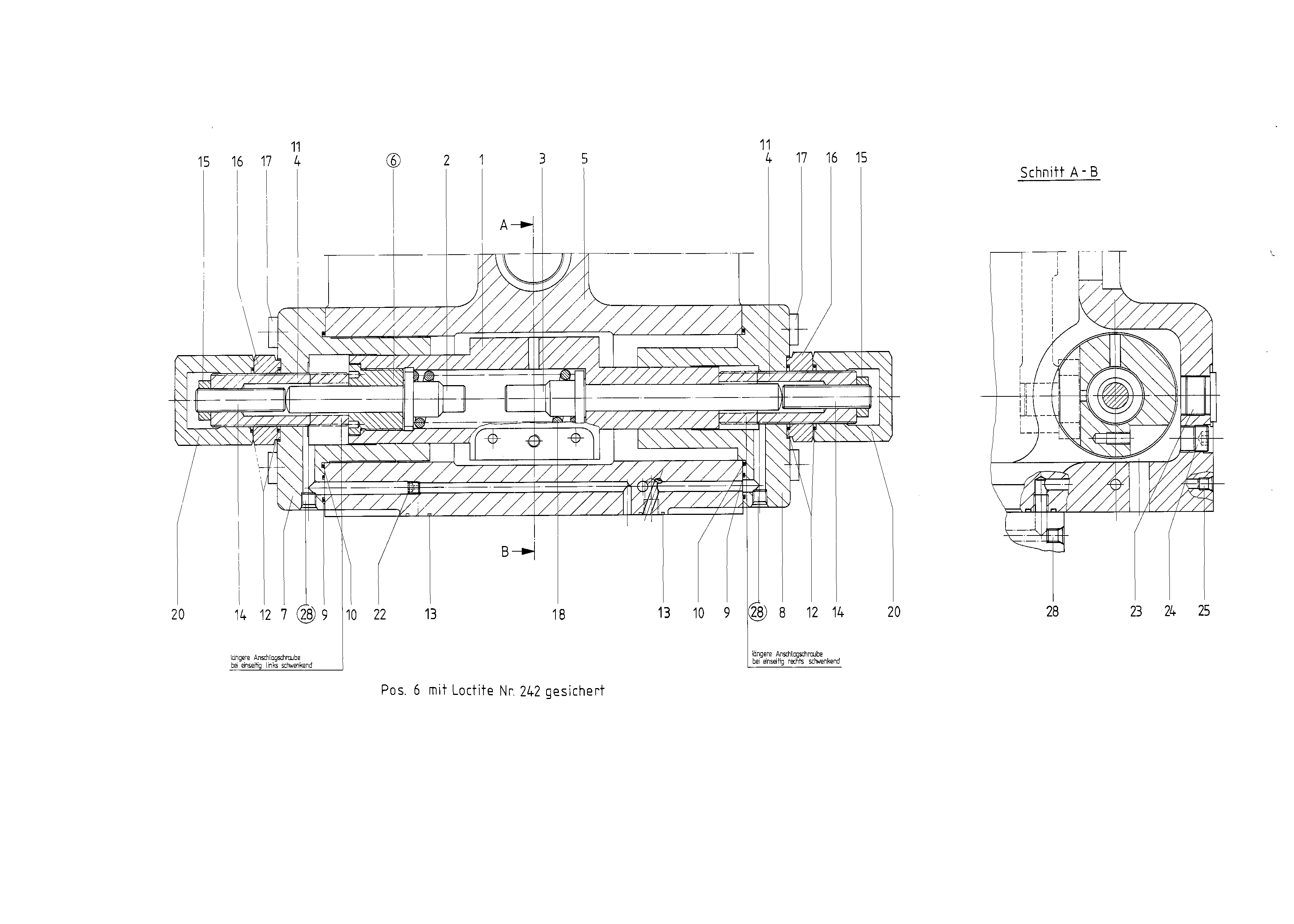

ADJUSTING PIECER910931835
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902407912 | ADJUSTING PISTON | 1 | |
| R902557760 | PRESSURE PISTON | 1 | ||
| R902557759 | PRESSURE PISTON | 1 | ||
| R910900073 | STOP SCREW | 2 | ||
| 5 | R902452245 | REPAIR KIT | 1 | |
| 6 | R910968536 | PISTON GUIDE | 1 | |
| 7 | R910945721 | PISTON HOUSING | 1 | |
| 8 | R910945727 | PISTON HOUSING | 1 | |
| 9 | R910923835 | R-RINGD | 2 | |
| R902650324 | R-RINGD | 2 | ||
| 12 | R910904055 | O-RINGD | 4 | |
| R910923835 | R-RINGD | 2 | ||
| 14 | R910517011 | SETSCREW | 2 | |
| R910127116 | HEXAGON NUT | 2 | ||
| R910902827 | NUT | 2 | ||
| R910604976 | SOCKET HEAD CAP SCREW | 8 | ||
| R910900077 | COMPRESSION SPRING | 1 | ||
| 19 | R909156649 | SCREW PLUG | 4 | |
| R910902828 | CAP NUT | 2 | ||
| R910856649 | NOZZLE | 1 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| 24 | R910987526 | SCREW PLUG | 1 | |
| 25 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 28 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 37 | R902650982 | DUMMY | 1 | |
| 38 | R910473227 | O-RING | 1 |
