Assembly

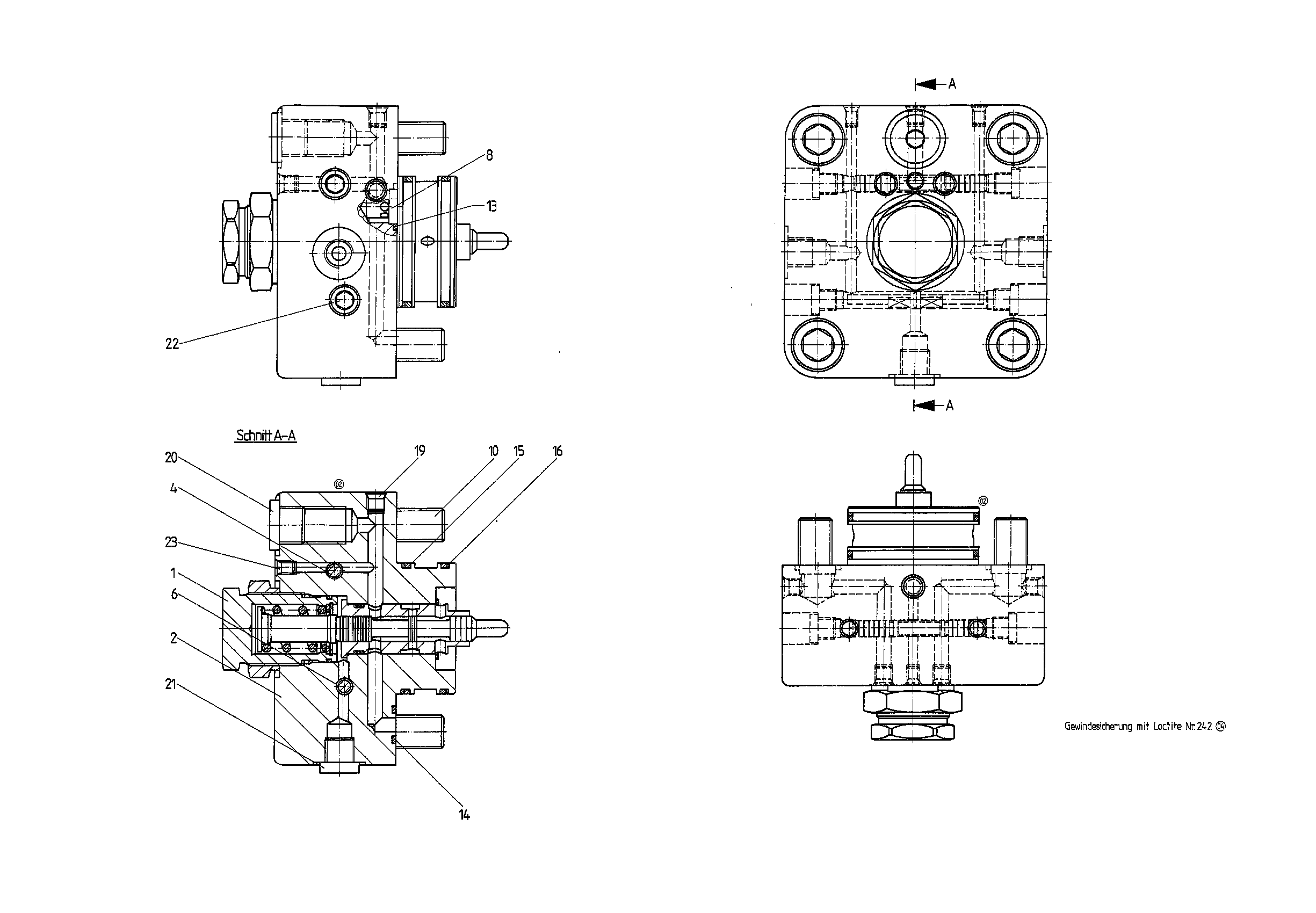

CONTROL PARTR910931870
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910935585 | VALVE INSERT | 1 | ||
| R910931816 | CONTROL HOUSING | 1 | ||
| R910930951 | SLIDE | 1 | ||
| R910020451 | VALVE SPOOL | 1 | ||
| R910974764 | HY-CHECK VALVE | 2 | ||
| R909153934 | SOCKET HEAD CAP SCREW | 4 | ||
| R910513482 | O-RINGD | 2 | ||
| R910523003 | O-RINGD | 2 | ||
| R910522465 | O-RINGD | 2 | ||
| R910927882 | BACKUP RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 |
