Assembly

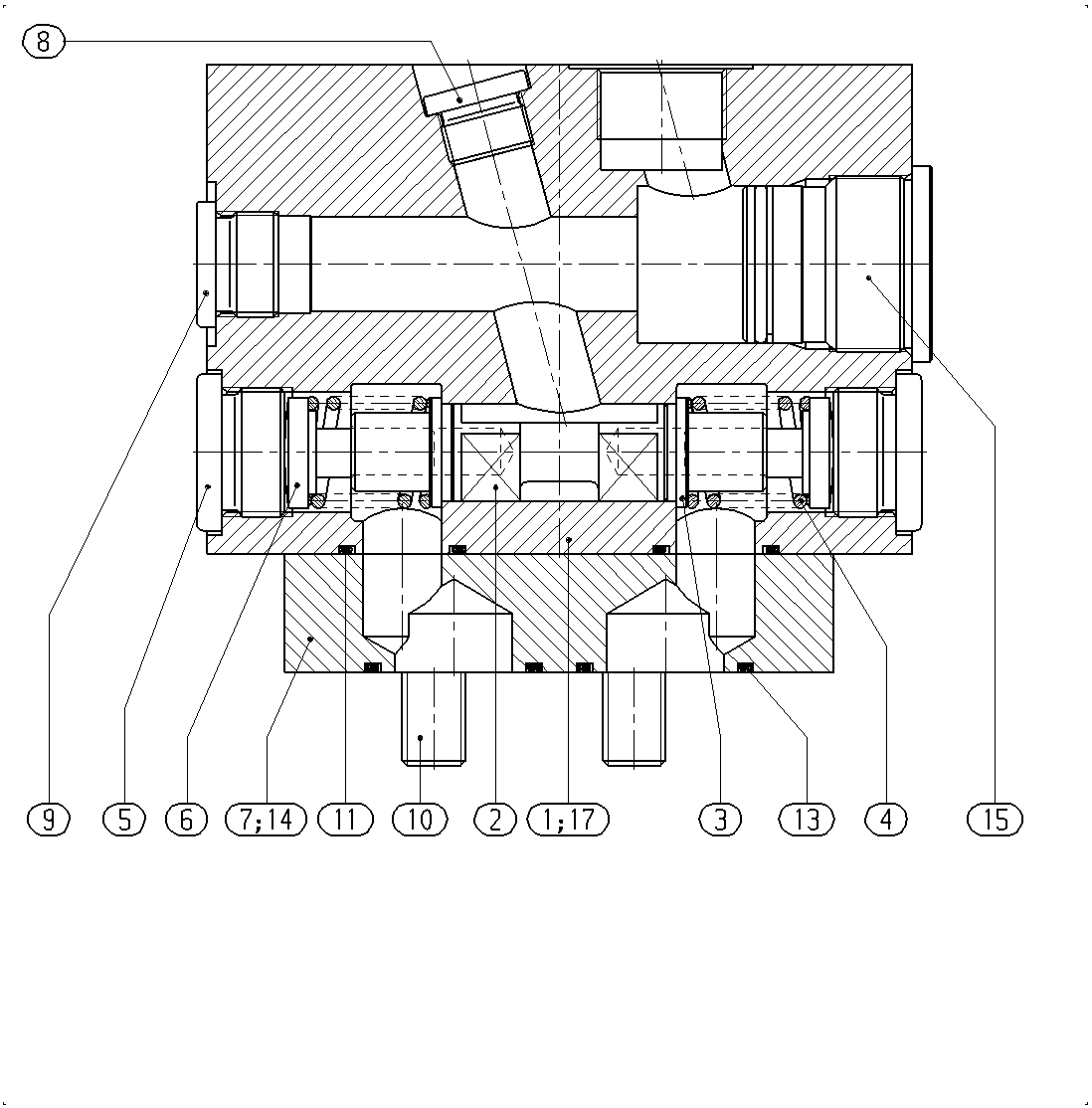

FLUSHING VALVER910932055
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910915031 | HOUSING | 1 | |
| 2 | R910021202 | FLUSHING PISTON | 1 | |
| R910021288 | WASHER | 2 | ||
| 4 | R910035327 | COMPRESSION SPRING | 2 | |
| 5 | R909156652 | SCREW PLUG | 2 | |
| R910021393 | DAMPING PISTON | 2 | ||
| 7 | R910932057 | INTERMEDIATE PLATE | 1 | |
| R909156654 | SCREW PLUGD | 1 | ||
| 9 | R909156984 | SCREW PLUGD | 1 | |
| R910120618 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R910080659 | O-RINGD | 2 | |
| 13 | R910113646 | O-RINGD | 2 | |
| 14 | R910199079 | O-RINGD | 1 | |
| R902432885 | SCREW PLUG | 1 | ||
| 17 | R909153930 | SCREW PLUGD | 1 |
