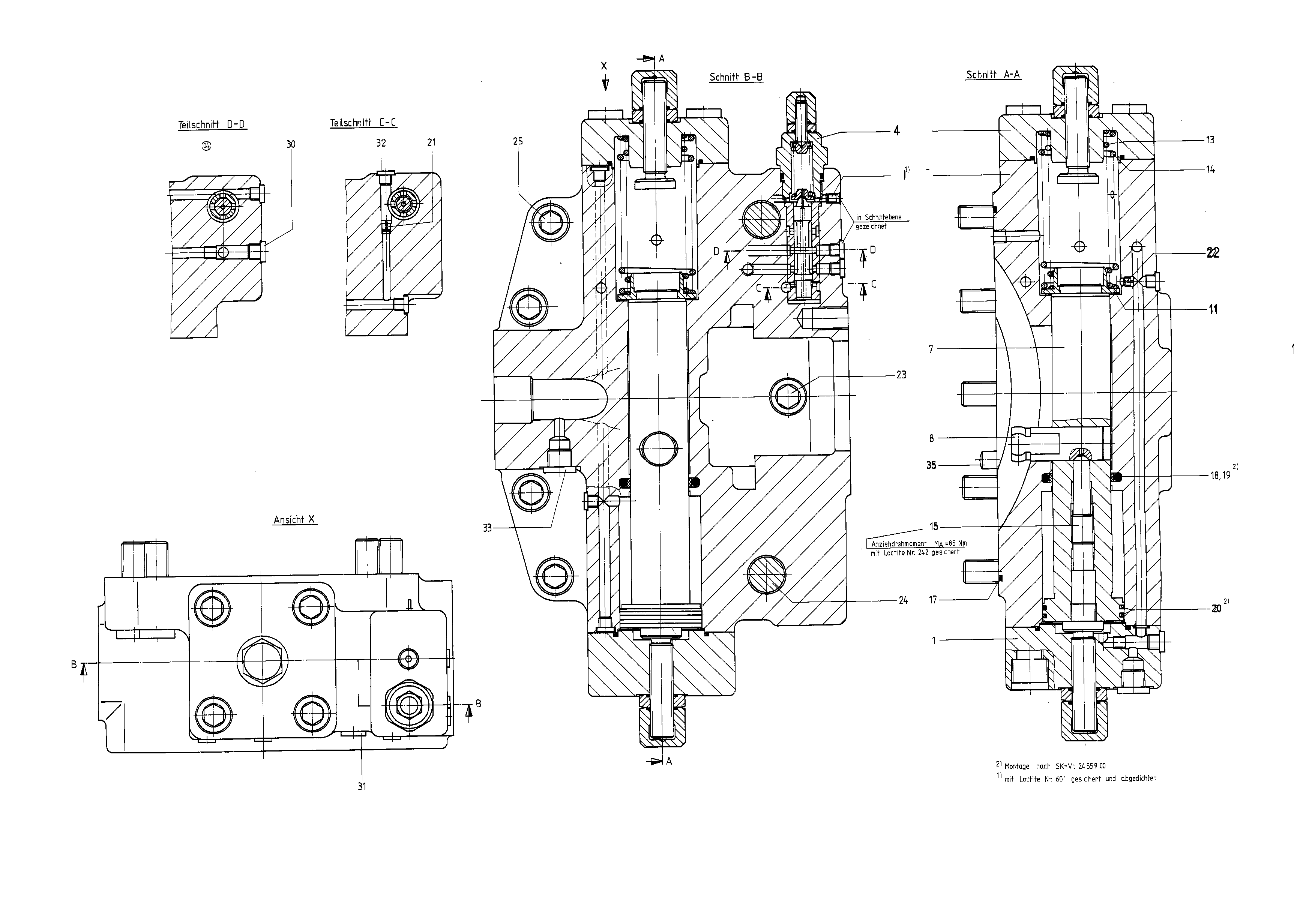

Assembly
CONTROLR910932699
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910923349 | COVER Assembly parts list →L | 1 | ||
| 2 | R910923348 | COVER Assembly parts list →L | 1 | |
| R902533145 | VALVE INSERT | 1 | ||
| 6 | R910912443 | COVER PLATE | 1 | |
| R910909481 | POSITIONING PISTON | 1 | ||
| 8 | R902413803 | POSITIONING STUD | 1 | |
| 11 | R910909485 | SPRING DISK | 1 | |
| R910909214 | COMPRESSION SPRING | 1 | ||
| 14 | R910909215 | COMPRESSION SPRING | 1 | |
| 15 | R902475687 | SETSCREW | 1 | |
| 17 | R910917440 | O-RINGD | 1 | |
| 18 | R910907799 | ROD SEALD | 1 | |
| R910113786 | O-RINGD | 1 | ||
| 20 | R910907604 | RECTANGULAR RINGD | 2 | |
| R910836761 | NOZZLE | 1 | ||
| 22 | R910836761 | NOZZLE | 1 | |
| 23 | R910209228 | SOCKET HEAD CAP SCREW | 1 | |
| 24 | R910802651 | SOCKET HEAD CAP SCREW | 2 | |
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| 29 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909156649 | SCREW PLUGD | 1 | ||
| 31 | R909156650 | SCREW PLUGD | 1 | |
| R909156863 | SCREW PLUGD | 11 | ||
| R909156864 | SCREW PLUGD | 1 | ||
| R910514179 | STRAIGHT PIN | 2 |
