Assembly

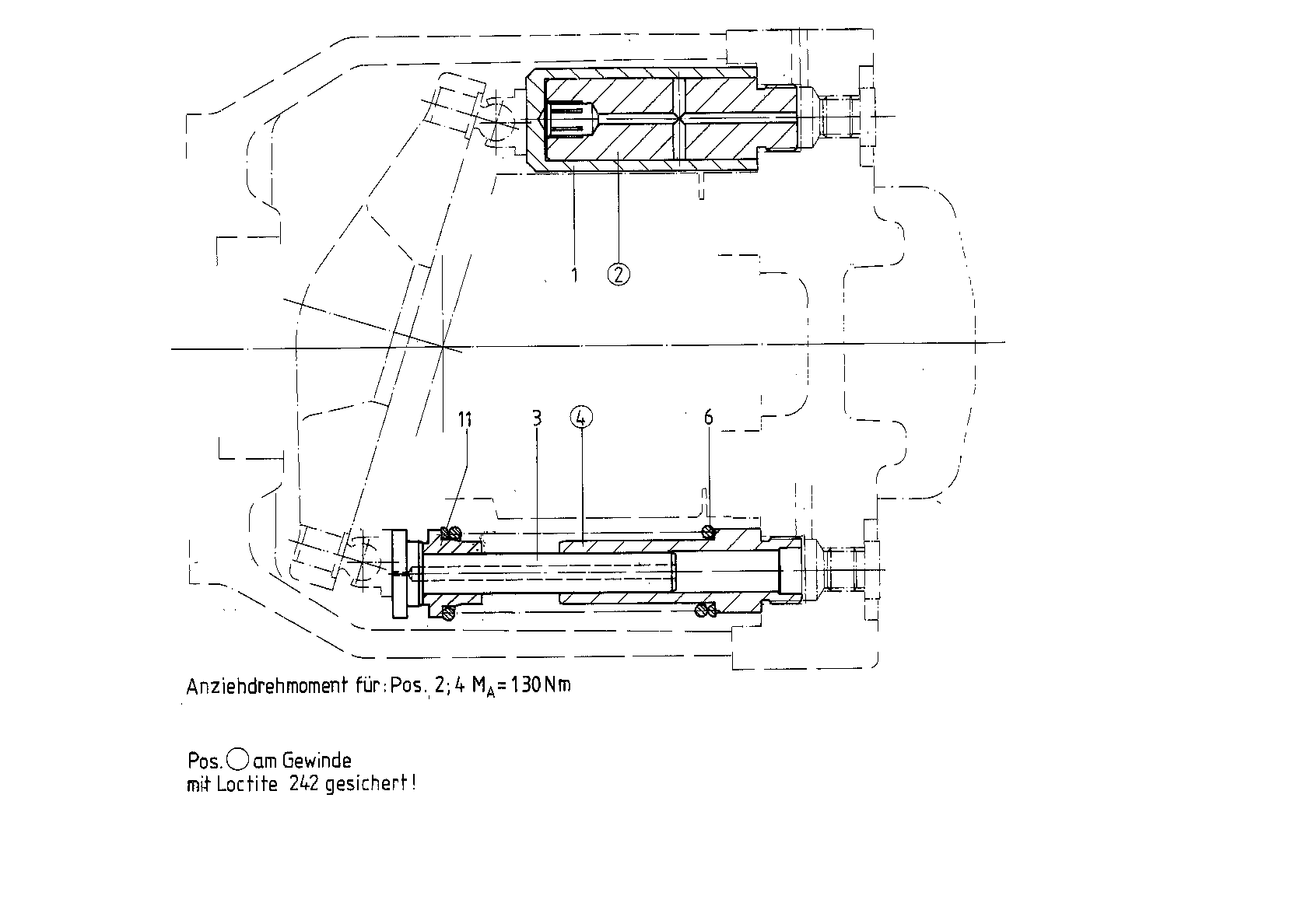

ADJUSTING PIECER910933202
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910916313 | ADJUSTING PISTON | 1 | |
| R910933199 | PISTON GUIDE | 1 | ||
| 3 | R910908935 | OPPOSED PISTON | 1 | |
| R910908936 | PISTON GUIDE | 1 | ||
| 6 | R910720305 | COMPRESSION SPRING | 1 | |
| 11 | R910933200 | SPRING DISK | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910916313 | ADJUSTING PISTON | 1 | |
| R910933199 | PISTON GUIDE | 1 | ||
| 3 | R910908935 | OPPOSED PISTON | 1 | |
| R910908936 | PISTON GUIDE | 1 | ||
| 6 | R910720305 | COMPRESSION SPRING | 1 | |
| 11 | R910933200 | SPRING DISK | 1 |
