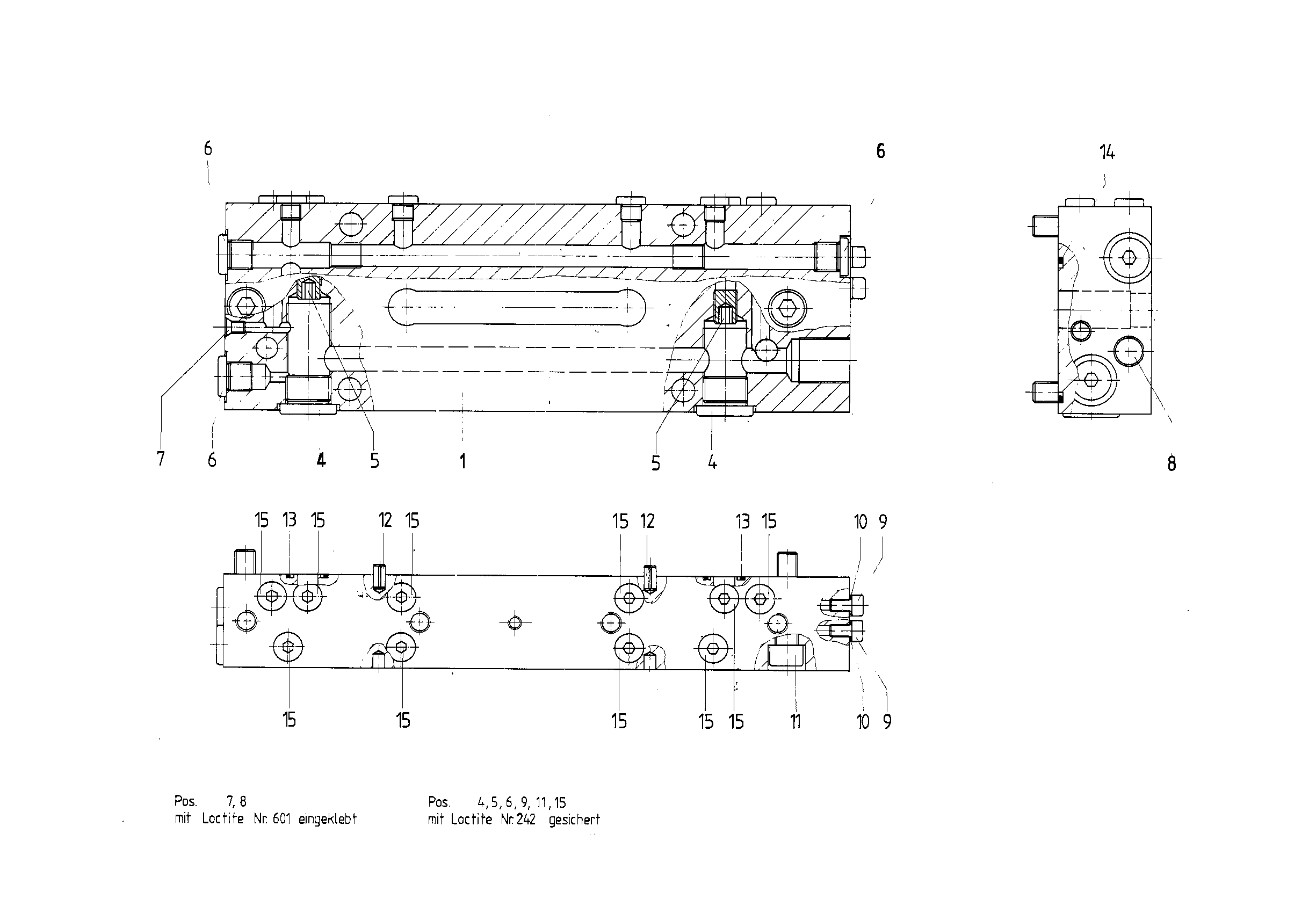

Assembly
INTERMEDIATE PLATER910933827
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916363 | INTERMEDIATE PLATE | 1 | ||
| R909156654 | SCREW PLUGD | 2 | ||
| R910538884 | SETSCREW | 2 | ||
| R909153930 | SCREW PLUGD | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| 9 | R910109258 | SOCKET HEAD CAP SCREW | 2 | |
| 10 | R910100196 | SEAL RINGD | 2 | |
| 11 | R910120308 | SOCKET HEAD CAP SCREW | 2 | |
| 12 | R900002645 | SLOTTED SPRING PIN | 2 | |
| 13 | R910302139 | O-RINGD | 4 | |
| R910919986 | O-RINGD | 1 | ||
| 15 | R909156649 | SCREW PLUGD | 10 |
