Assembly

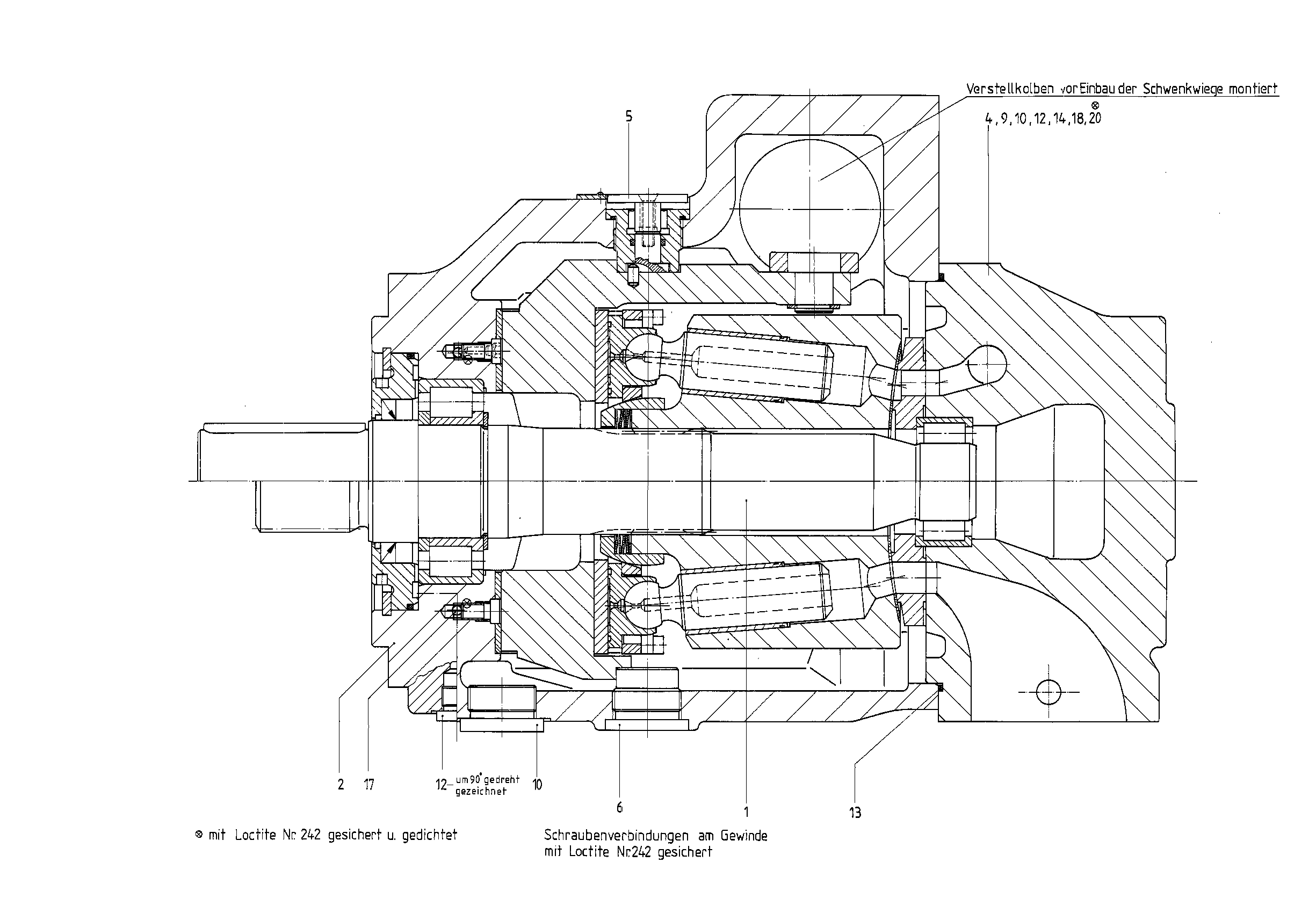

BASE UNITR910934218
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| — | ROTARY GROUP Assembly parts list →L | 1 | ||
| 4 | R910996953 | CONNECTION PLATE | 1 | |
| 5 | R910928485 | INDICATING DEVICE Assembly parts list →L | 1 | |
| R910798355 | STUD BOLT Assembly parts list →L | 1 | ||
| 9 | R910209228 | SOCKET HEAD CAP SCREW | 8 | |
| 10 | R909153861 | SCREW PLUGD | 4 | |
| 12 | R909151979 | SCREW PLUGD | 3 | |
| 13 | R910928484 | O-RINGD | 1 | |
| 14 | R910942134 | R-RINGD | 1 | |
| 17 | — | DOUBLE BREAK-OFF PLUG | 2 | |
| 18 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 20 | R910922276 | NOZZLE | 1 |
