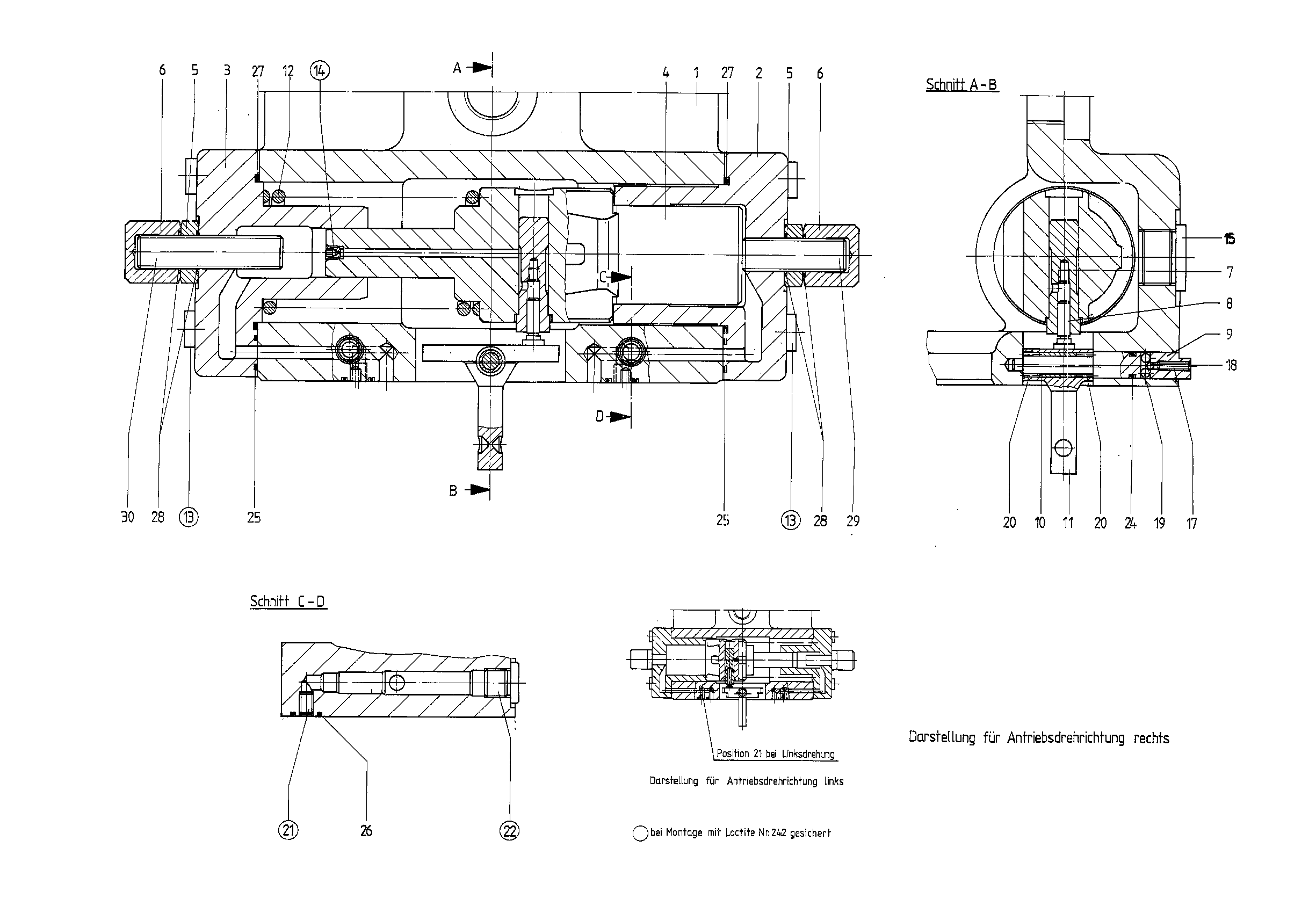

Assembly
ADJUSTING PIECER910936161
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910936163 | PUMP HOUSING | 1 | ||
| R910903736 | PISTON HOUSING | 1 | ||
| R910903728 | PISTON HOUSING | 1 | ||
| R902531045 | ADJUSTING PISTON | 1 | ||
| R910903326 | NUT | 2 | ||
| R910903327 | CAP NUT | 2 | ||
| R910904165 | BUSHING | 1 | ||
| R902541214 | PISTON PAD | 1 | ||
| R910904166 | ECCENTRIC PIN | 1 | ||
| R910903147 | SPACER SLEEVE | 1 | ||
| R910905244 | LEVER | 1 | ||
| R910943111 | COMPRESSION SPRING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 8 | ||
| R910836761 | NOZZLE | 1 | ||
| R909153365 | SCREW PLUG | 1 | ||
| R910977212 | SETSCREW | 1 | ||
| R910199001 | BALL | 1 | ||
| R910150282 | BALL | 2 | ||
| R910903156 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| R910118664 | SETSCREW | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R910514543 | O-RING | 1 | ||
| R910522449 | O-RING | 2 | ||
| R910942813 | R-RING | 2 | ||
| R902650321 | R-RING | 2 | ||
| R910827916 | O-RING | 4 | ||
| R902519544 | STUD BOLT | 1 | ||
| R902519543 | STUD BOLT | 1 |
