Assembly

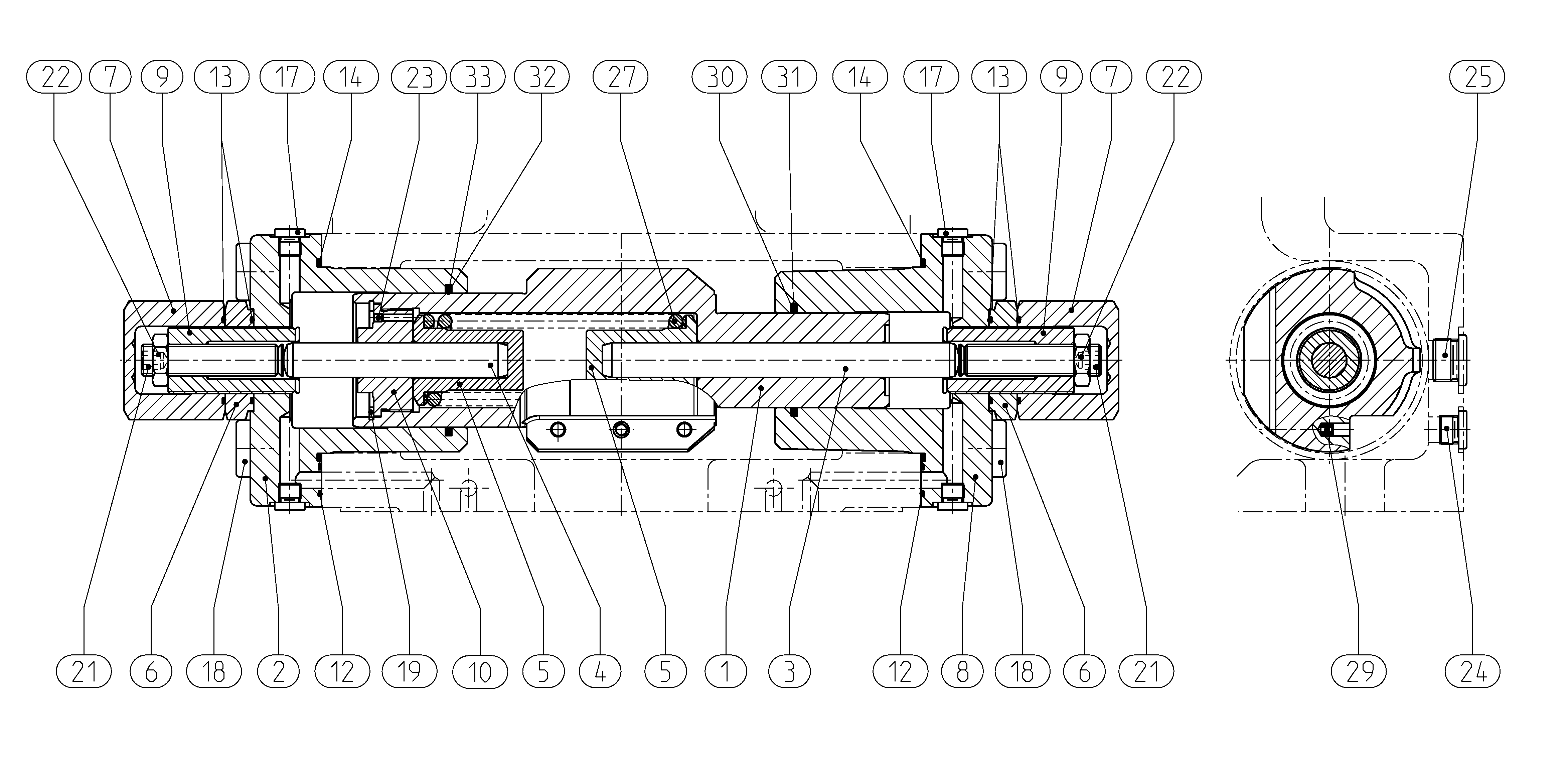

ADJUSTING PIECER910937917
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902530762 | ADJUSTING PISTON | 1 | ||
| R910937849 | PISTON HOUSING | 1 | ||
| R910937892 | BOLT | 1 | ||
| R910937891 | BOLT | 1 | ||
| R910937893 | SPRING DISK | 2 | ||
| R910937890 | NUT | 2 | ||
| R910937889 | CAP NUT | 2 | ||
| R910937850 | PISTON HOUSING | 1 | ||
| R902519617 | STOP SCREW | 2 | ||
| R902519847 | PISTON GUIDE | 1 | ||
| R910514985 | O-RING | 2 | ||
| R910534528 | O-RING | 4 | ||
| R910937919 | O-RING | 2 | ||
| R909151979 | SCREW PLUG | 8 | ||
| R910922408 | SOCKET HEAD CAP SCREW | 8 | ||
| R910106054 | RETAINING RING | 1 | ||
| R902519565 | STUD BOLT | 2 | ||
| R910105333 | HEXAGON NUT | 2 | ||
| R909083489 | SETSCREW | 1 | ||
| R909153815 | SCREW PLUG | 2 | ||
| R909153365 | SCREW PLUG | 1 | ||
| R910936652 | COMPRESSION SPRING | 1 | ||
| R910933995 | NUT | 2 | ||
| R902650982 | DUMMY | 1 | ||
| R910513709 | O-RING | 1 | ||
| R902650983 | DUMMY | 1 | ||
| R910672017 | O-RING | 1 |
