Assembly

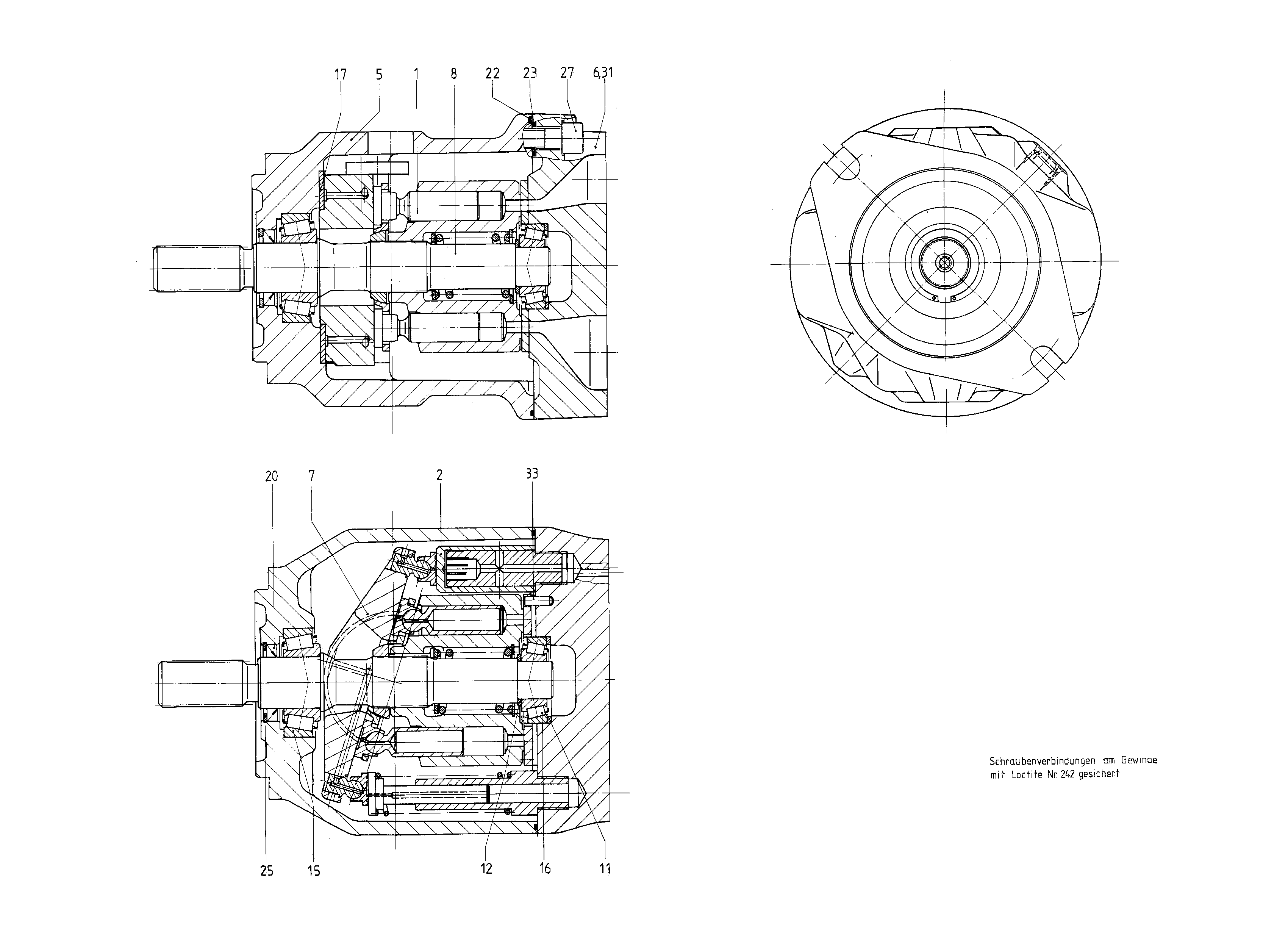

BASE UNITR910939891
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910911929 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910873 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910962677 | PUMP HOUSING | 1 | ||
| R902411709 | CONNECTION PLATE | 1 | ||
| R910960947 | SWASH PLATE | 1 | ||
| R902412019 | DRIVE SHAFT | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 1 | ||
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
