Assembly
COVERR910939966

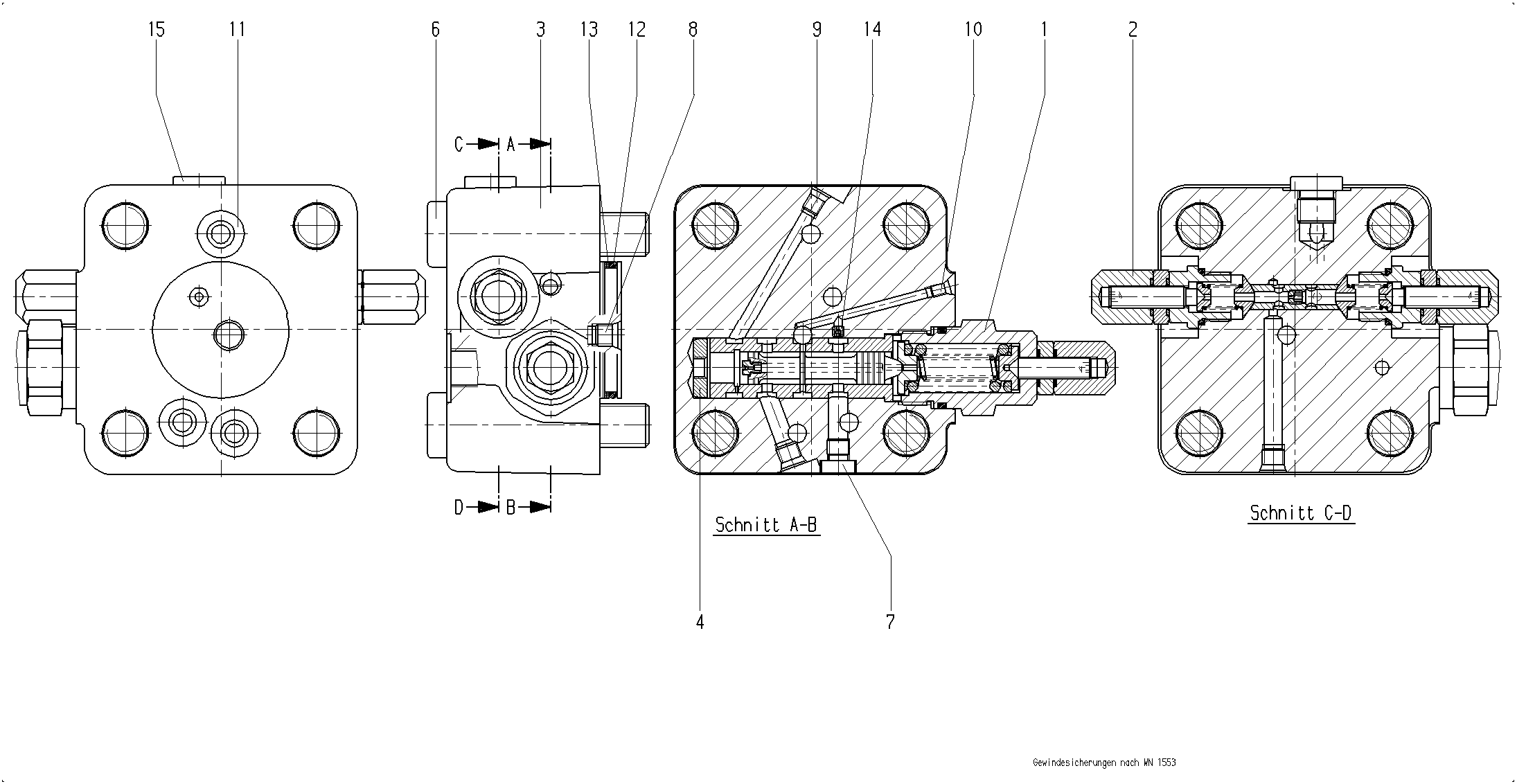

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910947358 | VALVE INSERT | 1 | ||
| R910930690 | SWIVEL TIME LIMITING VALVE Assembly parts list →L | 1 | ||
| R910930674 | COVER | 1 | ||
| R910960086 | STOP DISC | 1 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R900078091 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910523003 | O-RINGD | 3 | ||
| R910977094 | O-RINGD | 1 | ||
| R910929791 | BACKUP RINGD | 1 | ||
| R910921703 | NOZZLE | 1 | ||
| R909151979 | SCREW PLUGD | 1 |
