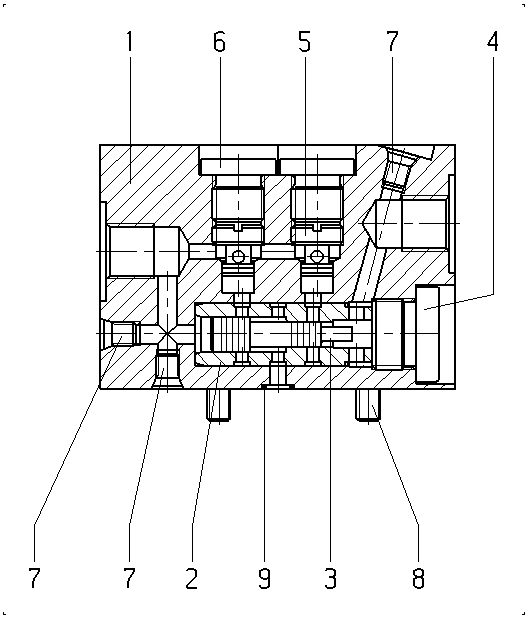

Assembly
DIAPHRAGM SEALR910940377
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910940379 | HOUSING | 1 | ||
| R909412333 | CONTROL SLEEVE | 1 | ||
| R909412334 | CONTROL PISTON | 1 | ||
| R909412335 | SCREW PLUG | 1 | ||
| R910940380 | CHECK VALVE | 2 | ||
| R913011609 | SCREW PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910120189 | SOCKET HEAD CAP SCREW | 4 | ||
| R910514497 | O-RING | 1 |
