Assembly

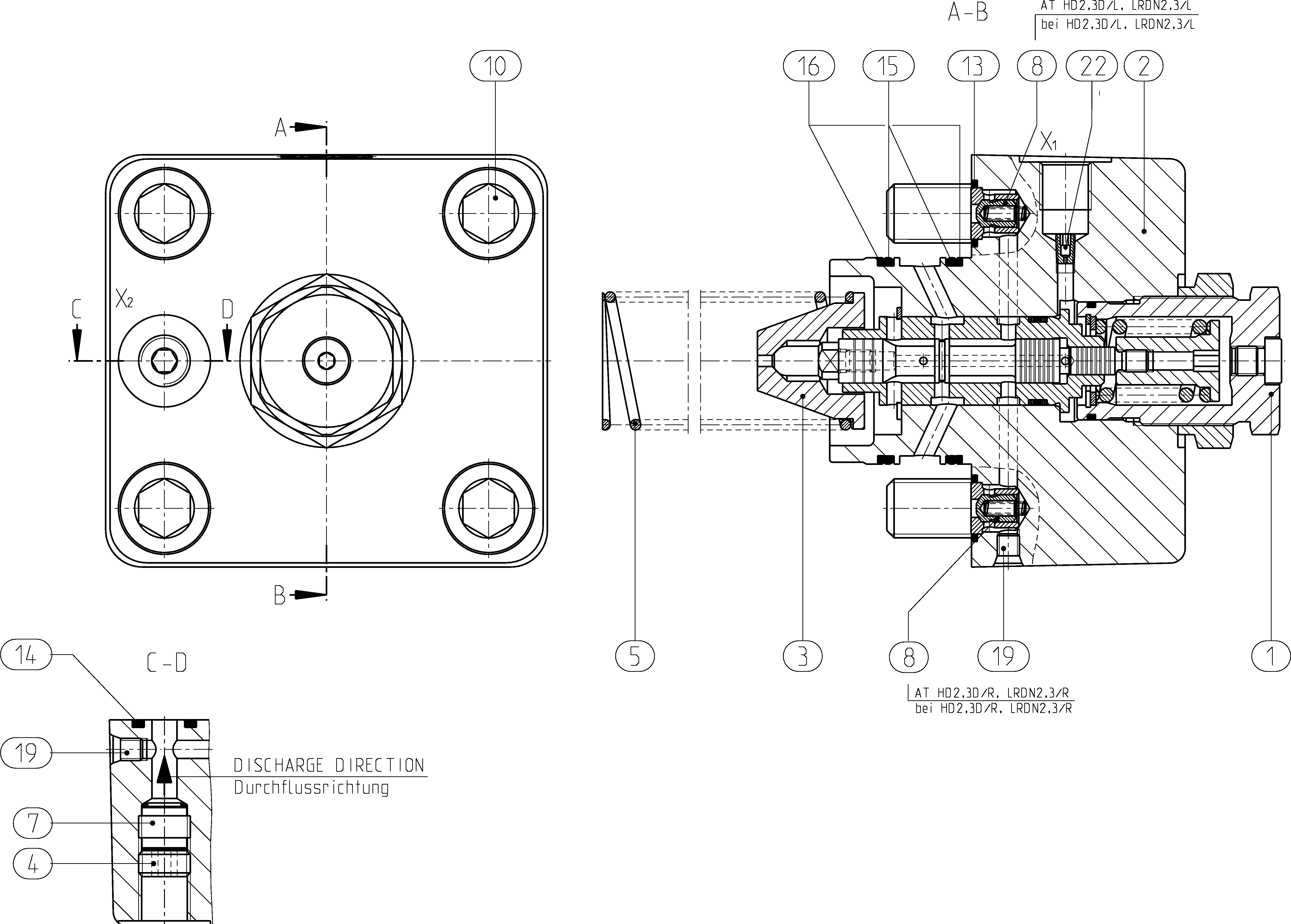

CONTROL PARTR910940758
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910935586 | VALVE INSERT | 1 | ||
| R910939086 | CONTROL HOUSING | 1 | ||
| R910939087 | SPRING DISK | 1 | ||
| R910931747 | THREADED RING | 1 | ||
| R910939507 | COMPRESSION SPRING | 1 | ||
| R910930945 | CHECK VALVE | 1 | ||
| R910974659 | HY-CHECK VALVE | 1 | ||
| R909153934 | SOCKET HEAD CAP SCREW | 4 | ||
| R910415537 | O-RING | 2 | ||
| R910523003 | O-RING | 4 | ||
| R910977031 | O-RING | 2 | ||
| R910939130 | BACKUP RING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910923856 | NOZZLE | 1 |
