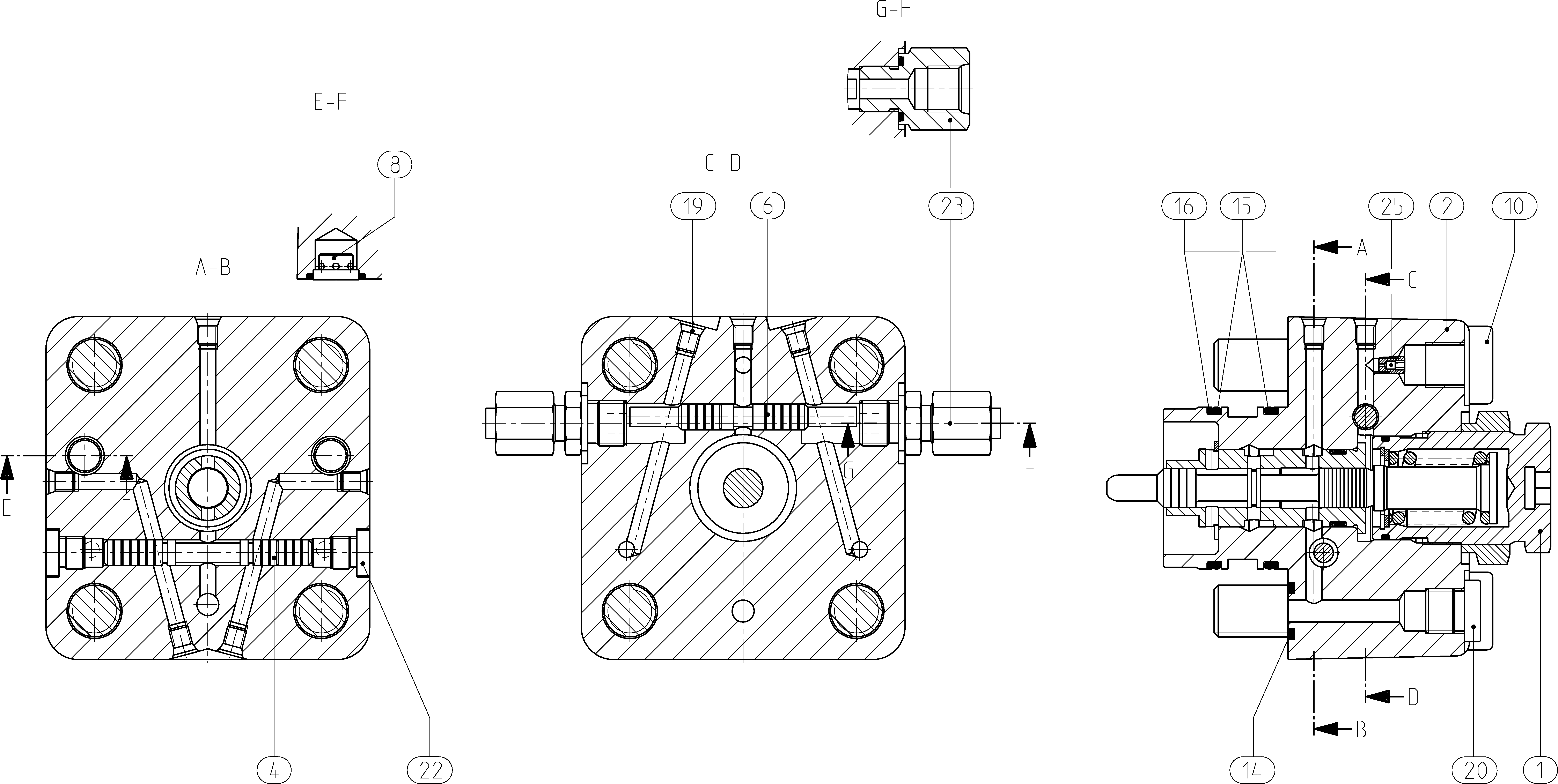

Assembly
CONTROL PARTR910941421
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910935585 | VALVE INSERT | 1 | ||
| R910941423 | CONTROL HOUSING | 1 | ||
| R910930951 | SLIDE | 1 | ||
| R910941424 | STOP PISTON | 1 | ||
| R910974659 | HY-CHECK VALVE | 2 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| 13 | R910415537 | O-RINGD | 2 | |
| R910523003 | O-RINGD | 3 | ||
| R910977094 | O-RINGD | 2 | ||
| R910929791 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R910984004 | ADAPTER Assembly parts list →L | 2 | ||
| R910923856 | NOZZLE | 1 |
