Assembly

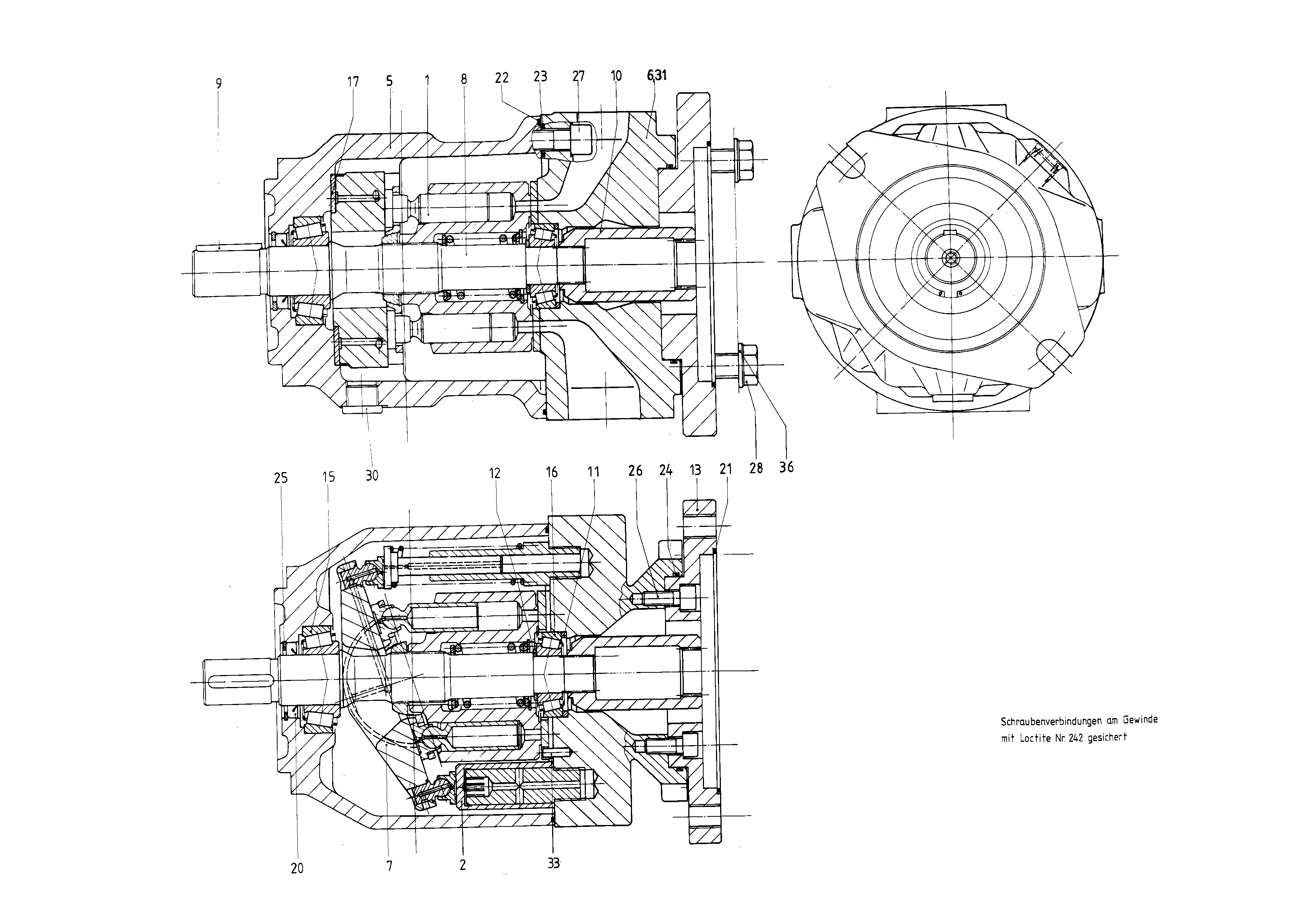

BASE UNITR910944464
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910956007 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910910873 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| R910910663 | PUMP HOUSING | 1 | ||
| 6 | R902429935 | CONNECTION PLATE | 1 | |
| R910961017 | SWASH PLATE Assembly parts list →L | 1 | ||
| 8 | R910987680 | DRIVE SHAFT | 1 | |
| 9 | R910902888 | PARALLEL KEY | 1 | |
| R910923847 | SPLINED COUPLING | 1 | ||
| 12 | R910939005 | ADJUSTMENT SHIM | 1 | |
| 13 | R910923846 | INTERMEDIATE FLANGE | 1 | |
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 1 | ||
| 21 | R910432962 | O-RINGD | 1 | |
| R910720194 | O-RINGD | 1 | ||
| R913052118 | R-RINGD | 4 | ||
| 24 | R910112291 | O-RINGD | 1 | |
| R910941918 | RETAINING RING | 1 | ||
| 26 | R910296651 | SOCKET HEAD CAP SCREW | 4 | |
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
