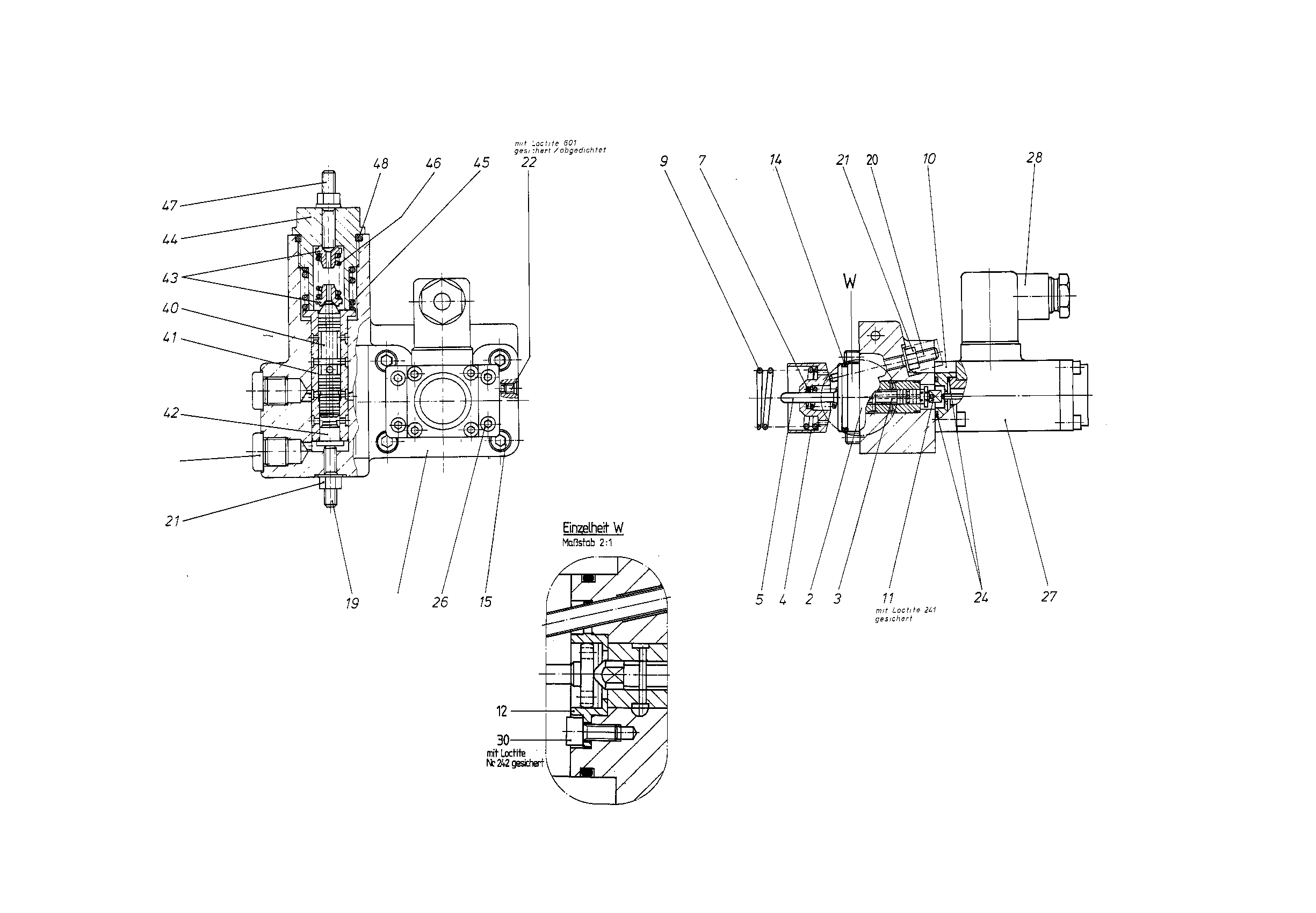

Assembly
CONTROL PARTR910944715
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910801770 | CONTROL HOUSING | 1 | ||
| R909412246 | CONTROL SLEEVE | 1 | ||
| 3 | R909412266 | CONTROL PISTON | 1 | |
| R910801595 | ADJUSTING BUSHING | 1 | ||
| 5 | R909418761 | SPRING BOLT | 1 | |
| R910801625 | COMPRESSION SPRING | 1 | ||
| R910801627 | COMPRESSION SPRING | 1 | ||
| R910801583 | INTERMEDIATE PLATE | 1 | ||
| 11 | R910801584 | STOP SCREW | 1 | |
| 12 | R910924892 | STOP BUSHING | 1 | |
| 14 | R910585238 | O-RINGD | 1 | |
| R910109509 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R909153930 | SCREW PLUGD | 2 | |
| R909152427 | SETSCREW | 1 | ||
| R910545422 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 3 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 4 | |
| R910525618 | O-RINGD | 2 | ||
| R910109215 | SOCKET HEAD CAP SCREW | 4 | ||
| R910803232 | SWITCHING SOLENOID Assembly parts list →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R910119512 | SOCKET HEAD CAP SCREW | 4 | ||
| R902248587 | CONTROL PISTON | 1 | ||
| 41 | R902248524 | CONTROL SLEEVE | 1 | |
| 42 | R909419893 | BOLT | 1 | |
| R909075975 | SPRING DISK | 2 | ||
| 44 | R910801804 | SCREW PLUG | 1 | |
| R909414209 | COMPRESSION SPRING | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| 47 | R909154865 | SETSCREW | 1 | |
| R910531243 | O-RINGD | 1 |
