Assembly

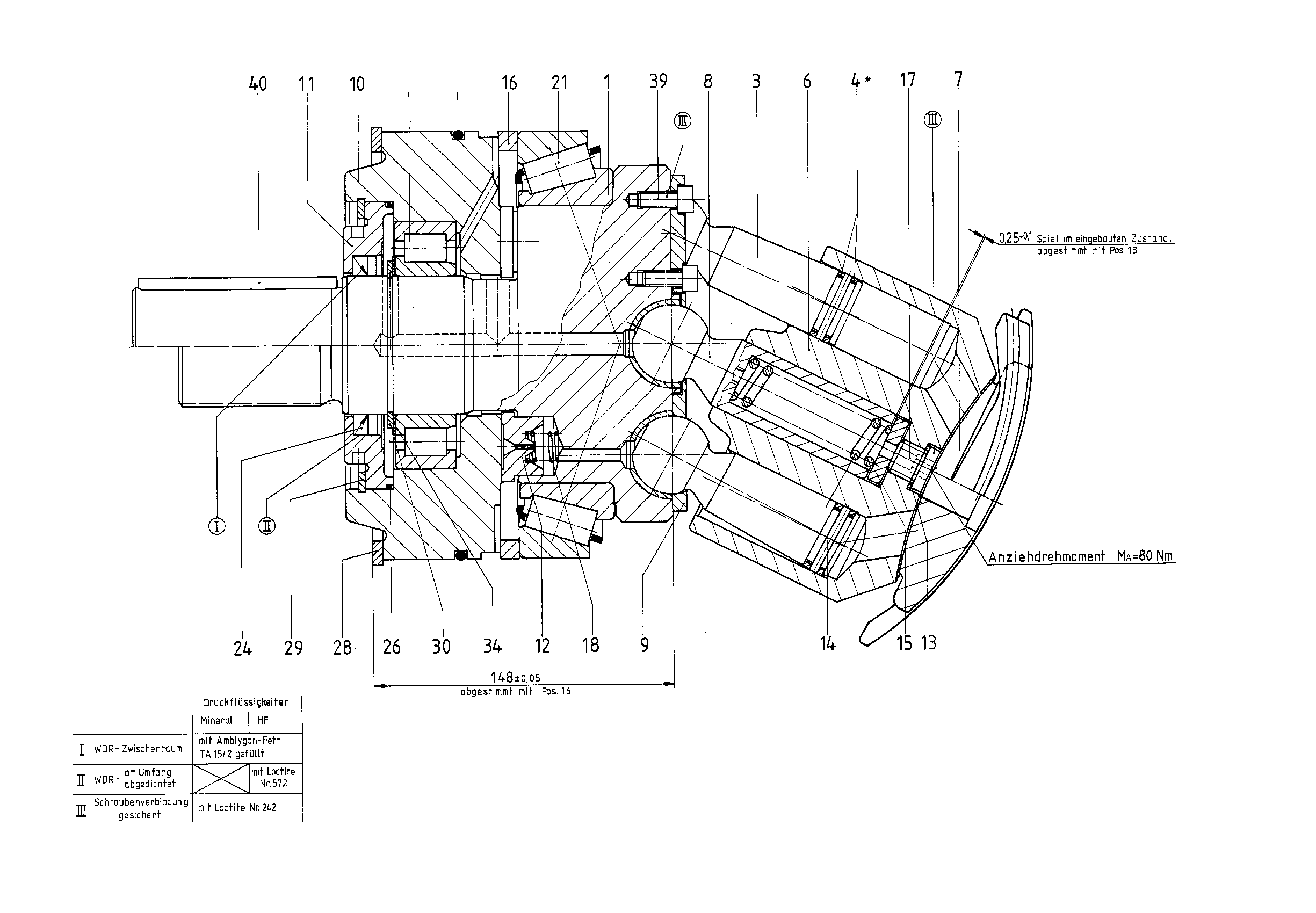

ROTARY GROUPR910945510
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902512799 | DRIVE FLANGE Assembly parts list →L | 1 | ||
| R902567608 | PISTON | 7 | ||
| R902493260 | CYLINDER | 1 | ||
| R902414875 | CONTROL LENS Assembly parts list →L | 1 | ||
| R902537507 | THRUST JOURNAL | 1 | ||
| R902556371 | RETAINING PLATE | 1 | ||
| R910937898 | BEARING RING | 1 | ||
| R910967753 | SEALING FLANGE | 1 | ||
| R910742465 | PAD | 7 | ||
| R910936002 | SHIM RING | 1 | ||
| R910933287 | COMPRESSION SPRING | 1 | ||
| R910933031 | WASHER | 1 | ||
| R902416438 | TUNING KIT | 1 | ||
| R910933066 | SPACER SCREW | 1 | ||
| R910717207 | COMPRESSION SPRING | 7 | ||
| R902650817 | TAPERED-ROLLER BEARING | 1 | ||
| 22 | R910914860 | CYL. ROLLER BEARING | 1 | |
| R910966913 | SHAFT SEALING RINGD | 1 | ||
| 25 | R910444642 | O-RINGD | 1 | |
| R910112399 | O-RINGD | 1 | ||
| 27 | R910080616 | O-RING | 1 | |
| R910513202 | RETAINING RING | 1 | ||
| R910106135 | RETAINING RING | 1 | ||
| R910083895 | RETAINING RING | 1 | ||
| R910677493 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| R910103586 | PARALLEL KEY | 1 |
