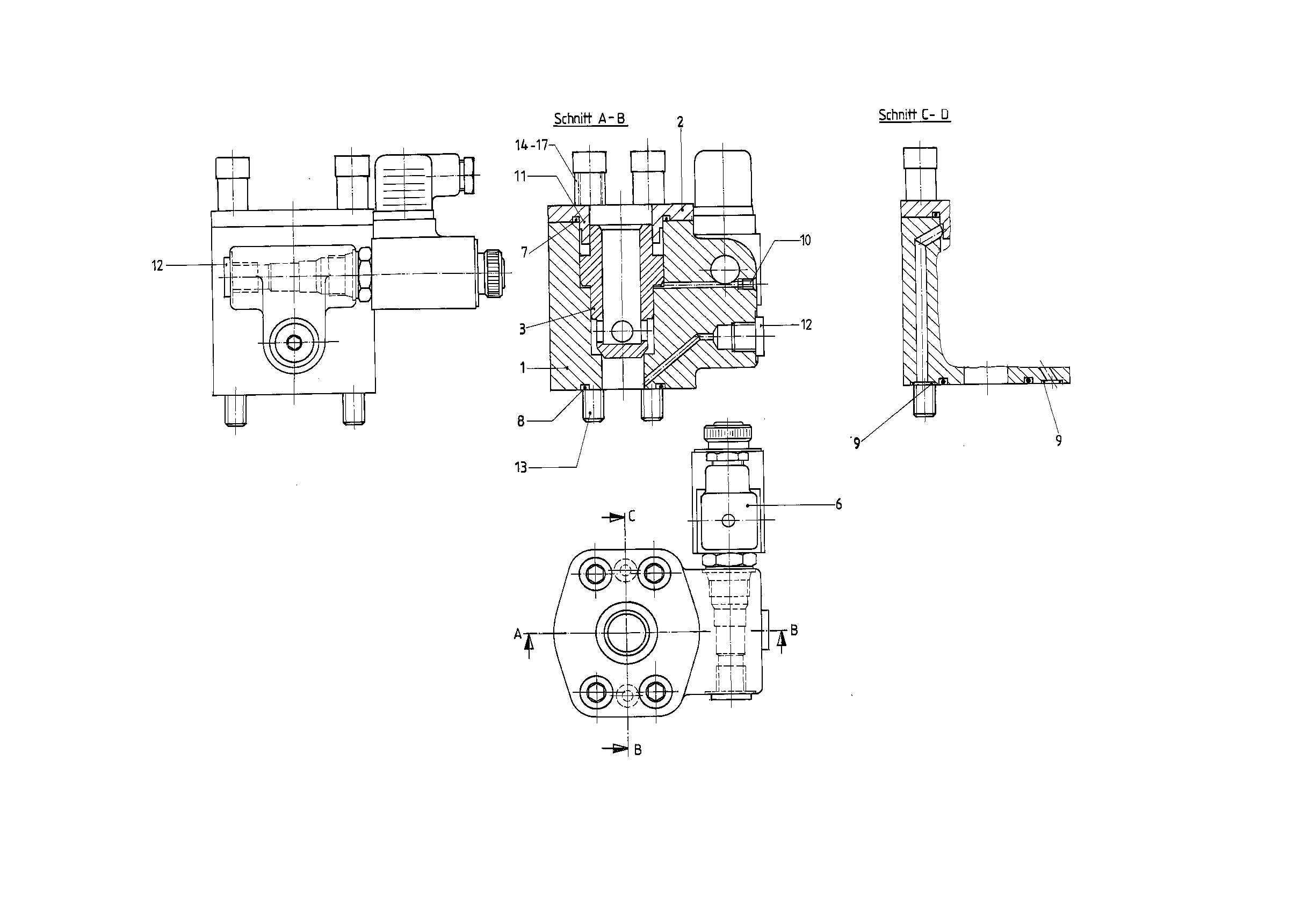

Assembly
DUMMYR910945967
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910945965 | HOUSING | 1 | ||
| R910917237 | COVER | 1 | ||
| 3 | R910910265 | VALVE SPOOL | 1 | |
| 6 | R902453750 | SEAT VALVE Assembly parts list →L | 1 | |
| 7 | R910800914 | O-RINGD | 1 | |
| 8 | R910103896 | O-RINGD | 1 | |
| 9 | R910513393 | O-RINGD | 2 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R910119202 | SOCKET HEAD CAP SCREW | 4 | ||
| 14 | R910947700 | DISTANCE PIPE | 4 |
