Assembly

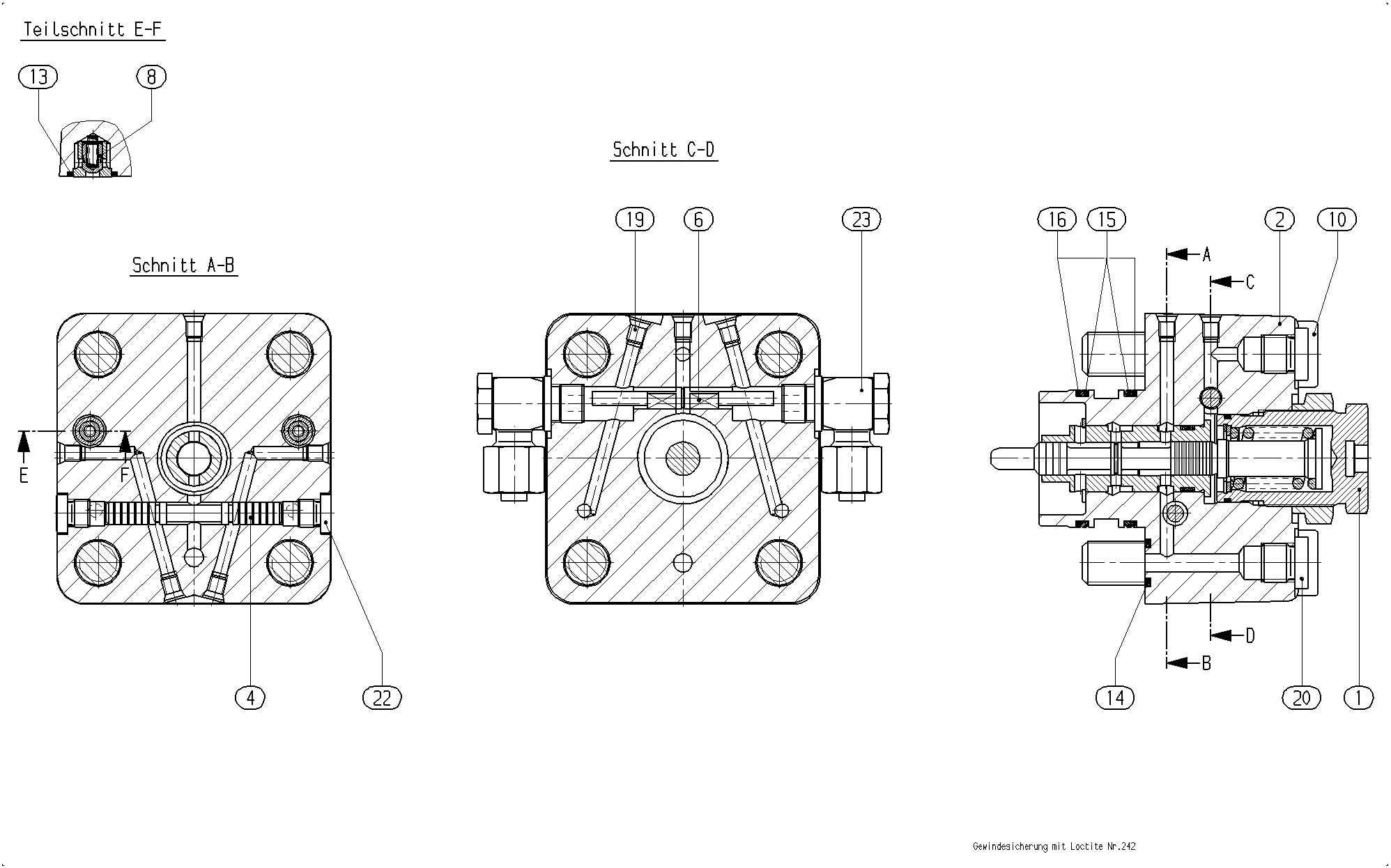

CONTROL PARTR910946151
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910935585 | VALVE INSERT | 1 | ||
| R910931644 | CONTROL HOUSING | 1 | ||
| R910930951 | SLIDE | 1 | ||
| R910020451 | VALVE SPOOL | 1 | ||
| R910974659 | HY-CHECK VALVE | 2 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R910415537 | O-RINGD | 2 | ||
| R910523003 | O-RINGD | 3 | ||
| R910977094 | O-RINGD | 2 | ||
| R910929791 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R910946156 | THREADED FASTENER | 2 |
