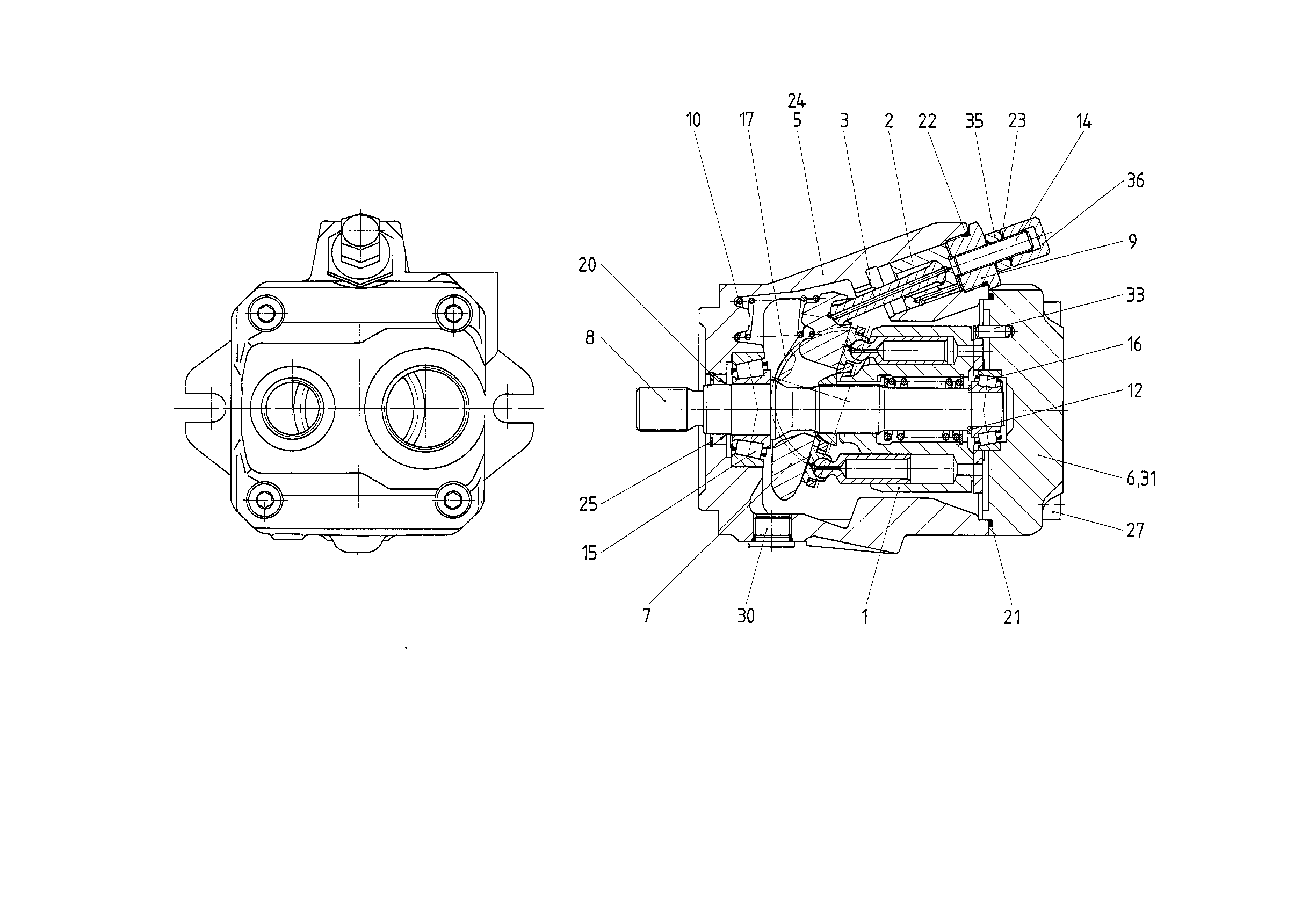

Assembly
BASE UNITR910947347
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902439596 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910928600 | ADJUSTING PISTON | 1 | |
| R902439967 | PISTON ROD | 1 | ||
| R910947323 | PUMP HOUSING | 1 | ||
| 6 | R910947319 | CONNECTION PLATE | 1 | |
| R902437702 | SWASH PLATE | 1 | ||
| 8 | R902417366 | DRIVE SHAFT | 1 | |
| 9 | R902516339 | SCREW PLUG | 1 | |
| R910947314 | COMPRESSION SPRING | 1 | ||
| 12 | R902400789 | ADJUSTMENT SHIM | 1 | |
| 14 | R902532354 | STOP SCREW | 1 | |
| 15 | R902438109 | TAPERED-ROLLER BEARING | 1 | |
| 16 | R902438110 | TAPERED-ROLLER BEARING | 1 | |
| 17 | R902410506 | BEARING SHELL | 2 | |
| 20 | R910794325 | SHAFT SEALING RINGD | 1 | |
| R913052046 | O-RINGD | 1 | ||
| 23 | R910514691 | O-RINGD | 2 | |
| 24 | R910942134 | R-RINGD | 1 | |
| R902403815 | RETAINING RING | 1 | ||
| R910119091 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 35 | R910998240 | NUT | 1 | |
| R910904041 | CAP NUT | 1 |
