Assembly

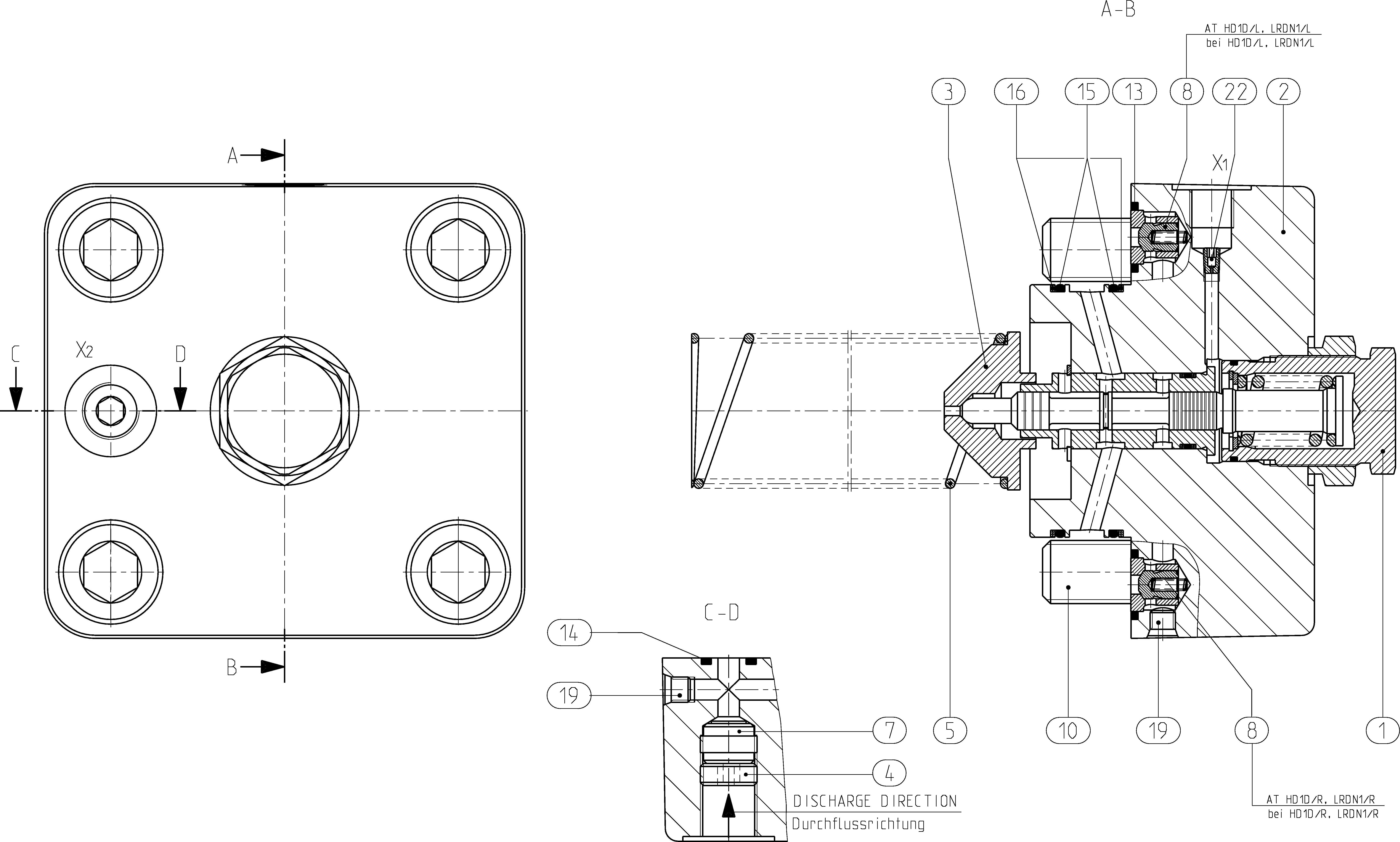

CONTROL PARTR910948523
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910935582 | VALVE INSERT | 1 | ||
| R910947817 | CONTROL HOUSING | 1 | ||
| R910947042 | SPRING DISK | 1 | ||
| R910936228 | THREADED RING | 1 | ||
| R910947823 | DUMMY | 1 | ||
| R910931879 | CHECK VALVE | 1 | ||
| R910974764 | HY-CHECK VALVE | 1 | ||
| R910705799 | SOCKET HEAD CAP SCREW | 4 | ||
| R910513482 | O-RING | 2 | ||
| R910523003 | O-RING | 4 | ||
| R910959103 | O-RING | 2 | ||
| R910948533 | BACKUP RING | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910923856 | NOZZLE | 1 |
